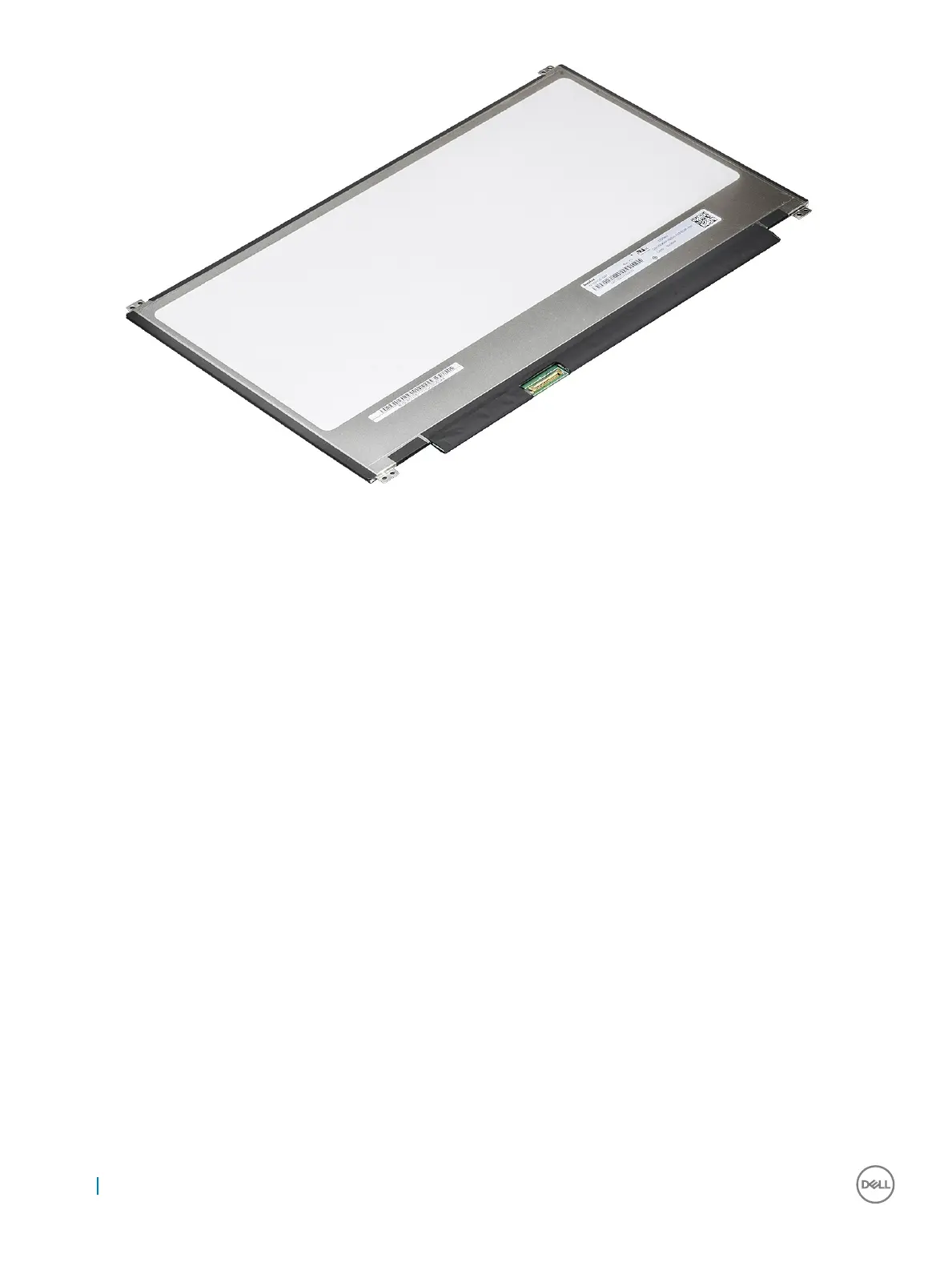

Installing the display panel
1 Connect the eDP cable to the connector.
2 Ax the adhesive tape to secure the eDP cable.
3 Replace the display panel to align with the screw holders on the display assembly.
4 Replace the four screws to secure the display panel to the display assembly.
5 Install the:
a display bezel
b display assembly
c WLAN card
d base cover
6 Follow the procedure in After working inside your computer.
Display hinges
Removing display hinge
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a base cover
b WLAN card
c display assembly
d display bezel
e display panel
3 To remove the display hinge:
a Remove the eight M2.5 x 4 screws that secure the display hinge to the display assembly [1].
b Lift the display hinge away from the display assembly [2].
32
