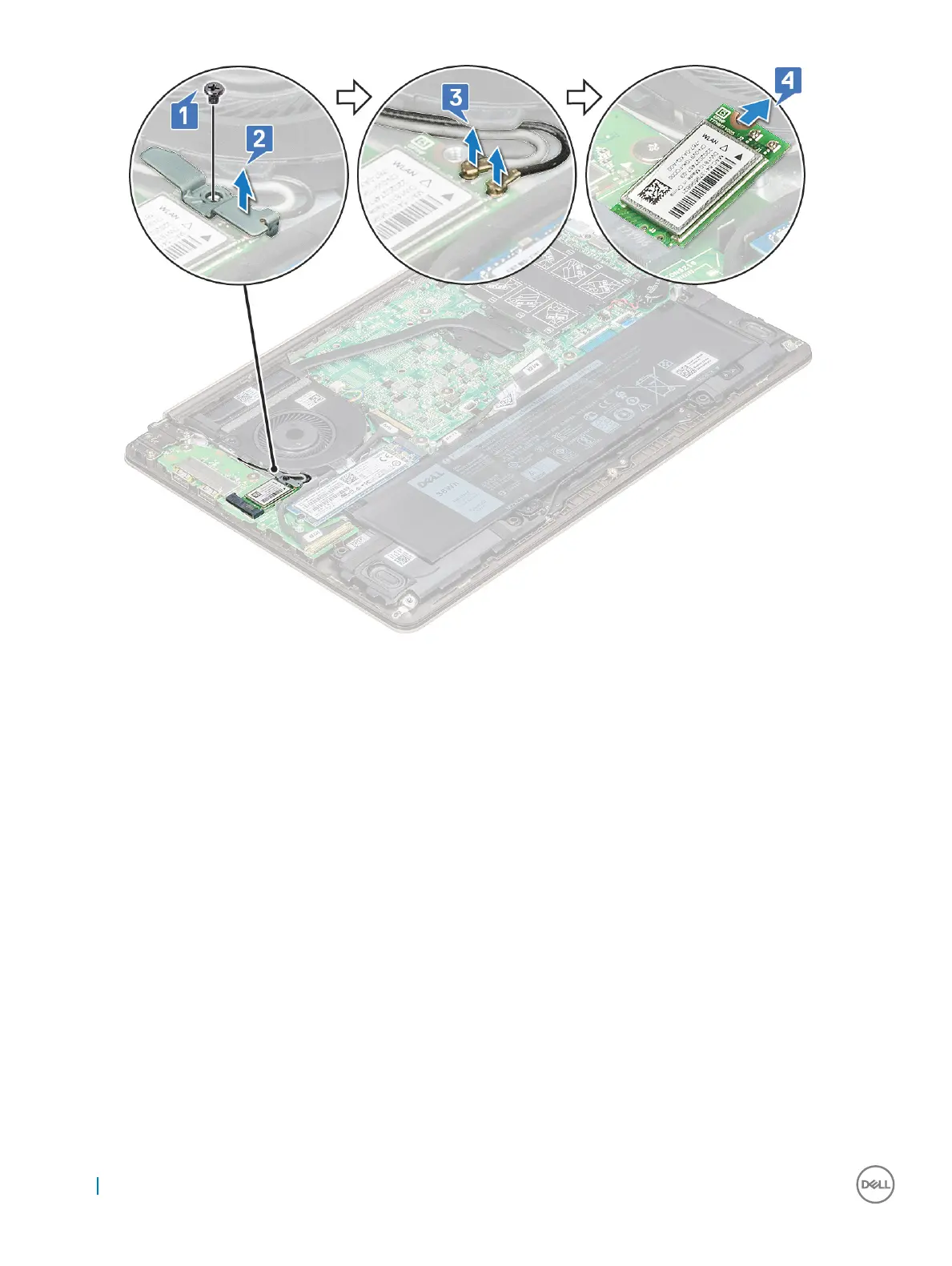

Installing the WLAN card
1 Insert the WLAN card into the slot on the system.
2 Connect the WLAN cables to the connectors on the WLAN Card.
3 Place the bracket and replace the M2.0 x 3 screw to secure it to the system.
4 Install the base cover.
5 Follow the procedure in After working inside your computer.
System fan
Removing the system fan
1 Follow the procedure in Before working inside your computer.
2 Remove the base cover.
3 To remove the system fan:
a Disconnect the system fan cable from the connector on the system board.
16
Removing and installing components
