Input Output board
Removing the Input Output board
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a base cover
b solid-state drive(SSD)
c WLAN card

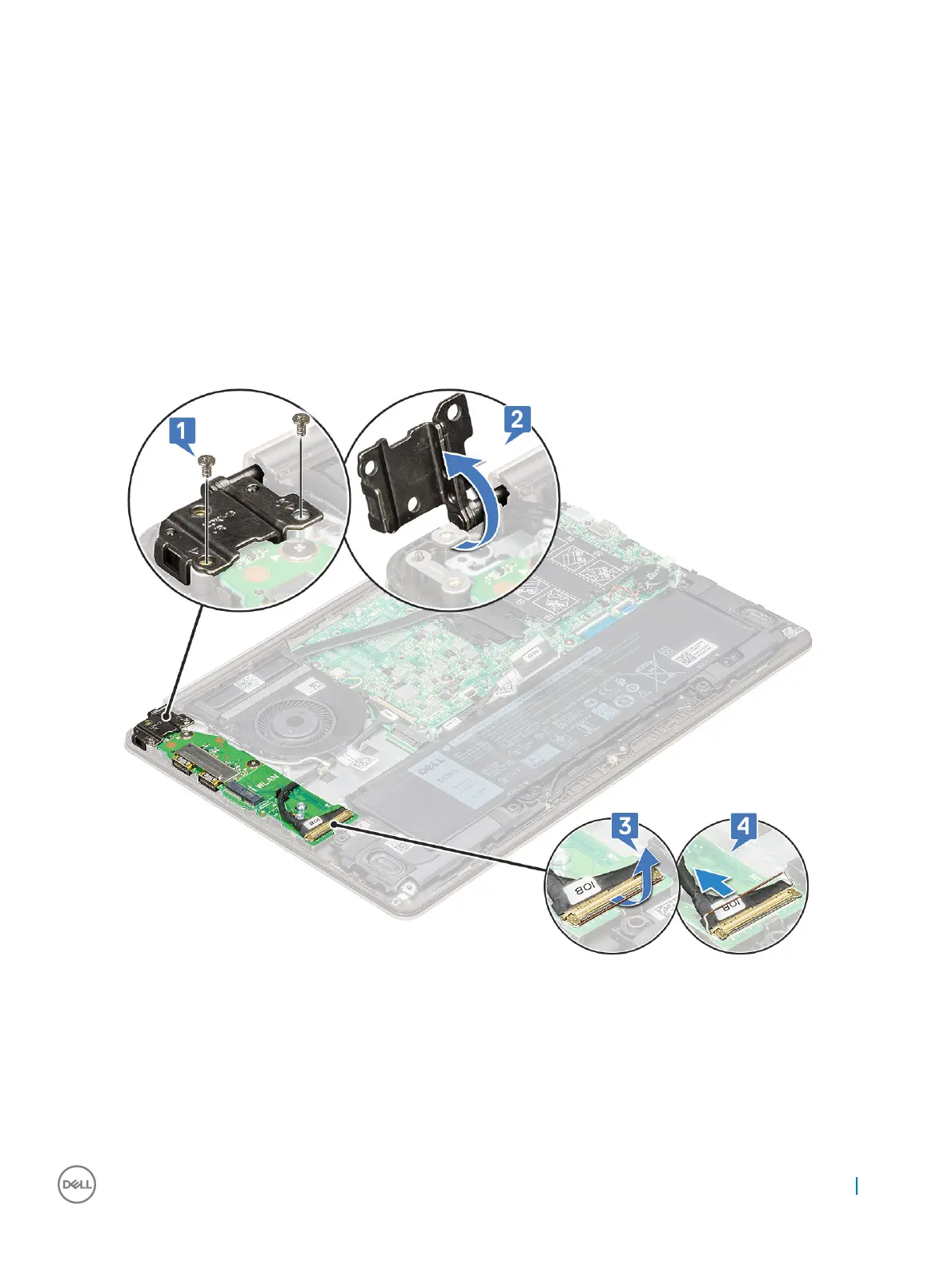

3 To remove the Input Output(I/O) board:
a Remove the two M2.5 x 6 screws that secure the left display hinge to the system [1].
b Lift the hinge [2].
c Lift the latch and, disconnect the I/O cable from the connector on the I/O board [3,4].
d Remove the two M2.0 x 2 screws that secure the I/O board to the system [1].
e Lift the I/O board away from the system.
Removing and installing components
19
