c speaker
d touchpad
e system fan
f heat sink
g solid state drive(SSD)
h WLAN card
i Input output(I/O) board
j power button
k system board
l display assembly

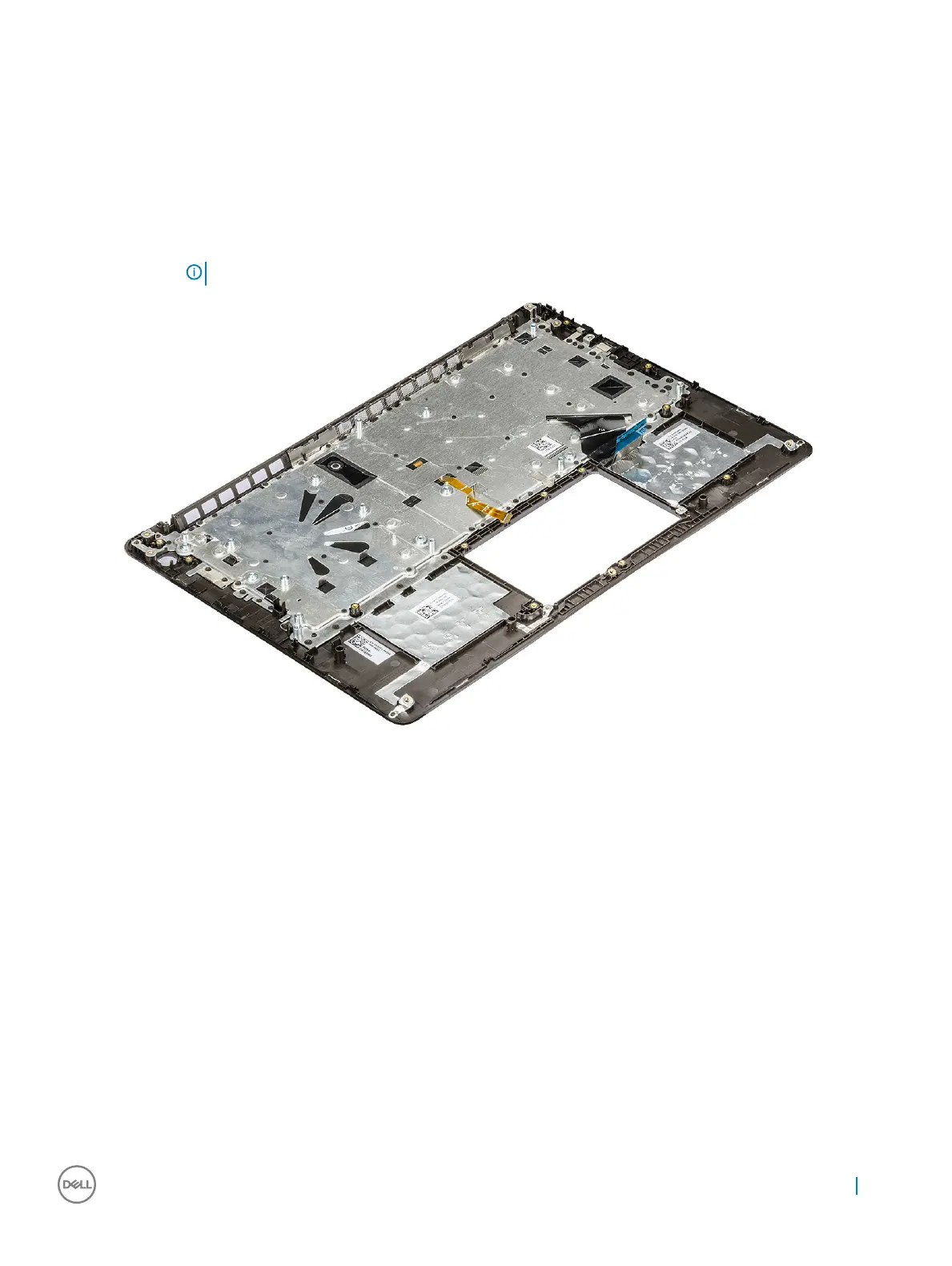

NOTE: After the removal of all the components the component that you are left with is the palm rest
3 Install the following components on the new palm rest:
a display assembly
b system board
c powered button
d Input Output(I/O) board
e WLAN card
f solid state drive(SSD)
g heat sink
h system fan
i touchpad
j speaker
k battery
l base cover
4 Follow the procedure in After working inside your computer.
eDP cable
Removing and installing components
35
