Removing the eDP cable
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a base cover
b WLAN card
c display assembly
d display bezel
e camera
f display panel
g display hinge

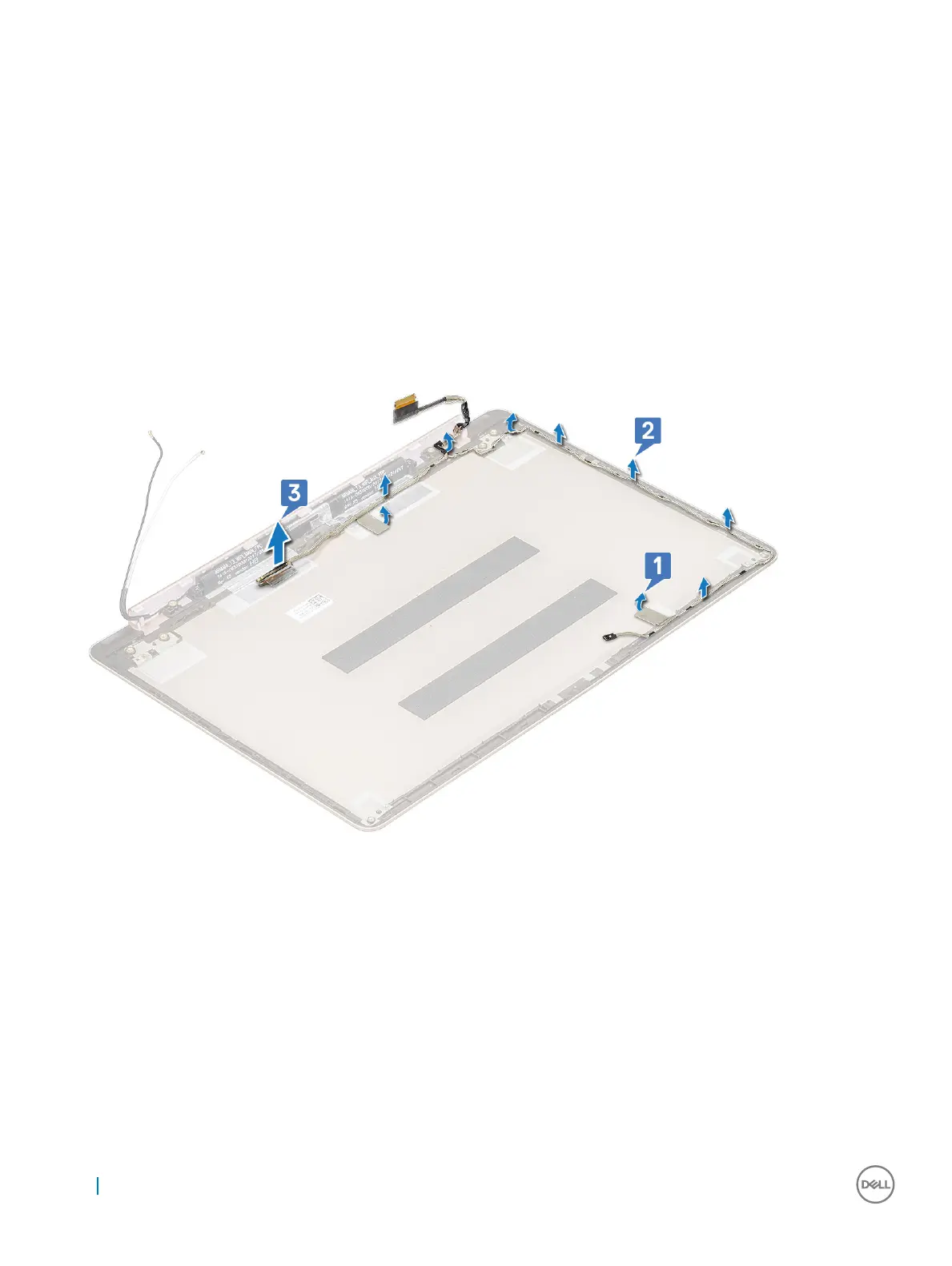

3 Peel the adhesive and unroute the eDP cable [1,2].
4 Peel the adhesive from the eDP cable connector and disconnect the cable from the display [3].
Installing the eDP cable
1 Place the eDP cable on the display panel.
2 Route the eDP cable through the routing channel.
3 Connect the eDP cable to the connector and stick the adhesive.
4 Install the:
a display hinge
b display panel
c camera
d display bezel
e display assembly
f WLAN card
36
Removing and installing components
