Removing and installing components
Base cover
Removing the base cover
1 Follow the procedure in Before working inside your computer.
2 To remove the base cover:

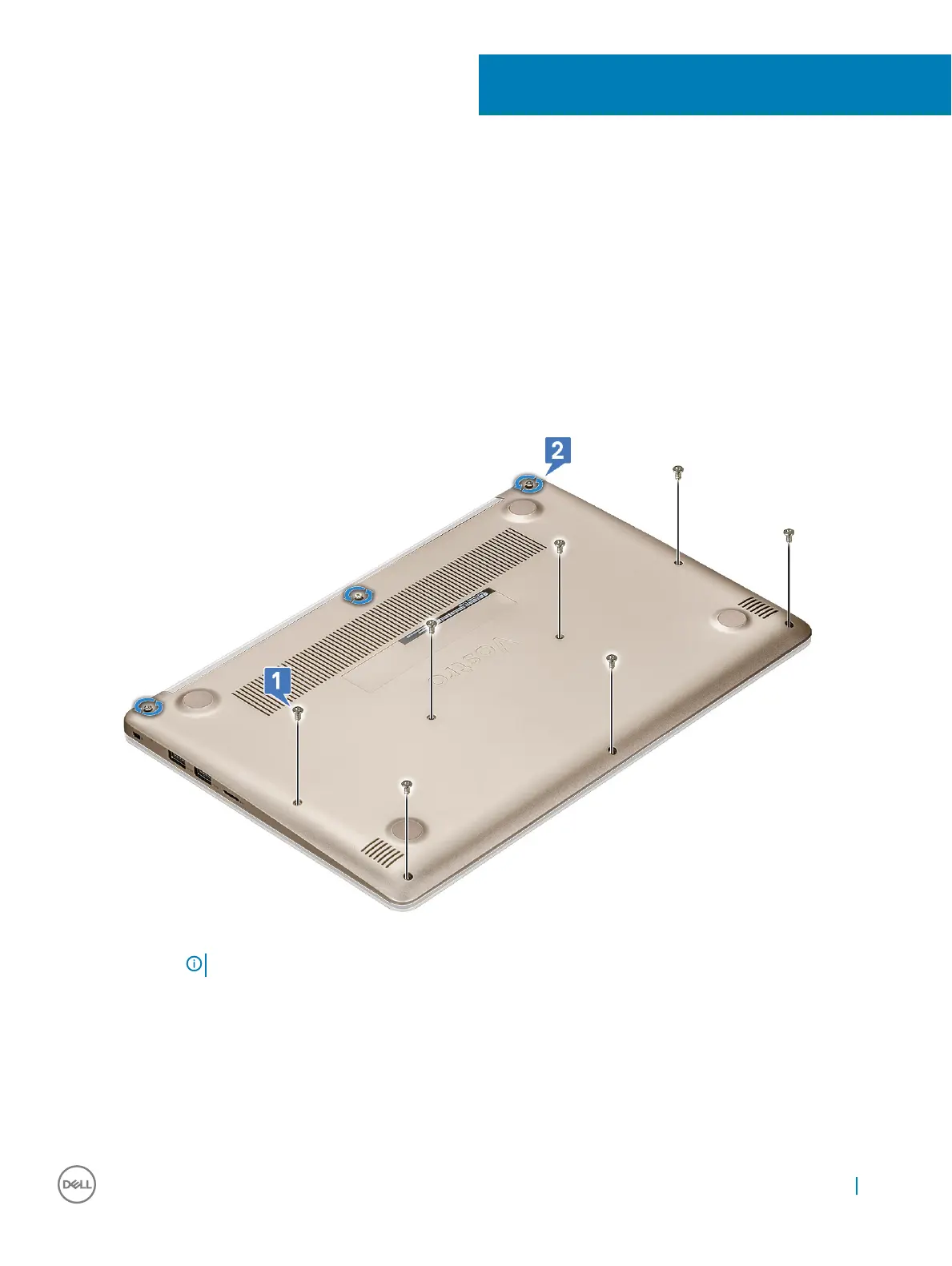

a Remove the seven M2.5 x 4 screws [1].
b Loosen the three M2.5 x 7 screws [2].
c Pry the base cover from the edge [1].
NOTE
: You may need a plastic scribe to pry the base cover from the edge.
d Lift the base cover away from the system [2].
2
Removing and installing components 9
