Installing the system board
1 Align the screw holes on the system board with the screw holes on the system.
2 Replace the six M2.0 x 2 screws to secure the system board to the computer.
3 Align the screw holes of the USB Type C bracket with the screw holes on the system board and replace the two screws to secure the
bracket to the system.
4 Connect the eDP cable, power adapter port cable and speaker cable to the connector in the system board.
5 Connect the Input output board cable, speaker cable, keyboard backlight cable, keyboard cable and touchpad cable to the system
board.
6 Install the:
a solid state drive(SSD)
b heat sink
c system fan
d battery
e base cover
7 Follow the procedure in After working inside your computer.
Touchpad
Removing touchpad
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a base cover
b battery

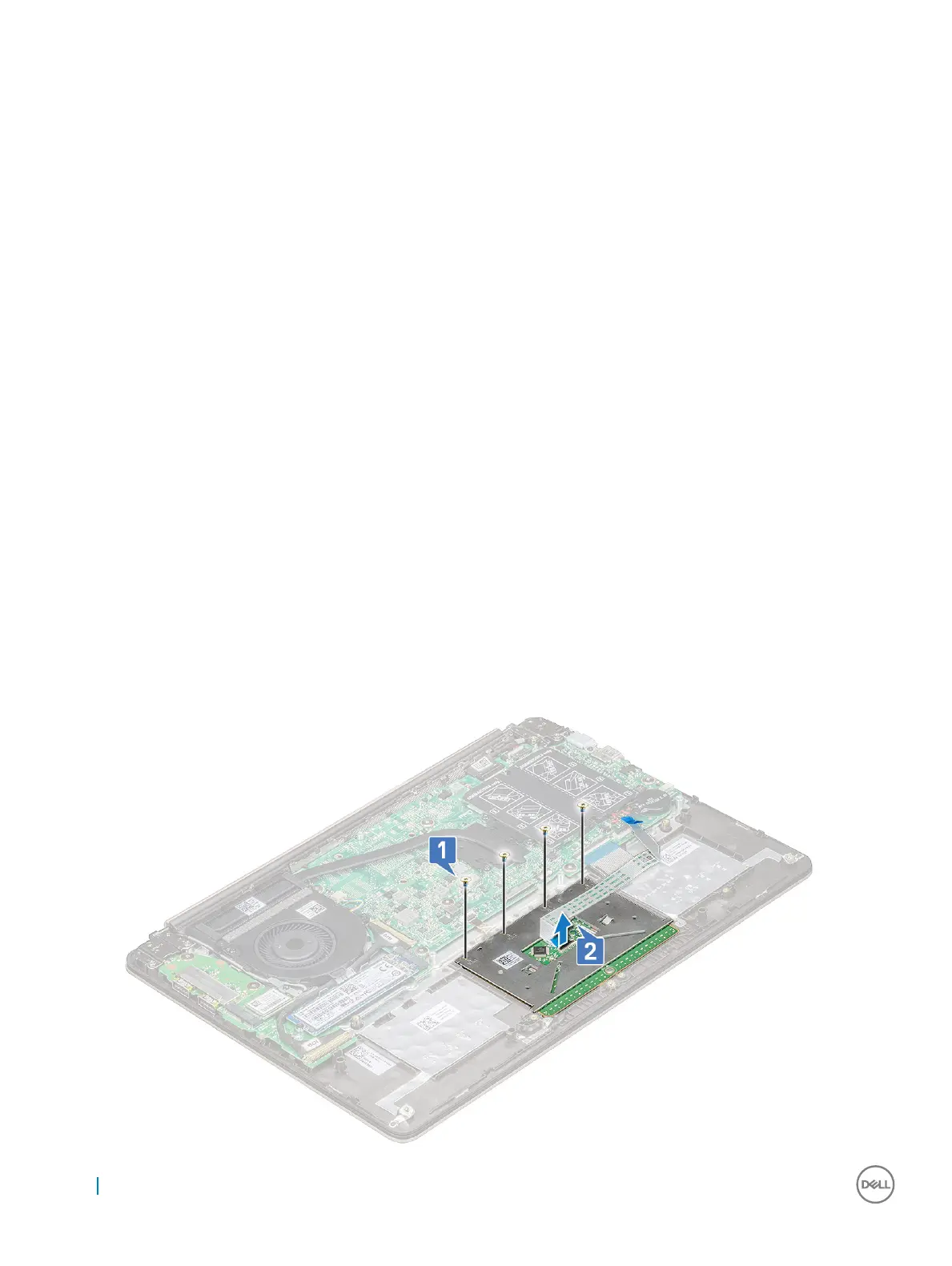

3 To remove the touchpad:
a Peel the adhesive from the touchpad.
b Remove the four M2.0 x 2 screws that secure the touchpad to the system [1].
c Disconnect the touchpad cable from the connector in the system [2].
24
Removing and installing components
