e solid-state drive(SSD)
3 To remove the system board:

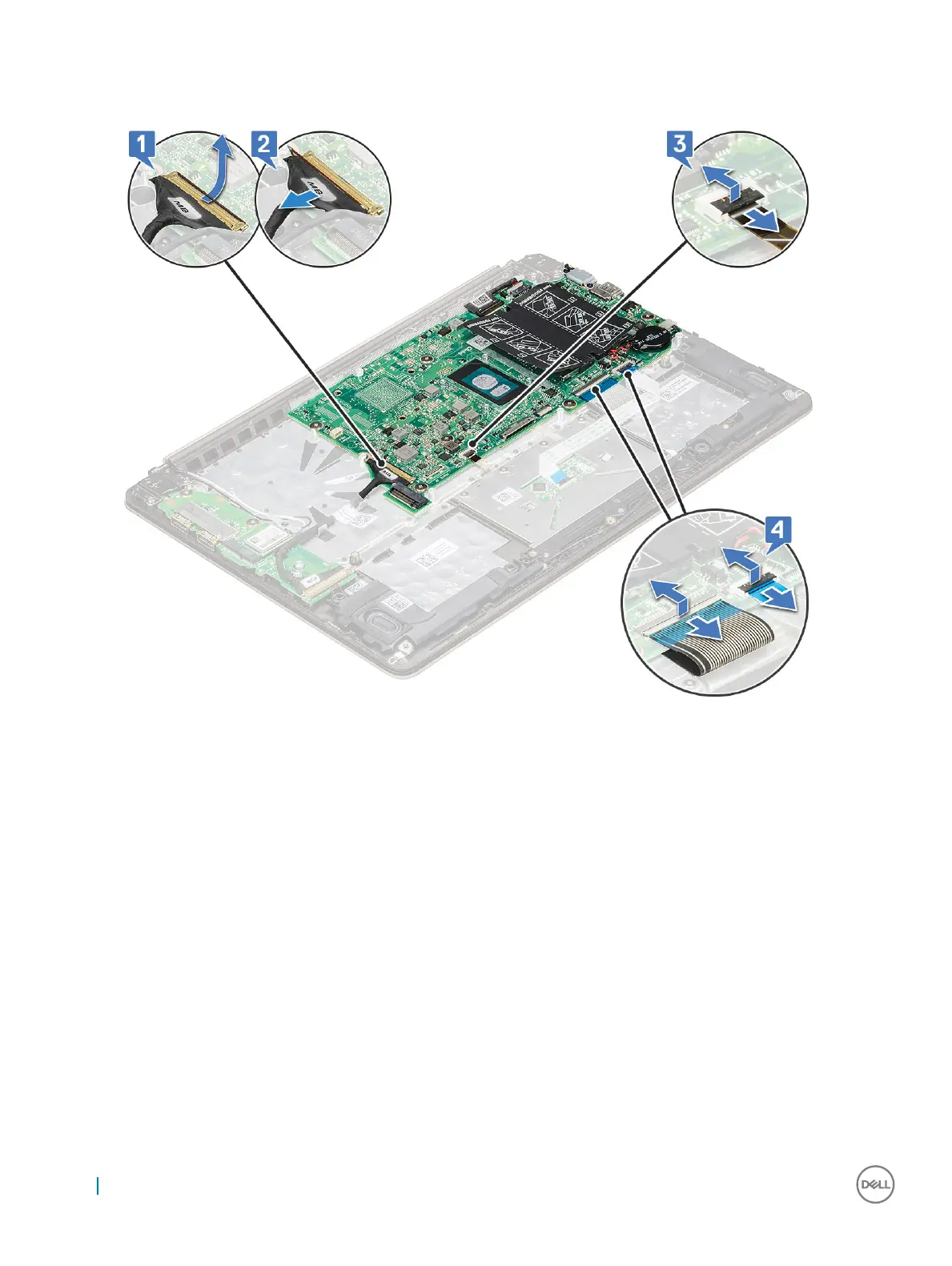

a Disconnect the following cables:
• Input output(I/O) board cable [1,2]
• Keyboard backlight cable [3]
• Keyboard and Touchpad cable [4]
b Disconnect the eDP cable [1], power adapter port cable [2] and speaker cable [5] from the connector.
c Remove the two M2.0 x 5 screws that secure the USB Type C port bracket to the system board [3].
d Lift the USB Type C port bracket away from the system [4].
