8. Using the Phillips #1 screwdriver, secure the M.2 NVMe SSD on the BOSS-N1 card carrier with the M3 x 0.5 x 4.5 mm
screw.

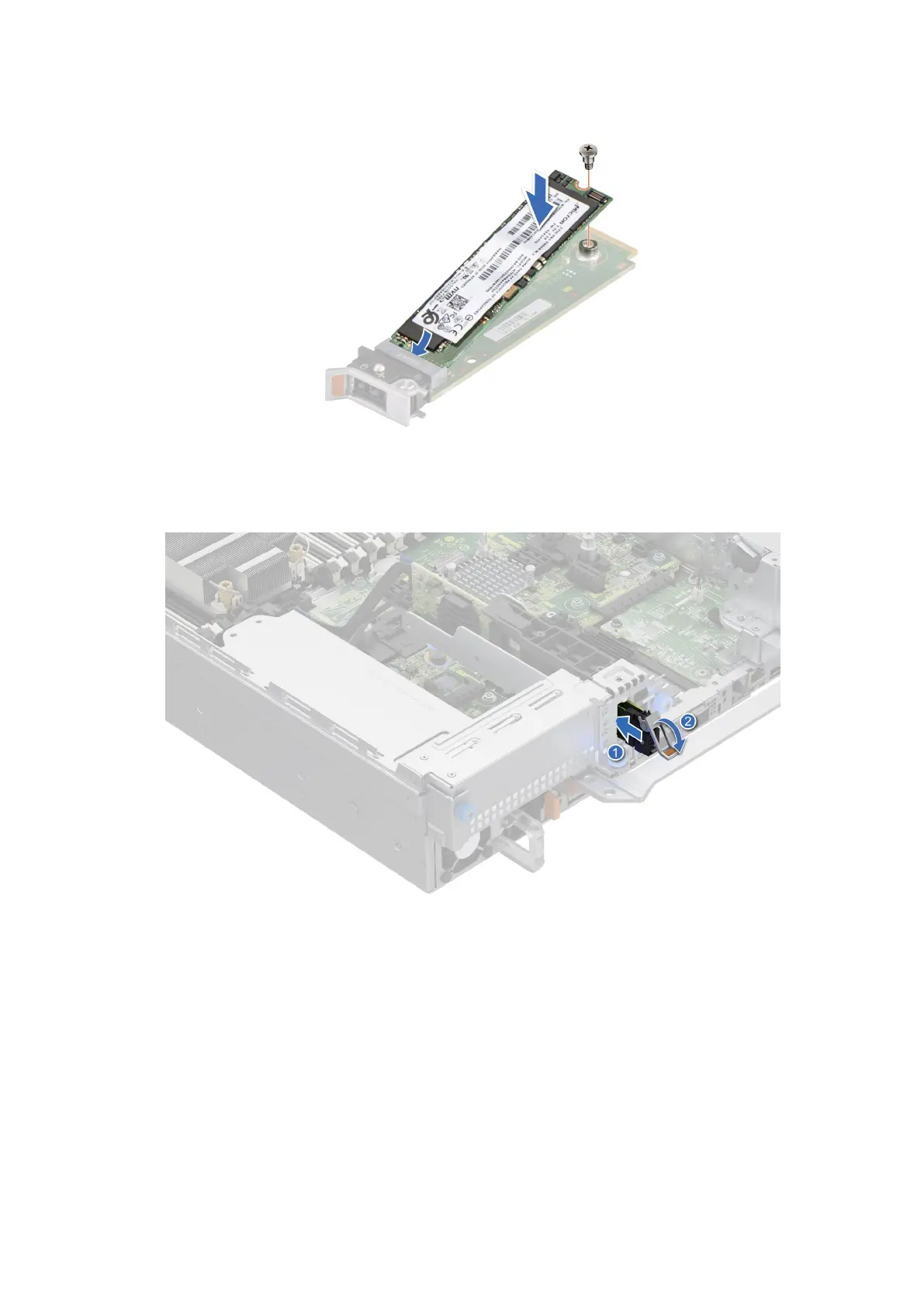

Figure 164. Installing the M.2 NVMe SSD
9. Slide the BOSS-N1 card carrier into the BOSS-N1 module slot.
10. Close the BOSS-N1 card carrier release latch to lock the carrier in place.
Figure 165. Installing the BOSS-N1 card carrier
Installing and removing system components
167
