Delta Electronics AC Servo Drive ASDA-AB User Manual

Chapter 1 Unpacking Check and Model Explanation|ASDA-AB Series
1-2 Revision January 2009
(2) One encoder cable, which is used to connect the encoder of servo motor to the CN2 terminal of
servo drive.
(3) CN1 Connector: 50 PIN Connector (3M type analog product)
(4) CN2 Connector: 20 PIN Connector (3M type analog product)
(5) CN3 Connector: 6 PIN Connector (IEEE1394 analog product)
1.2 Model Explanation

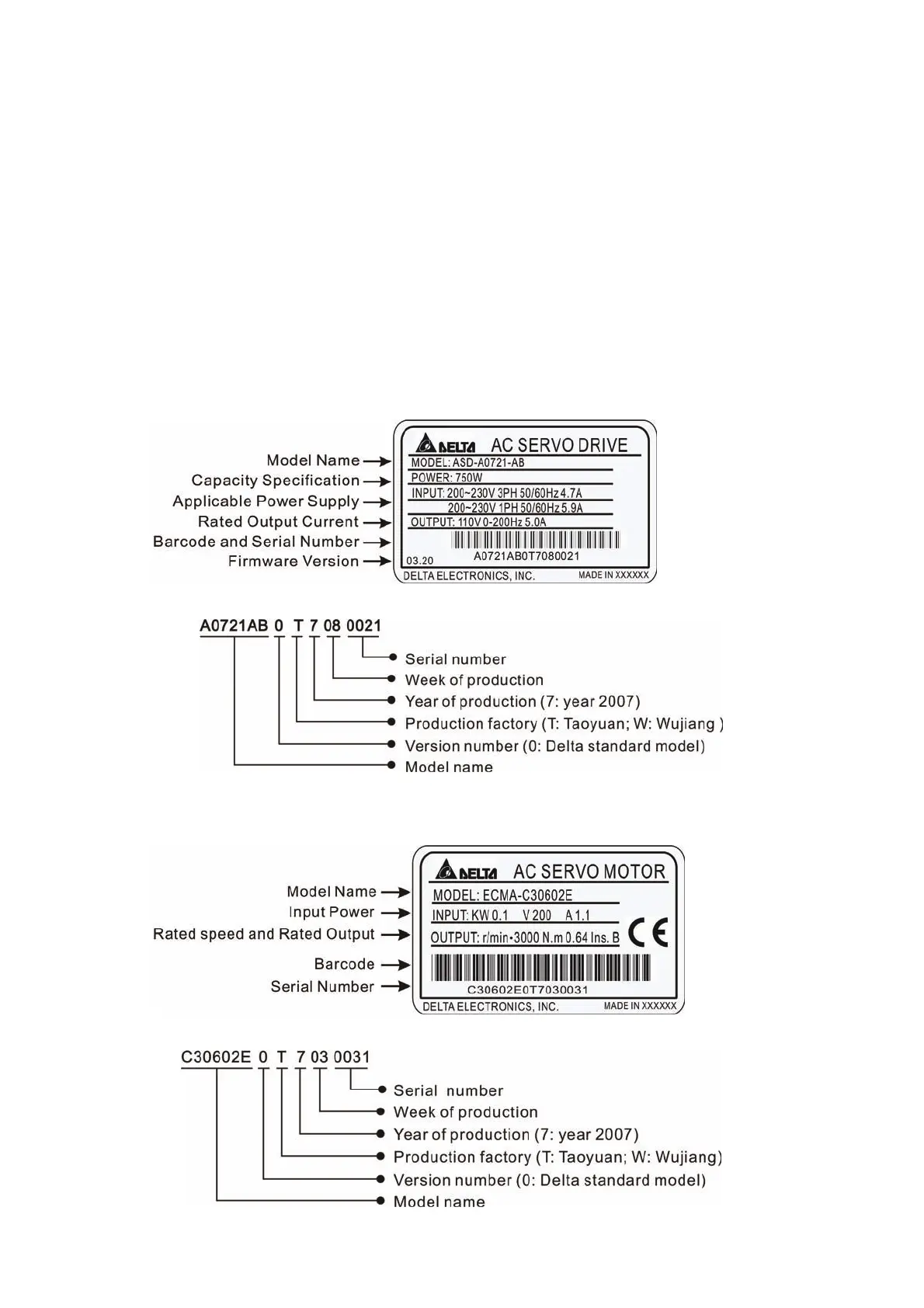

1.2.1 Nameplate Information
ASDA-AB Series Servo Drive
 Nameplate Explanation
 Serial Number Explanation
ASMT Series Servo Motor
 Nameplate Explanation
 Serial Number Explanation
