Delta Electronics AC Servo Drive ASDA-AB User Manual

Chapter 11 Specifications|ASDA-AB Series
11-20 Revision January 2009

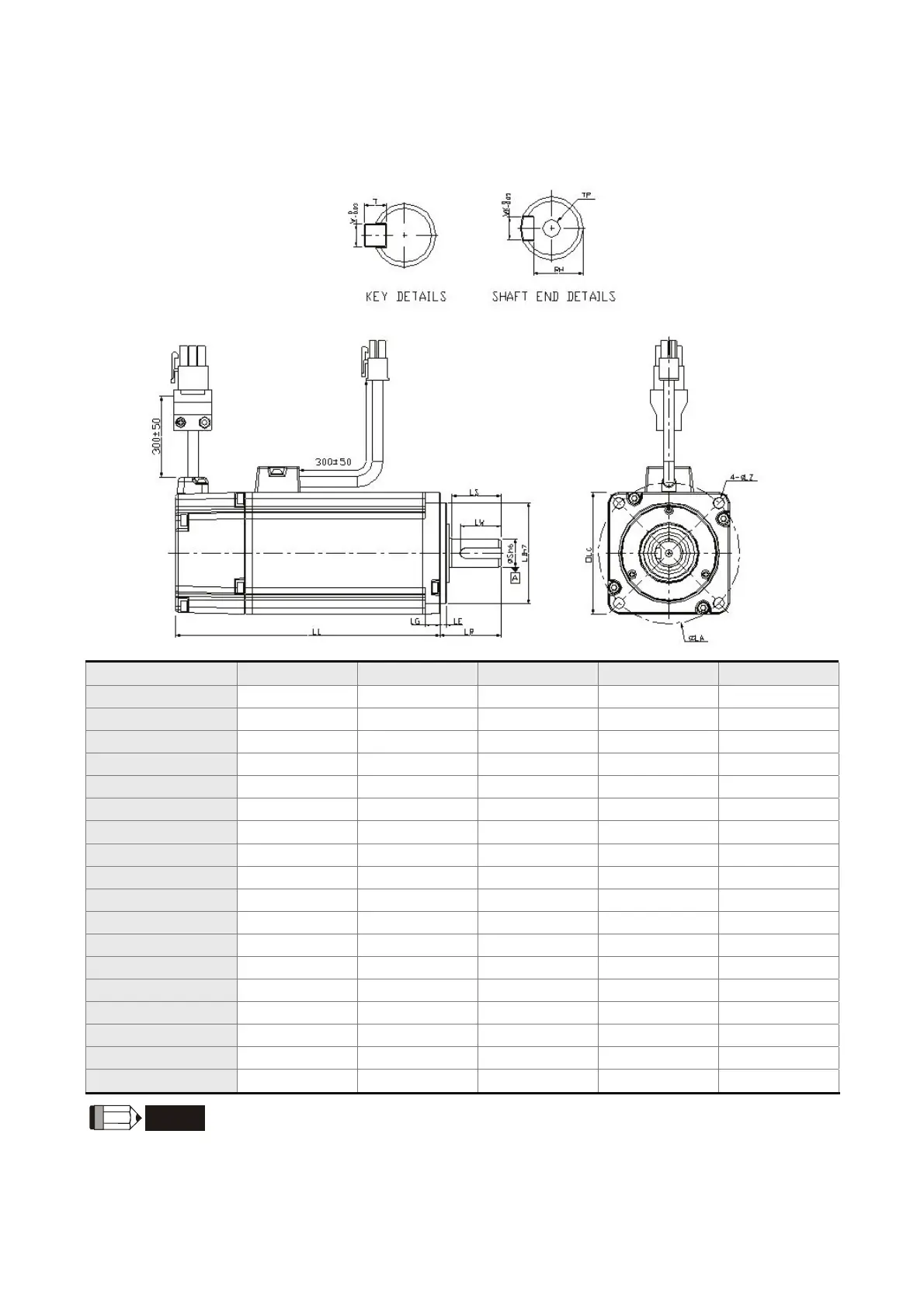

11.6 Dimensions of Servo Motor
Motor Frame Size: 80mm and below Models
Model C30401S C30602S C30604S C308047 C30807S
LC 40 60 60 80 80
LZ 4.5 5.5 5.5 6.6 6.6
LA 46 70 70 90 90
S 8 14 14 14 19
LB 30 50 50 70 70
LL (without brake) 100.6 105.5 130.7 112.3 138.3
LL (with brake) - 141.6 166.8 152.8 178
LR 25 30 30 30 35
LE 2.5 3 3 3 3
LG 5 7.5 7.5 8 8
LW 16 20 20 20 25
LS (without oil seal) 20 27 27 27 32
LS (with oil seal) 20 24 24 24.5 29.5
RH 6.2 11 11 11 15.5
WK 3 5 5 5 6
W 3 5 5 5 6
T 3 5 5 5 6
TP M3, Depth 8 M4, Depth 15 M4, Depth 15 M4, Depth 15 M6, Depth 20
NOTE
1) Dimensions are in millimeters. Actual measured values are in metric units. Please
use metric for precise measurements.
2) The boxes (

) in the model names are for optional configurations. (Please refer
to Section 1.2 for model explanation)
