Delta Electronics AC Servo Drive ASDA-AB - Chapter 3 Connections and Wiring; 3.1 Connections

Revision January 2009 3-1
Chapter 3 Connections and Wiring
This chapter provides information on wiring ASDA-AB series products, the descriptions of I/O signals and
gives typical examples of wiring diagrams.
3.1 Connections
3.1.1 Connecting to Peripheral Devices

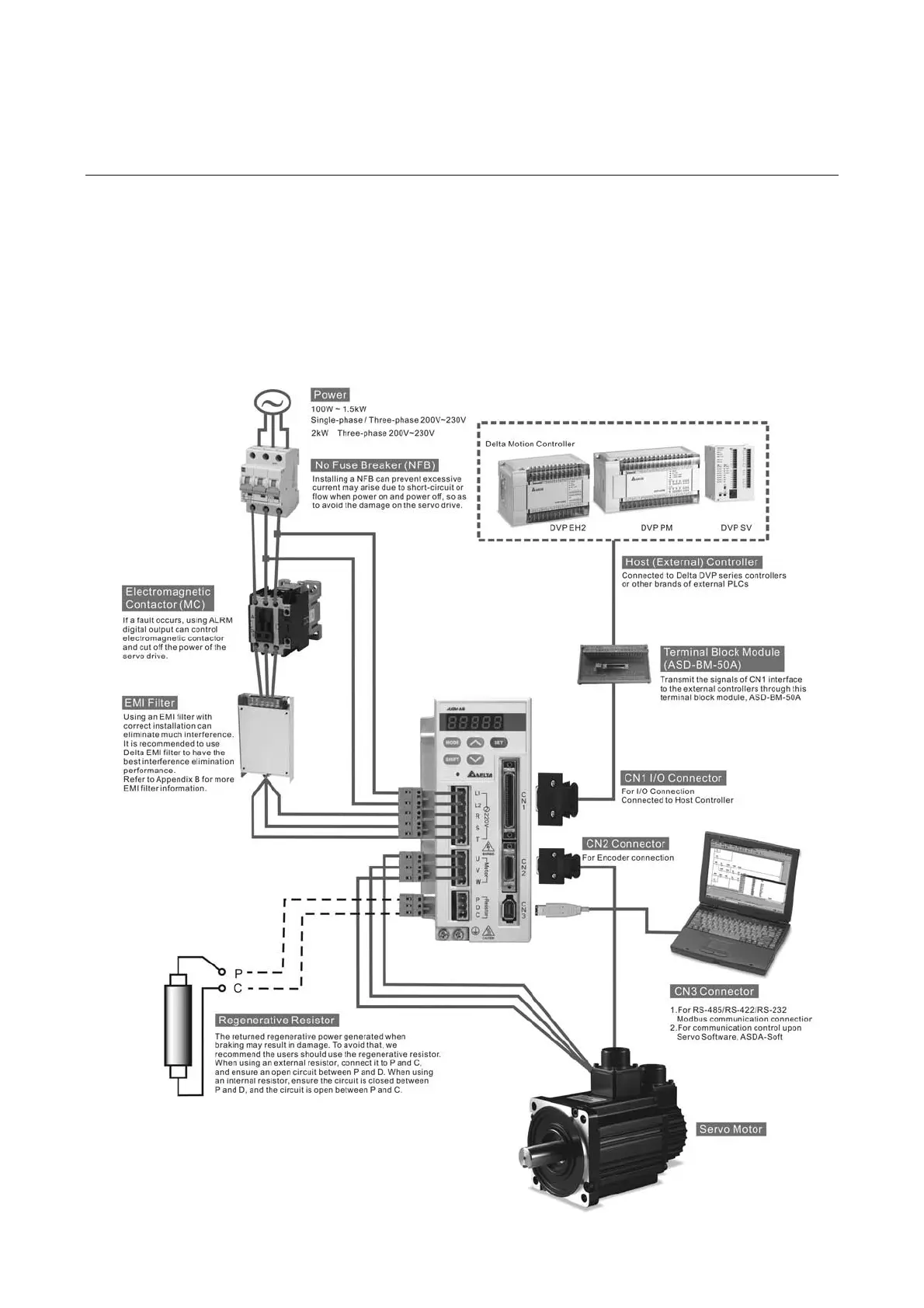

Figure 3.1 220V Servo Drive
