Delta Electronics AC Servo Drive ASDA-AB User Manual

Chapter 11 Specifications|ASDA-AB Series
Revision January 2009 11-21

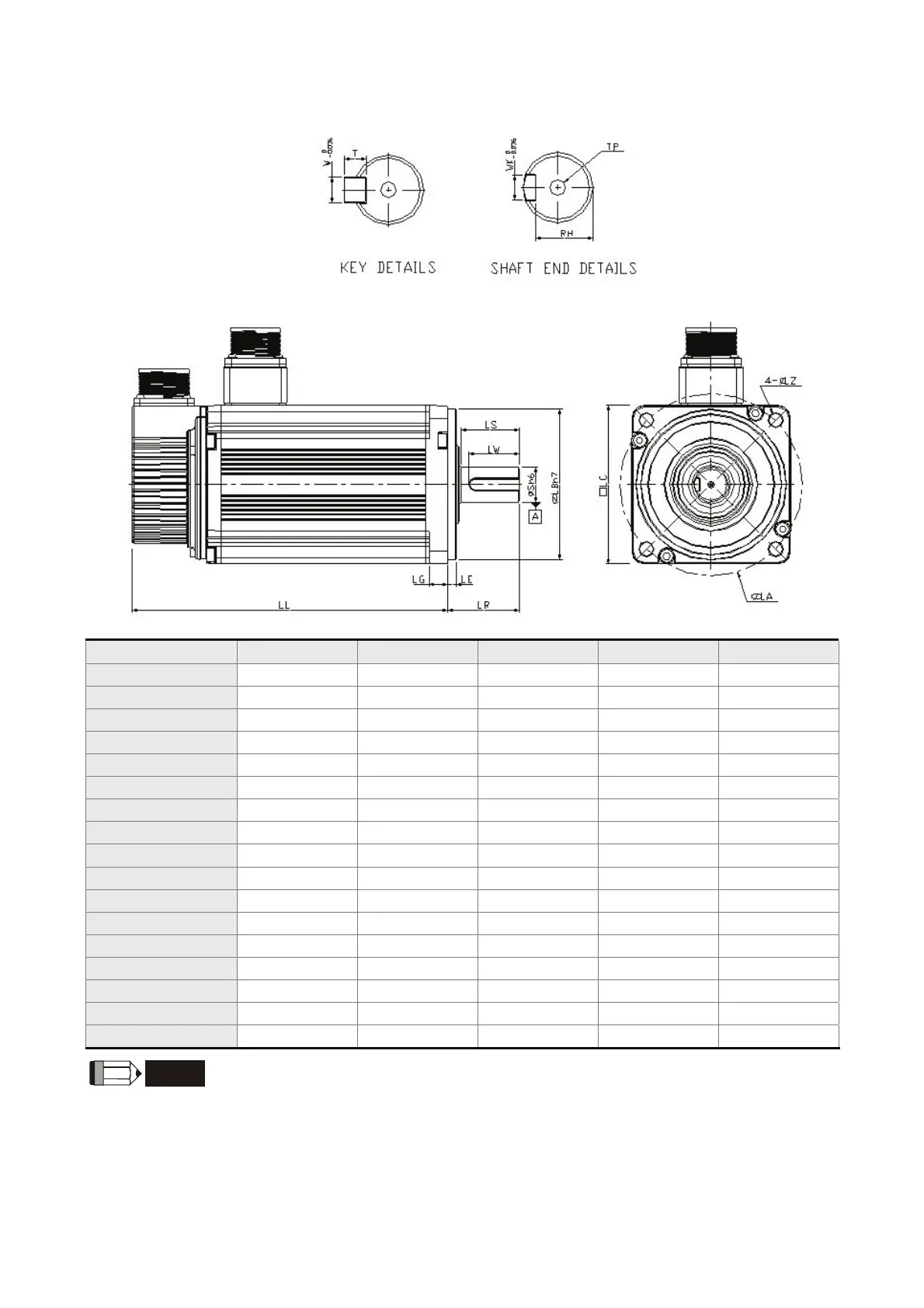

Motor Frame Size: 100mm and above Models
Model G31303S E31305S G31306S G31309S C31010S
LC 130 130 130 130 100
LZ 9 9 9 9 9
LA 145 145 145 145 115
S 22 22 22 22 22
LB 110 110 110 110 95
LL (without brake) 147.5 147.5 147.5 163.5 153.5
LL (with brake) 183.5 183.5 183.5 198 192.5
LR 55 55 55 55 45
LE 6 6 6 6 5
LG 11.5 11.5 11.5 11.5 12
LW 36 36 36 36 32
LS
47 47 47 47 37
RH 18 18 18 18 18
WK 8 8 8 8 8
W 8 8 8 8 8
T 7 7 7 7 7
TP
M6, Depth 20 M6, Depth 20 M6, Depth 20 M6, Depth 20 M6, Depth 20
NOTE
1) Dimensions are in millimeters. Actual measured values are in metric units. Please
use metric for precise measurements.
2) The boxes (

) in the model names are for optional configurations. (Please refer
to Section 1.2 for model explanation)
