Chapter 11 Specifications|ASDA-AB Series
11-22 Revision January 2009

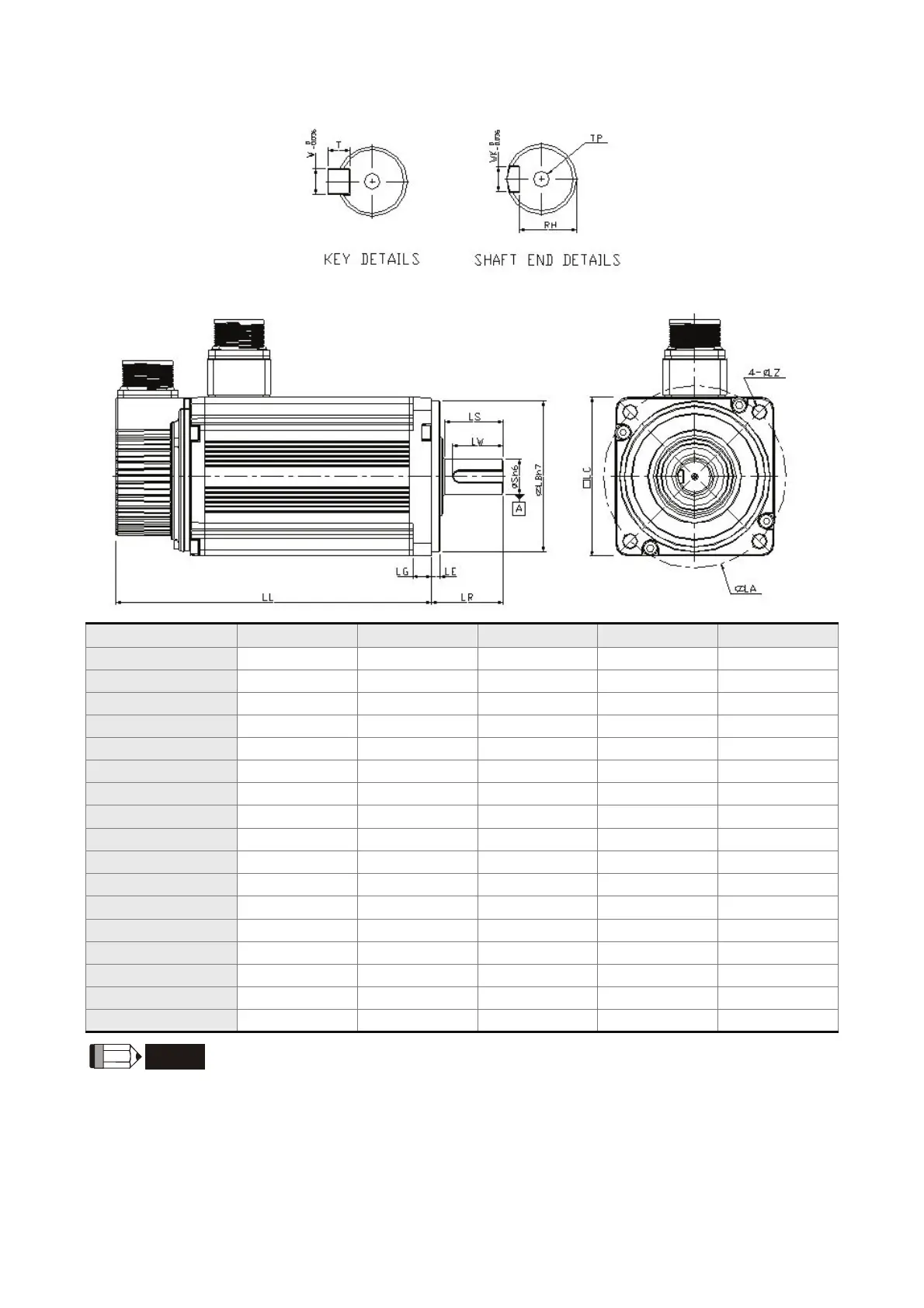

Motor Frame Size: 100mm and above Models
Model E31310îš…S E31315îš…S C31020îš…S G31320îš…S E31820îš…S
LC 130 130 100 130 180
LZ 9 9 9 9 13.5
LA 145 145 115 145 200
S 22 22 22 22 35
LB 110 110 95 110 114.3
LL (without brake) 147.5 167.5 199 187.5 169
LL (with brake) 183.5 202 226 216 203.1
LR 55 55 45 55 79
LE 6 6 5 6 4
LG 11.5 11.5 12 11.5 20
LW 36 36 32 36 63
LS
47 47 37 47 73
RH 18 18 18 18 30
WK 8 8 8 8 10
W 8 8 8 8 10
T 7 7 7 7 8
TP M6, Depth 20 M6, Depth 20 M6, Depth 20 M6, Depth 20 M12, Depth 25
NOTE
1) Dimensions are in millimeters. Actual measured values are in metric units. Please
use metric for precise measurements.
2) The boxes (
îš…
) in the model names are for optional configurations. (Please refer to
Section 1.2 for model explanation)
