Chapter 3 Connections and Wiring|ASDA-AB Series
3-6 Revision January 2009

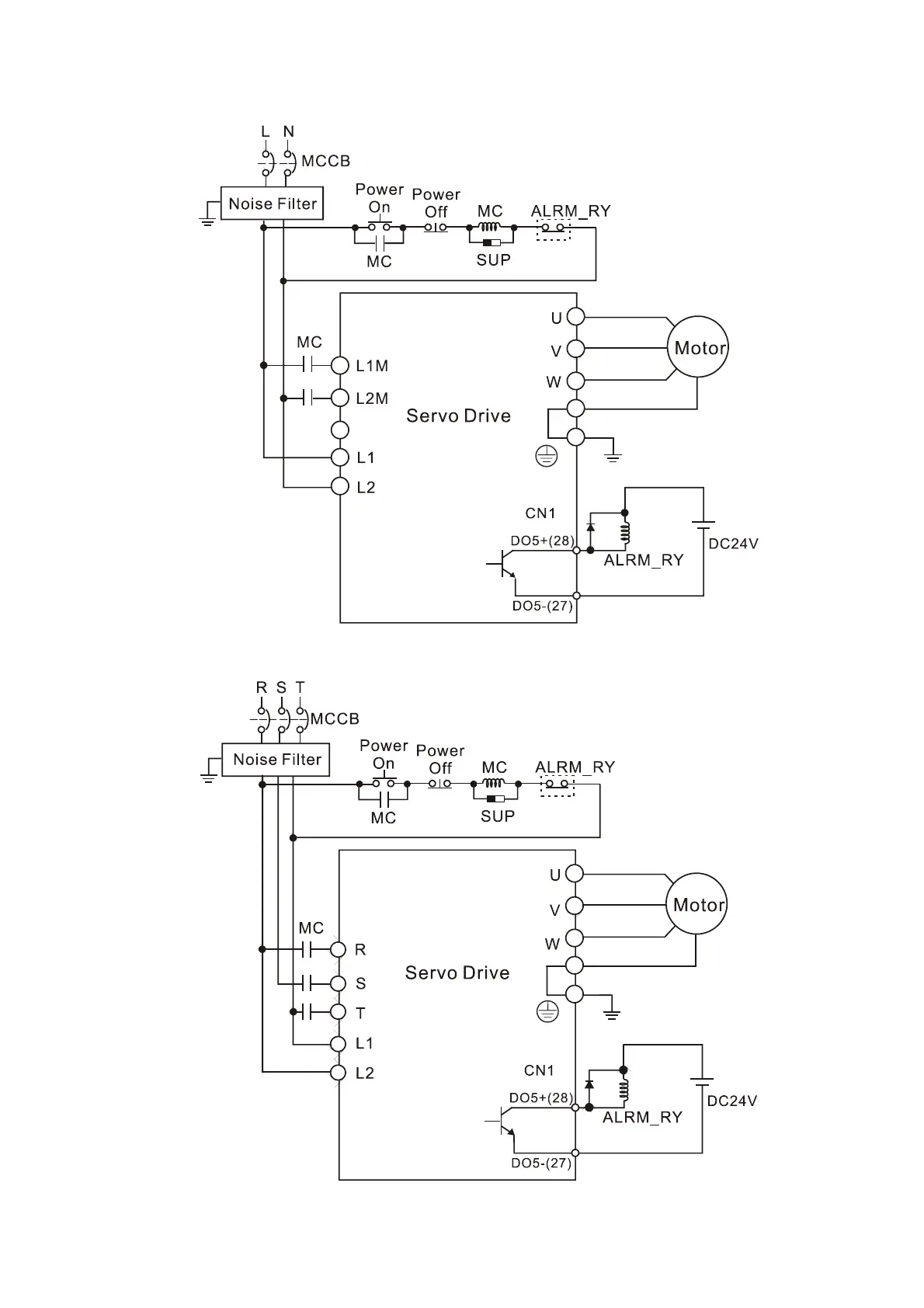

Figure 3.4 Single-Phase Power Supply (400W and below, 110V models)
Figure 3.5 Three-Phase Power Supply (all 220V models)
