Delta Electronics AC Servo Drive ASDA-AB User Manual

Appendix A Accessories|ASDA-AB Series
Revision January 2009 A-7

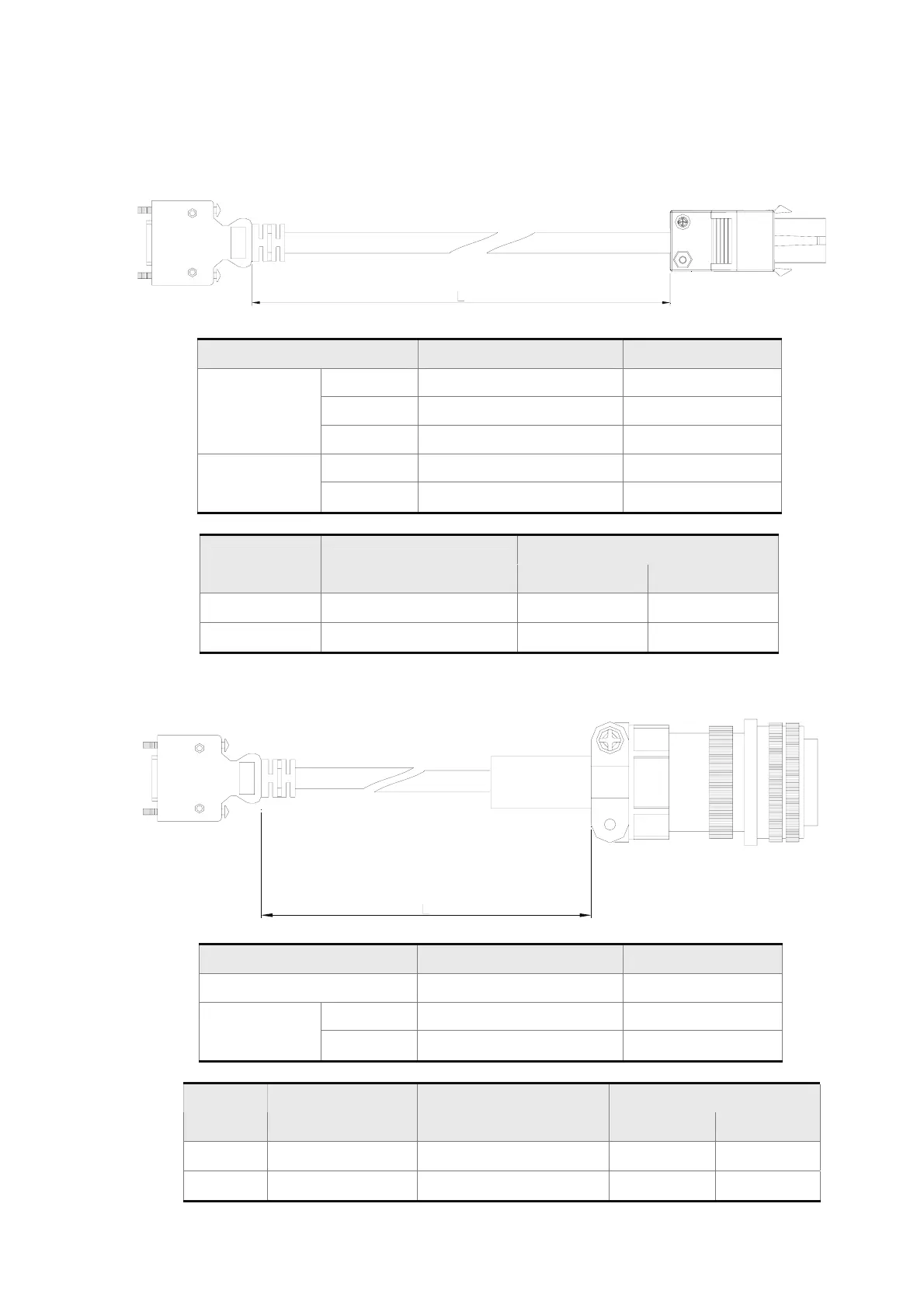

 Encoder Cables
Delta Part Number: ASD-ABEN0003, ASD-ABEN0005
Title Part No. Manufacturer
Housing AMP (1-172161-9) AMP
Terminal AMP (170359-3) AMP
MOTOR SIDE
CLAMP DELTA (34703237XX) DELTA
PLUG 3M 10120-3000PE 3M
DRIVE SIDE
SHELL 3M 10320-52A0-008 3M
L
Title Part No.
mm inch
1 ASD-ABEN0003
3000 ± 100 118 ±4
2 ASD-ABEN0005
5000 ± 100 197 ± 4
Delta Part Number: ASD-CAEN1003, ASD-CAEN1005
Title Part No. Manufacturer
MOTOR SIDE 3106A-20-29S ----
PLUG 3M 10120-3000PE 3M
DRIVE SIDE
SHELL 3M 10320-52A0-008 3M
L
Title Part No. Straight
mm inch
1 ASD-CAEN1003 3106A-20-29S
3000 ± 100 118 ± 4
2 ASD-CAEN1005 3106A-20-29S
5000 ± 100 197 ± 4
