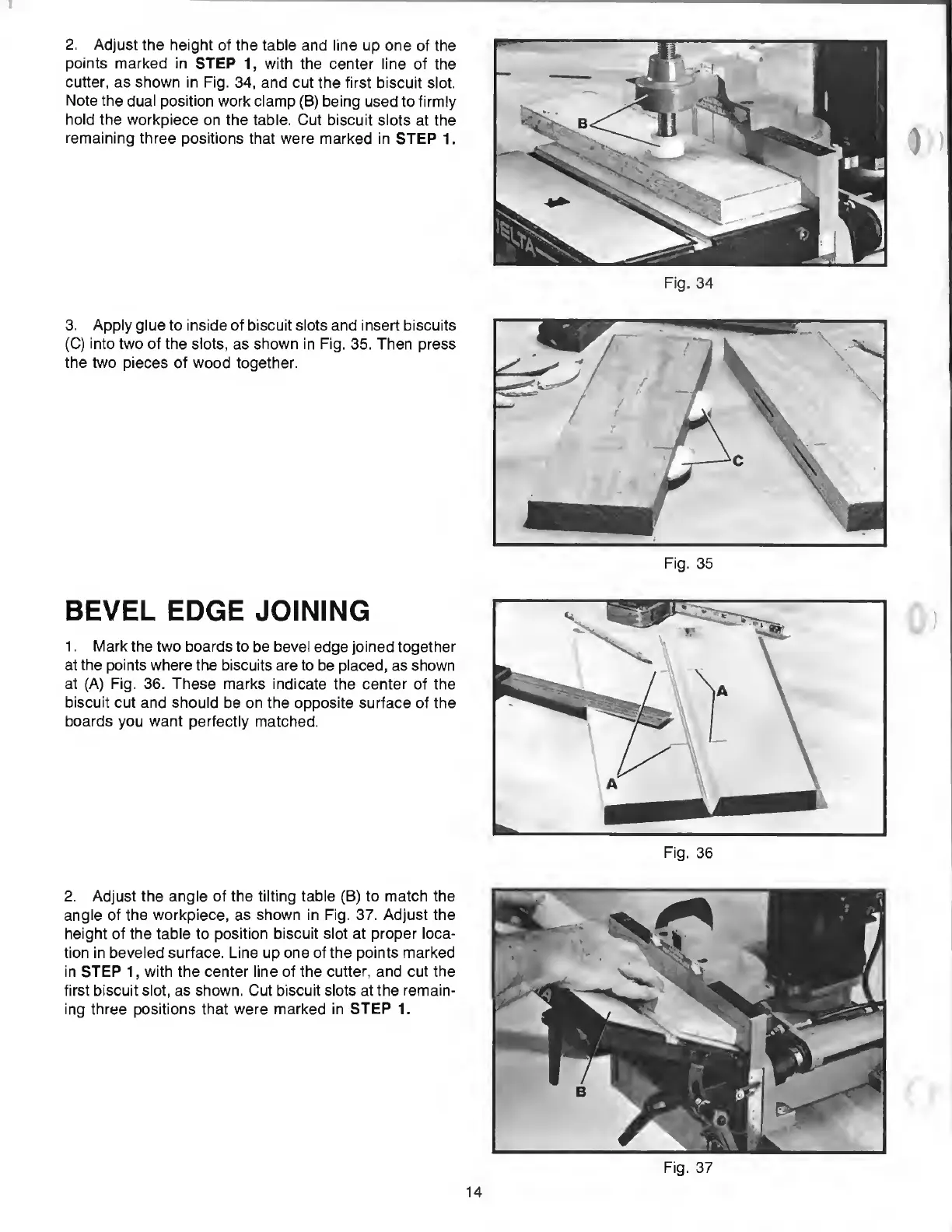

Delta 32-100 - Bevel Edge Joining.14

2. Adjust the height of the table and line up one of the
points marked in STEP 1, with the center line of the
cutter, as shown in Fig. 34, and cut the first biscuit slot.
Note the dual position work clamp (B) being used to firmly
hold the workpiece on the table. Cut biscuit slots at the
remaining three positions that were marked in STEP 1.
Fig. 34
3. Apply glue to inside of biscuit slots and insert biscuits
(C) into two of the slots, as shown in Fig. 35. Then press
the two pieces of wood together.
Fig. 35
BEVEL EDGE JOINING
1. Mark the two boards to be bevel edge joined together
at the points where the biscuits are to be placed, as shown
at (A) Fig. 36. These marks indicate the center of the
biscuit cut and should be on the opposite surface of the
boards you want perfectly matched.
Fig. 36
2. Adjust the angle of the tilting table (B) to match the
angle of the workpiece, as shown in Fig. 37. Adjust the
height of the table to position biscuit slot at proper loca¬
tion in beveled surface. Line up one of the points marked
in STEP 1, with the center line of the cutter, and cut the
first biscuit slot, as shown. Cut biscuit slots at the remain¬
ing three positions that were marked in STEP 1,
Fig. 37
14
