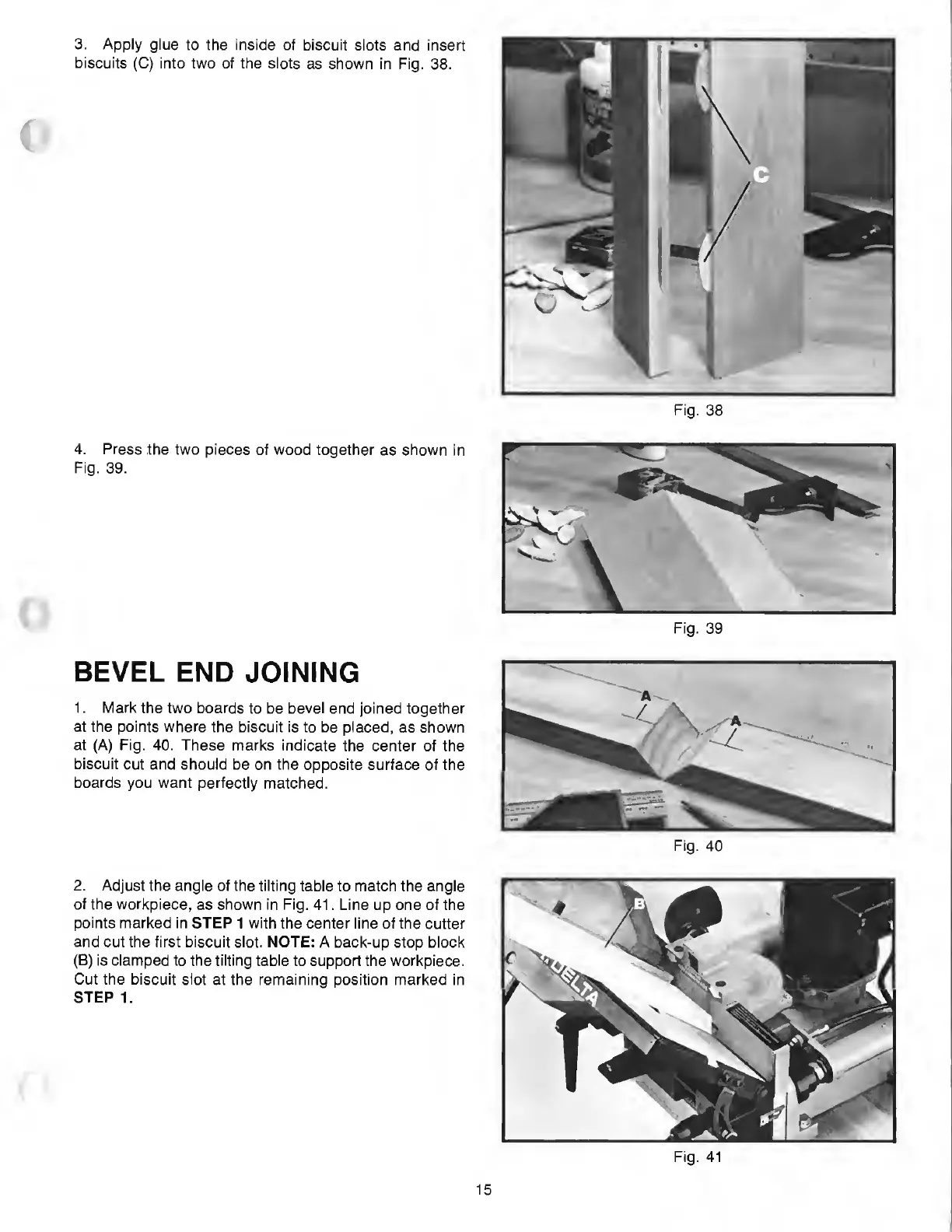

BEVEL
END
JOINING
1.
Mark
the
two
boards
to
be
bevel
end
joined
together
at
the
points
where
the
biscuit
is
to
be
placed,
as
shown
at
(A)
Fig.
40.
These
marks
indicate
the
center
of
the
biscuit
cut
and
should
be
on
the
opposite
surface
of
the
boards
you
want
perfectly
matched.
Fig.
40
2.
Adjust
the
angle
of
the
tilting
table
to
match
the
angle
of
the
workpiece,
as
shown
in
Fig.
41.
Line
up
one
of
the
points
marked
in
STEP
1
with
the
center
line
of
the
cutter
and
cut
the
first
biscuit
slot.
NOTE;
A
back-up
stop
block
(B)
is
clamped
to
the
tilting
table
to
support
the
workpiece.
Cut
the
biscuit
slot
at
the
remaining
position
marked
in
STEP
1.
Fig.
41
