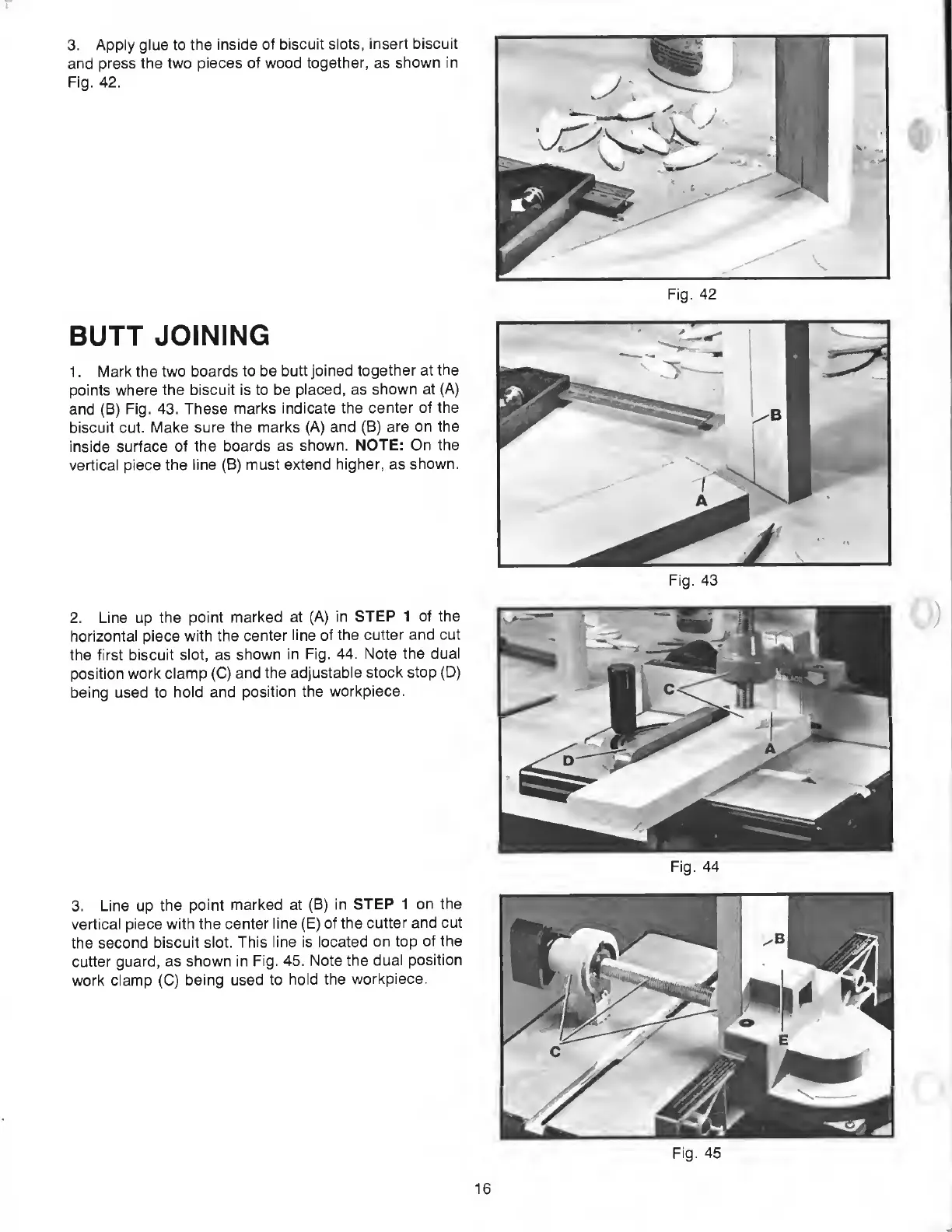

3.
Apply
glue
to
the
inside
of
biscuit
slots,
insert
biscuit
and
press
the
two
pieces
of
wood
together,
as
shown
in
Fig.
42.
Fig.
42
BUTT
JOINING
1.
M
ark
the
two
boards
to
be
butt
joined
together
at
the
points
where
the
biscuit
is
to
be
placed,
as
shown
at
(A)
and
(B)
Fig.
43.
These
marks
indicate
the
center
of
the
biscuit
cut.
Make
sure
the
marks
(A)
and
(B)
are
on
the
inside
surface
of
the
boards
as
shown.
NOTE:
On
the
vertical
piece
the
line
(B)
must
extend
higher,
as
shown.
Fig.
43
2.
L
ine
up
the
point
marked
at
(A)
in
STEP
1
of
the
horizontal
piece
with
the
center
line
of
the
cutter
and
cut
the
first
biscuit
slot,
as
shown
in
Fig.
44.
Note
the
dual
position
work
clamp
(C)
and
the
adjustable
stock
stop
(D)
being
used
to
hold
and
position
the
workpiece.
3.
L
ine
up
the
point
marked
at
(B)
in
STEP
1
on
the
vertical
piece
with
the
center
line
(E)
of
the
cutter
and
cut
the
second
biscuit
slot.
This
line
is
located
on
top
of
the
cutter
guard,
as
shown
in
Fig.
45.
Note
the
dual
position
work
clamp
(C)
being
used
to
hold
the
workpiece.
Fig.
44
Fig.
45
