AH Motion Controller – Hardware Manual
4-30
4
COM COM COM COM
Direct-current power supply
Emergency stop
Fuse

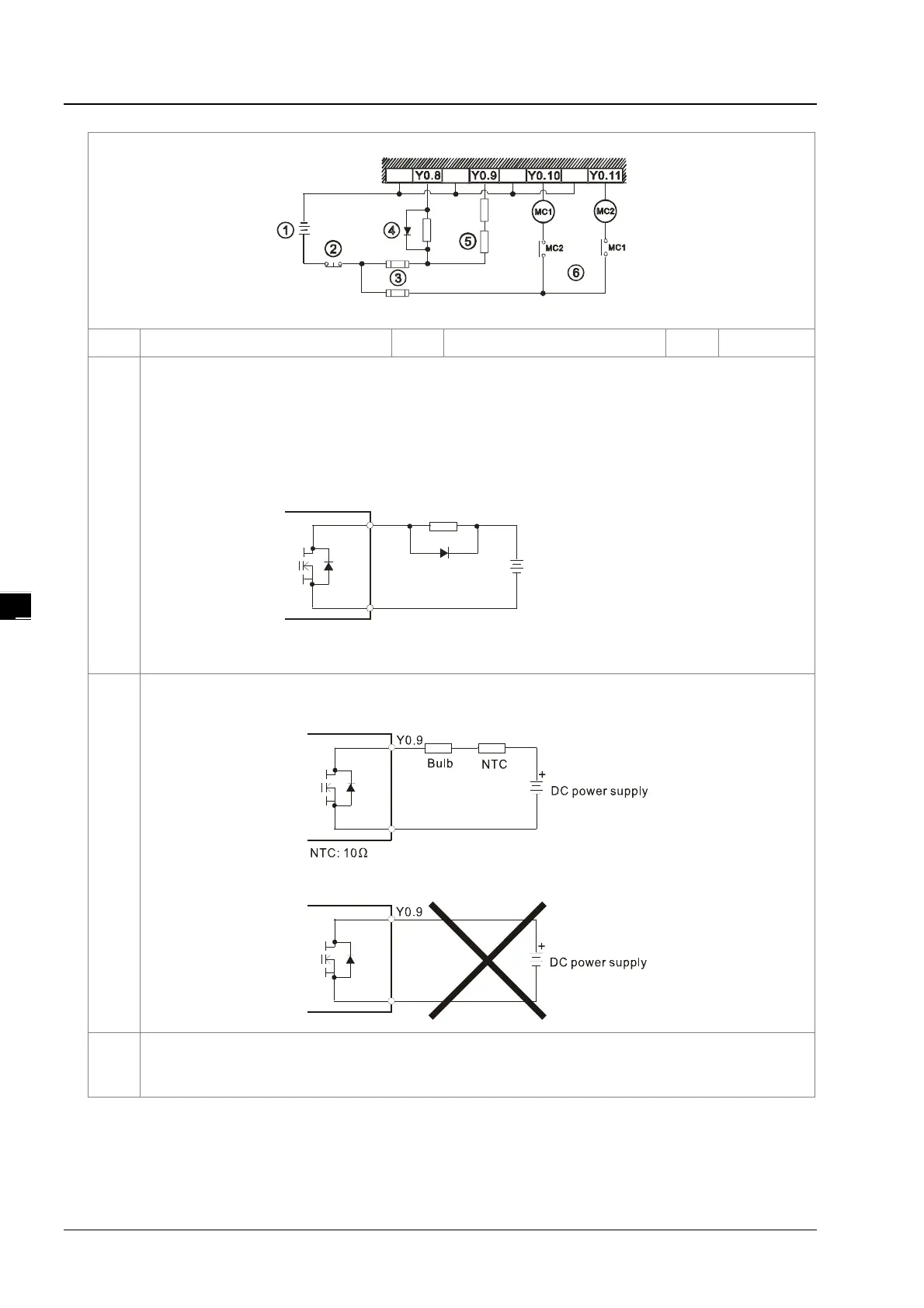

The output terminals of a transistor module are open-collector output terminals. If Y0.8 is a pulse train
output terminal of a transistor module, the output current passing through its output pull-up resistor must
be greater than 0.1 A to ensure that the transistor module operates normally.
A relay or a solenoid valve is used as a DC load. A diode is connected in parallel to absorb the surge
voltage which occurs when the load is OFF.
COM
Y0.8
+
DC power supply
AHxxEMC-5A
Relay/ Solenoid valve
D
D: 1N4001 diode
A bulb (incandescent lamp) is used as a DC load. A thermistor is connected in series to absorb the surge
current which occurs when the load is ON.
Y0.9 can not be connected to a power supply directly. It must be connected to a load.
Mutually exclusive output: For example, Y0.10 controls the clockwise rotation of the motor, and Y0.11
controls the counterclockwise rotation of the motor. The interlock circuit which is formed, and the program
in the PLC ensure that there are protective measures if an abnormal condition occurs.
