Chapter 8 ParametersASDA-A2R Series
8-180 Revision December, 2014

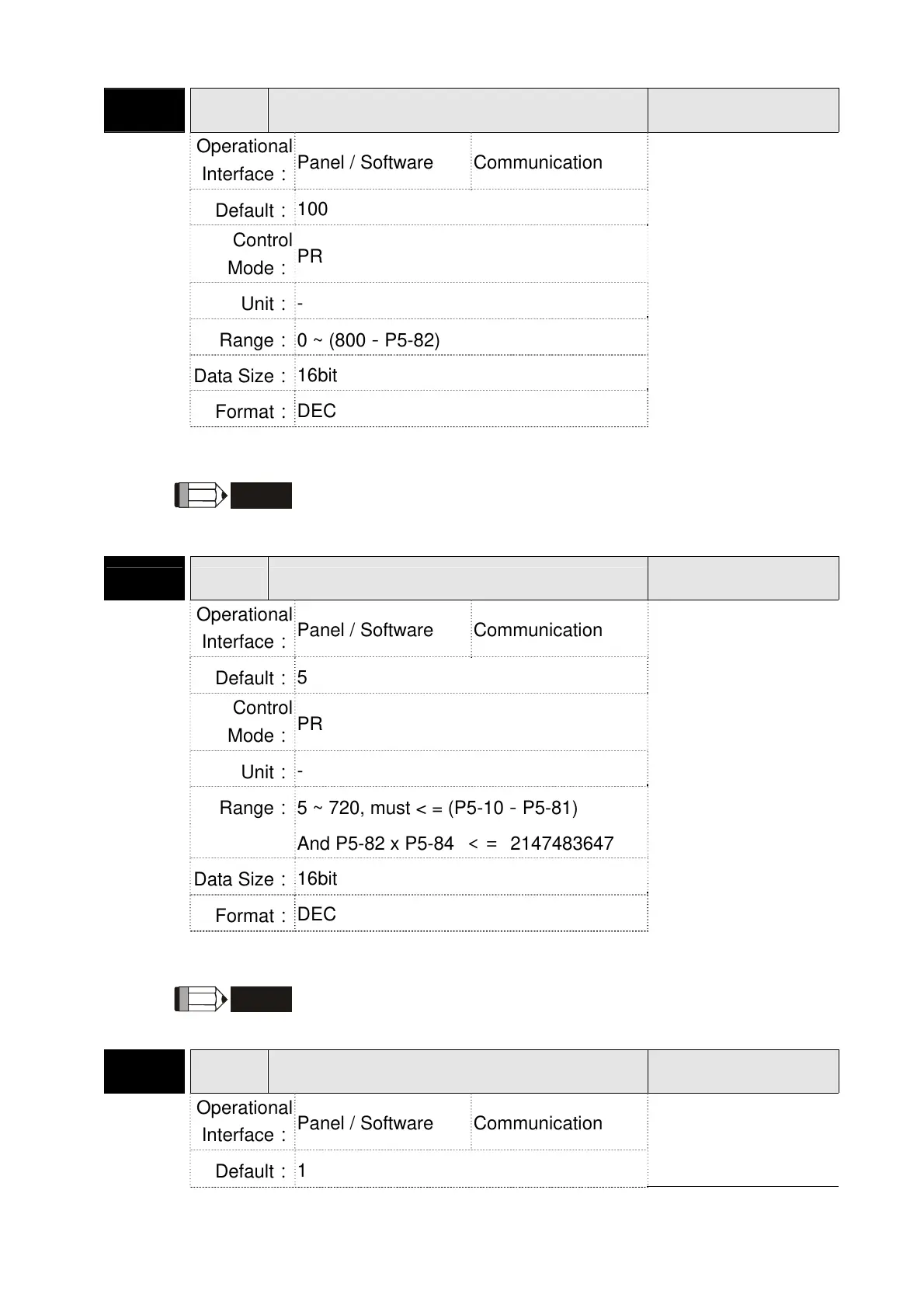

P5-81 ECHD E-CAM: Start Address of Data Array
Address: 05A2H
05A3H
Operational
Interface：
Panel / Software Communication
Related Section:
7.11
Default：
100
Control
Mode：
PR
Unit：
-
Range： 0 ~ (800－P5-82)
Data Size：
16bit
Format：
DEC
Settings：
The first data of E-Cam table is saved in the address of data
array.
NOTE
This parameter can be set anytime, but will be effective only when
pre-engaged → engaged.
P5-82 ECMN E-CAM: Area Number N (at least >=5)
Address: 05A4H
05A5H
Operational
Interface：
Panel / Software Communication
Related Section:
7.11
Default：
5
Control
Mode：
PR
Unit：
-
Range： 5 ~ 720, must < = (P5-10－P5-81)
And P5-82 x P5-84 ＜＝ 2147483647
Data Size：
16bit
Format：
DEC
Settings：
It means the E-Cam curve is divided into N area, and the table
should include N+1 data.
NOTE
This parameter can be wrote when E-Cam stops (Please refer
toP5-88, X=0).
P5-83 ECMM E-CAM: Master Gear Ratio Setting M
Address: 05A6H
05A7H
Operational
Interface：
Panel / Software Communication
Related Section:
7.11
Default：
1
