Chapter 8 ParametersASDA-A2R Series
Revision December, 2014
8-181

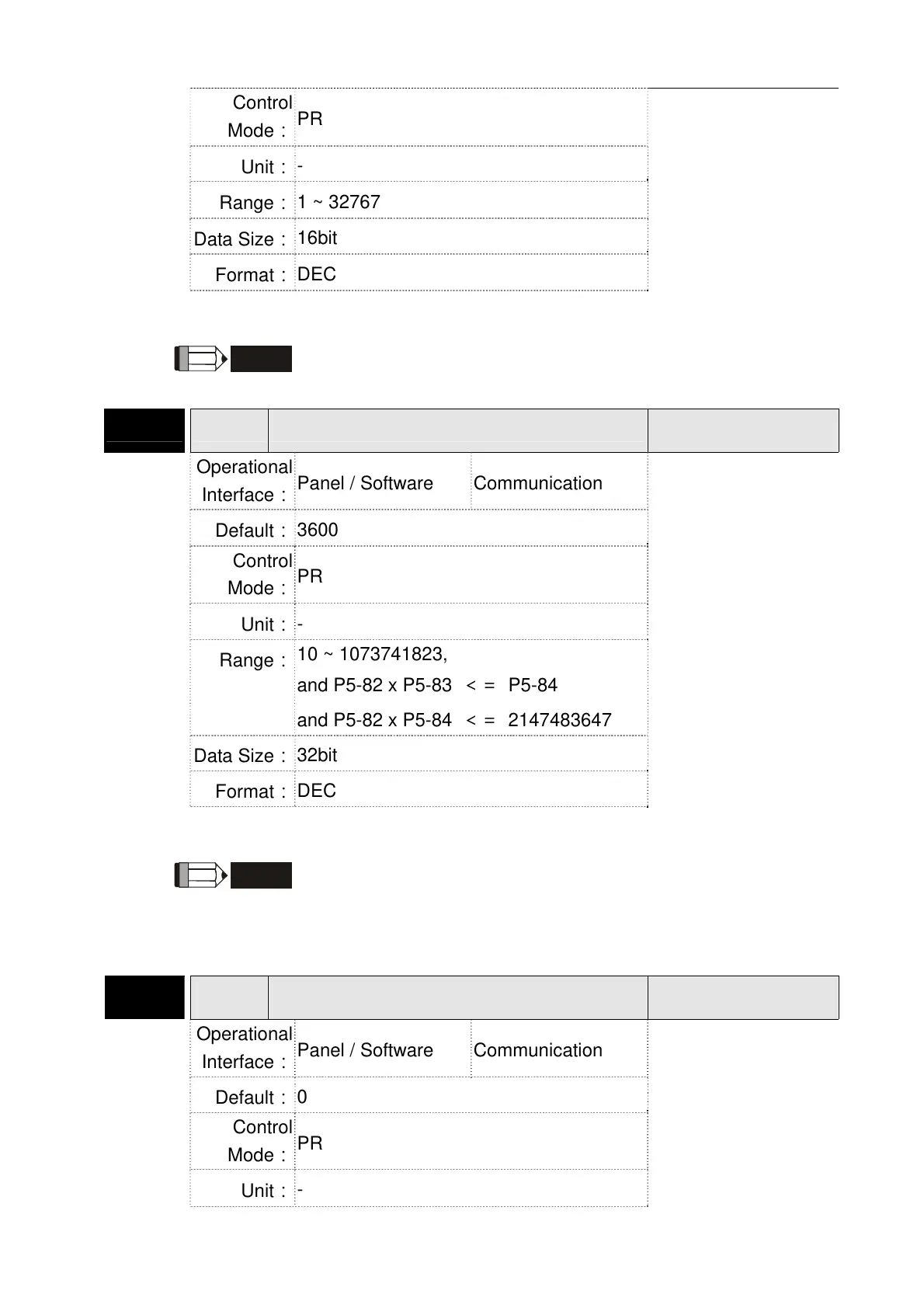

Control
Mode：
PR
Unit：
-
Range：
1 ~ 32767
Data Size：
16bit
Format：
DEC
Settings：
When receiving pulse number P of the Master, E-Cam will rotate
M circle, which means the M cycle of the E-Cam table.
NOTE
This parameter can be wrote when E-Cam stops (Please refer
toP5-88, X=0).
P5-84 ECMP E-CAM: Master Gear Ratio Setting P
Address: 05A8H
05A9H
Operational
Interface：
Panel / Software Communication
Related Section:
7.11
Default：
3600
Control
Mode：
PR
Unit：
-
Range：
10 ~ 1073741823,
and P5-82 x P5-83 ＜＝ P5-84
and P5-82 x P5-84 ＜＝ 2147483647
Data Size：
32bit
Format：
DEC
Settings：
When receiving pulse number P of the Master, E-Cam will rotate
M circle, which means the M cycle of the E-Cam table.
NOTE
This parameter can be wrote when E-Cam stops (Please refer
toP5-88, X=0).
This parameter can be modified anytime, and has no limit that
mentioned above.
P5-85 ECME E-CAM: Number of Area
Address: 05AAH
05ABH
Operational
Interface：
Panel / Software Communication
Related Section:
7.11
Default：
0
Control
Mode：
PR
Unit：
-
