Chapter 3 Wiring ASDA-A2R Series
3-34 Revision December. 2014
Caution: Do not apply to dual power or it may damage the servo drive.

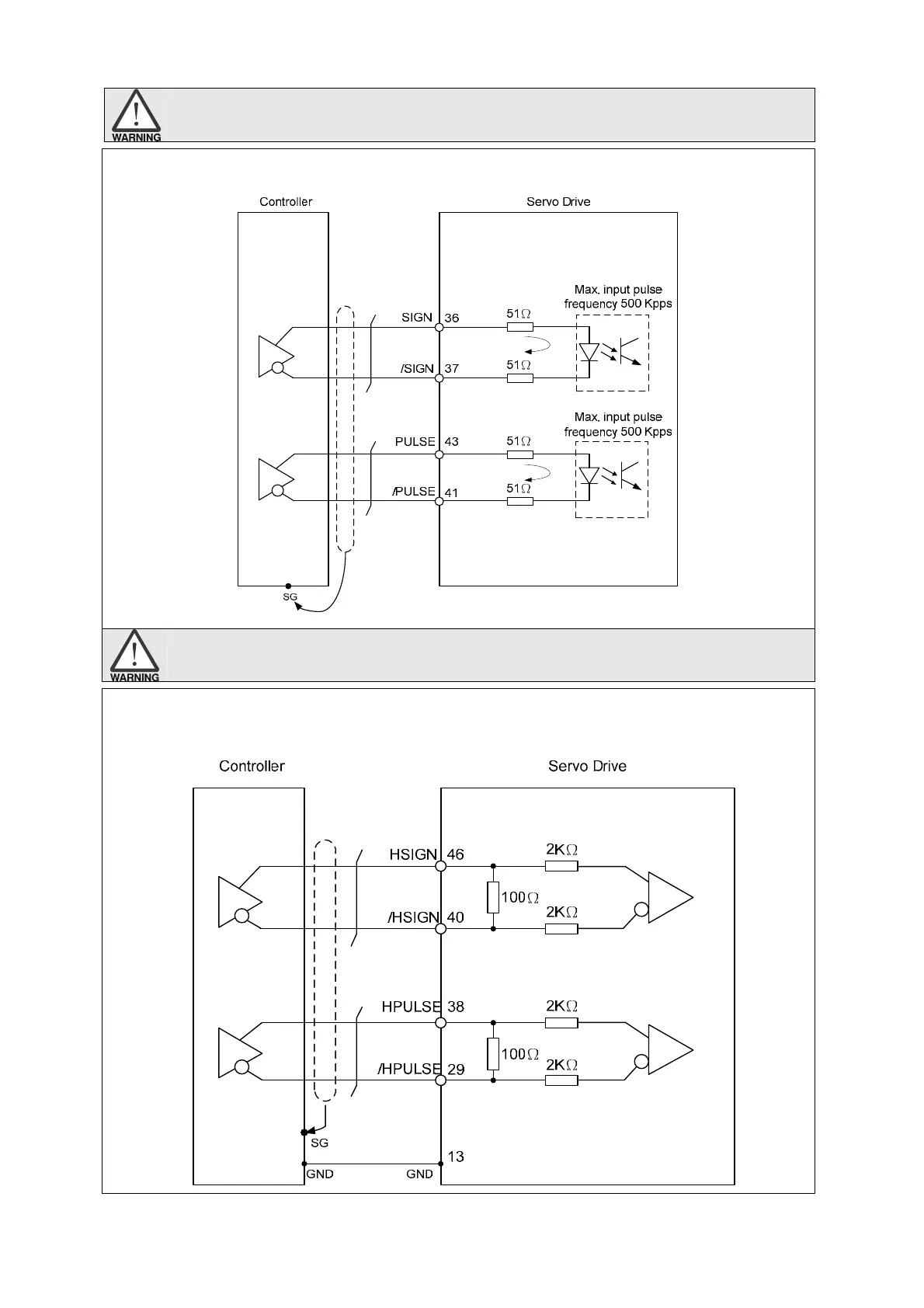

C4-1: Pulse input (Line driver) can only apply to 5V power. Do not apply to 24V power.
This opto-isolator is one-way input, please be ensured the direction of
current of pulse input is correct.
C4-2: High-speed pulse input (Line driver) can only apply to 5V power. Do not apply to
24V power.
