4.4.3 Force DO Output

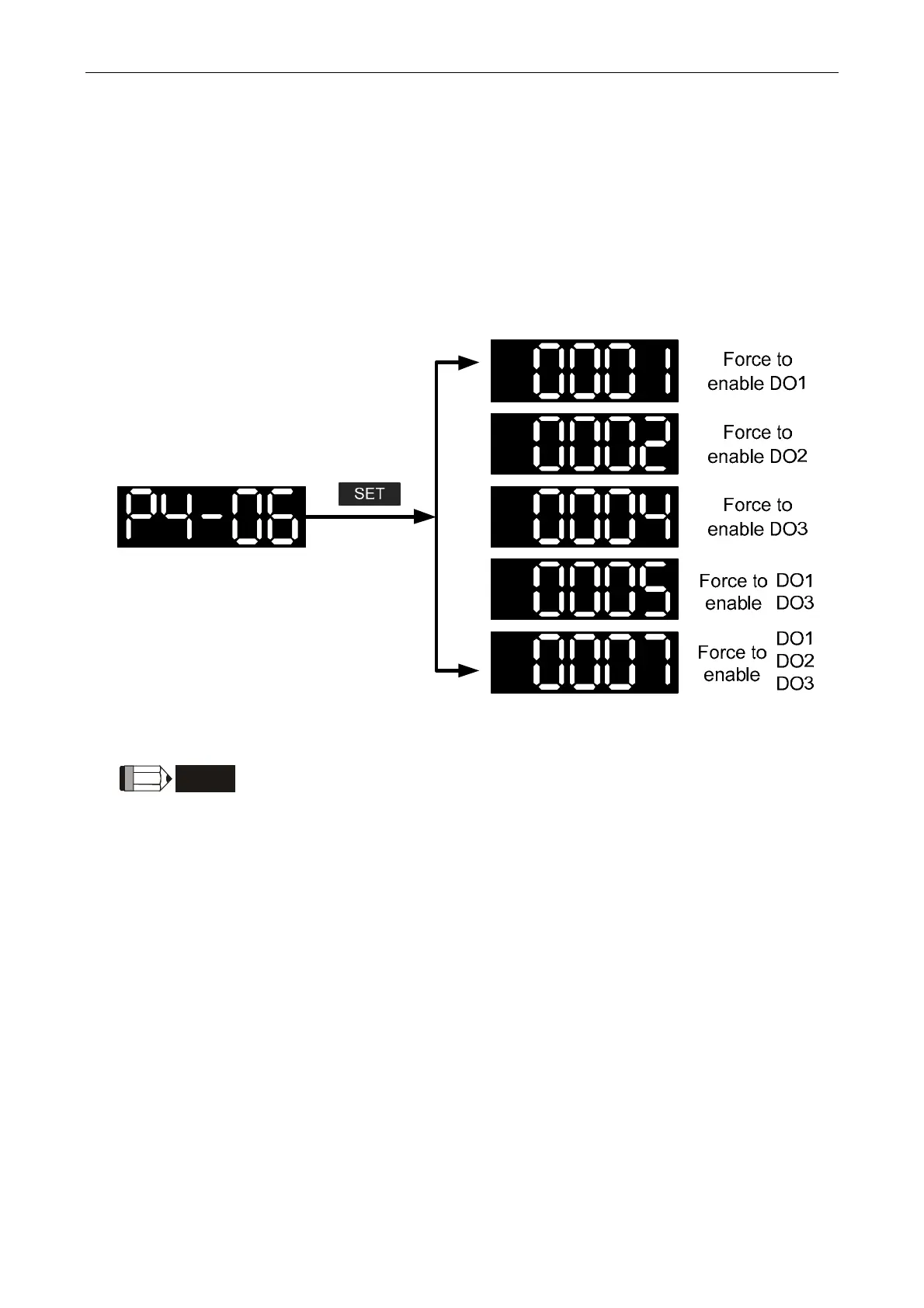

Enter into the Output Diagnosis Mode by the following settings. First, select the desired
output axis to switch the parameter. Set P2-08 to 406 and enable the function of force DO
output. Then, set the force DO output by binary method via P4-06. When the setting value
is 2, DO2 will be forced to enable. When the setting value is 5, DO1 and DO3 will be forced
to enable. No data is retained in this mode. It returns to the normal DO mode when
re-power on the drive or set P2-08 to 400.
NOTE
P4-06 is displayed in hexadecimal format. Therefore, it will not show
the fifth 0.
