ASDA-M Chapter 3 Wiring
Revision December, 2014 3-7

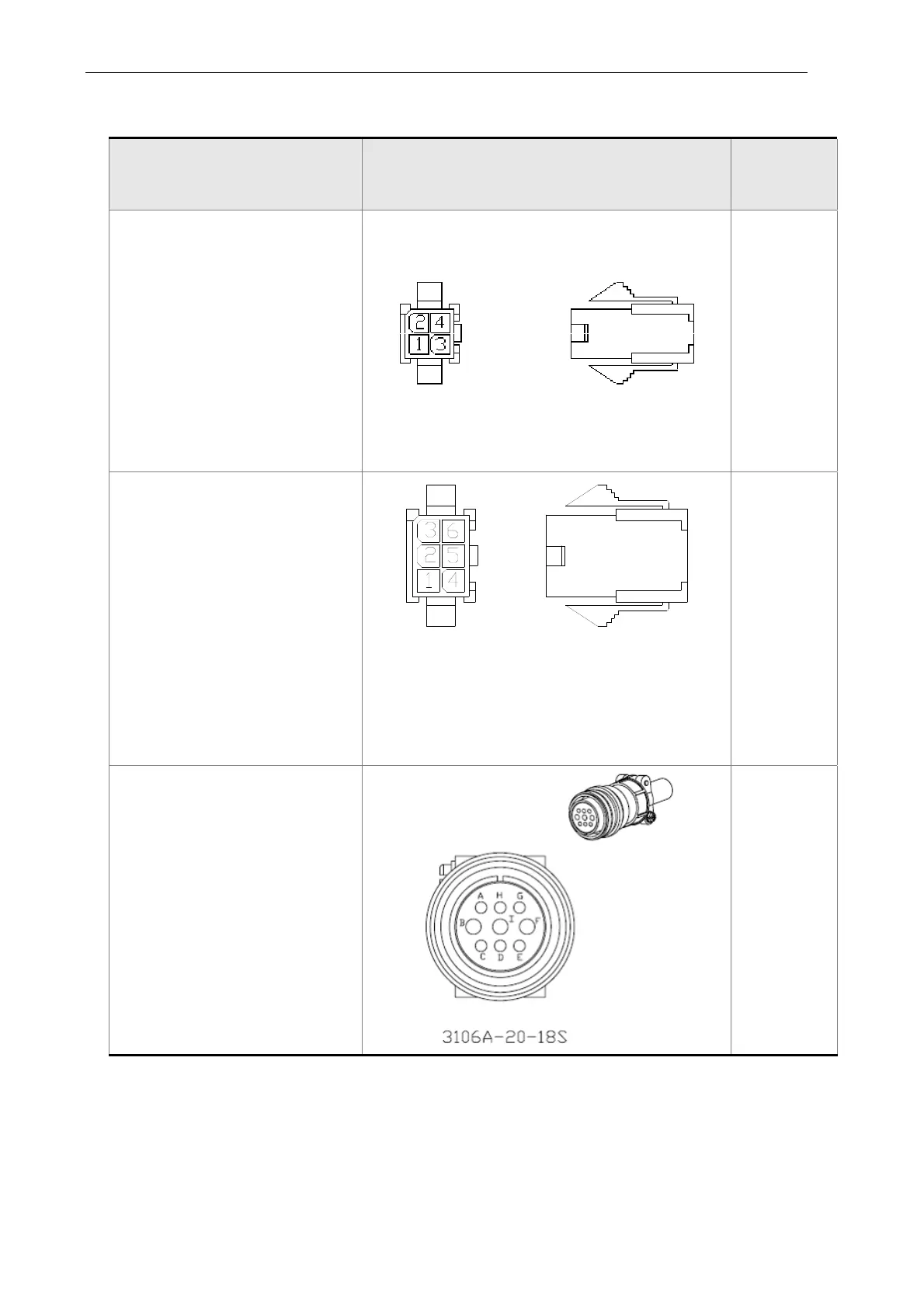

3.1.4 Specification of Motor U, V, W Power Cable
Motor Model
U、V、W／Connector of Mechanical Brake
Terminal
Definition
ECMA-C1040FS (50W)
ECMA-C△0401S (100W)
ECMA-C△0602S (200W)
ECMA-C△0604S (400W)
ECMA-C△0604H (400W)
ECMA-C△08047 (400W)
ECMA-C△0807S (750W)
ECMA-C△0807H (750W)
ECMA-C△0907S (750W)
ECMA-C△0910S (1000W)
HOUSING: JOWLE (C4201H00-2*2PA)
A
ECMA-C1040FS (50W)
ECMA-C△0401S (100W)
ECMA-C△0602S (200W)
ECMA-C△0604S (400W)
ECMA-C△0604H (400W)
ECMA-C△08047 (400W)
ECMA-C△0807S (750W)
ECMA-C△0807H (750W)
ECMA-C△0907S (750W)
ECMA-C△0910S (1000W)
*：with brake
HOUSING：JOWLE (C4201H00-2*3PA)
B
ECMA-G△1303S (300W)
ECMA-E△1305S (500W)
ECMA-G△1306S (600W)
ECMA-F△1308S (850W)
ECMA-G△1309S (900W)
ECMA-C△1010S (1000W)
ECMA-E△1310S (1000W)
ECMA-E△1315S (1500W)
C
