Delta ASDA-M Series User Manual

Chapter 4 Panel Display and Operation ASDA-M
4-12 Revision December, 2014
4.4.5 Digital Output Diagnosis Operation

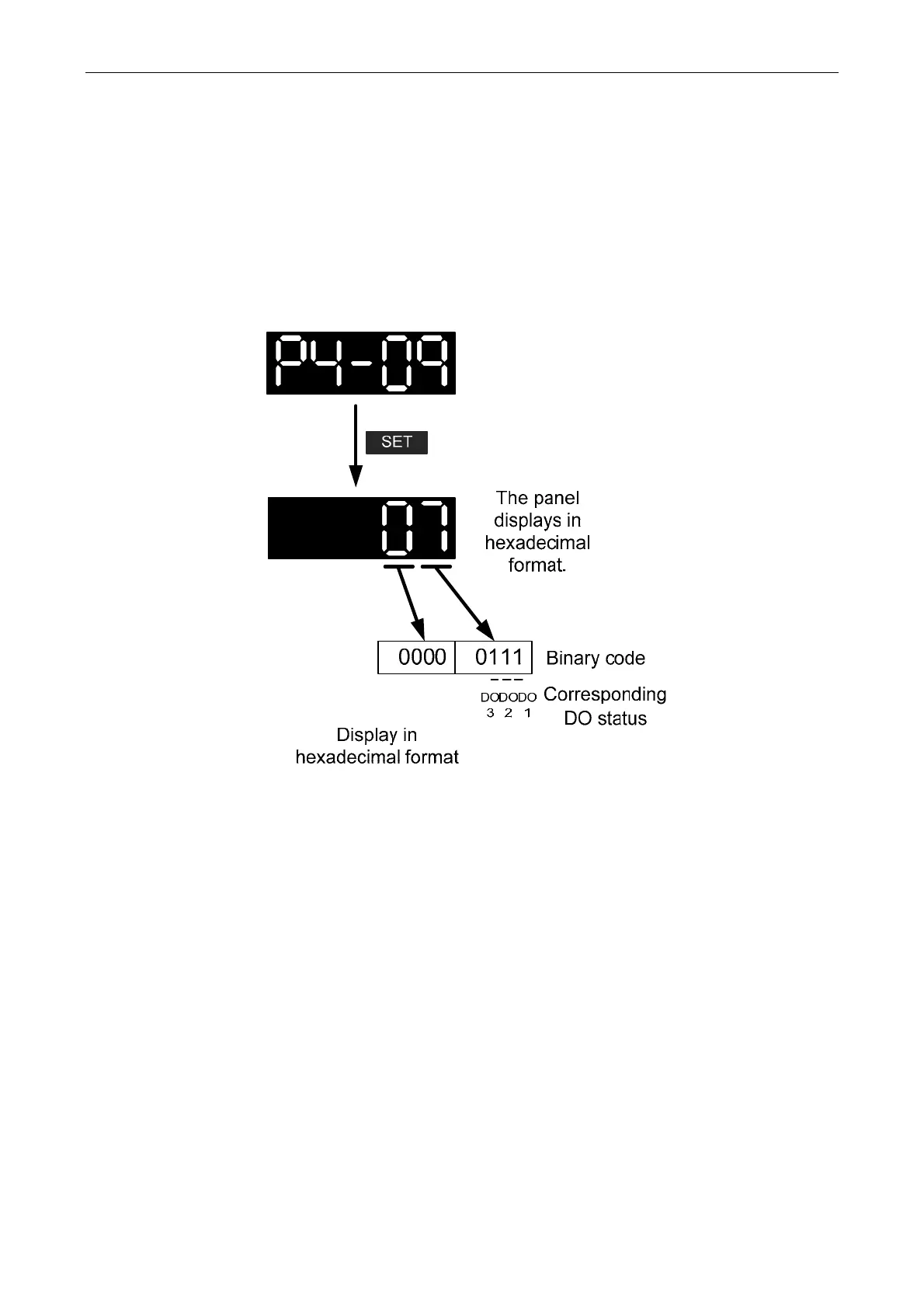

Enter into the Digital Output Diagnosis Mode by the following setting methods. The output
signal DO1~DO3 is ON and the corresponding signal will be shown on the panel. It is
displayed by bit. When it shows bit, it means it is ON.
For example, if it shows 07, 7 is in hexadecimal format, it will be 0111 when it transfers to
binary format. Then, DO1~DO3 is ON.
