ASDA-M Chapter 2 Installation
Revision December, 2014 2-3
2.4 Installation Direction and Space
Notes:

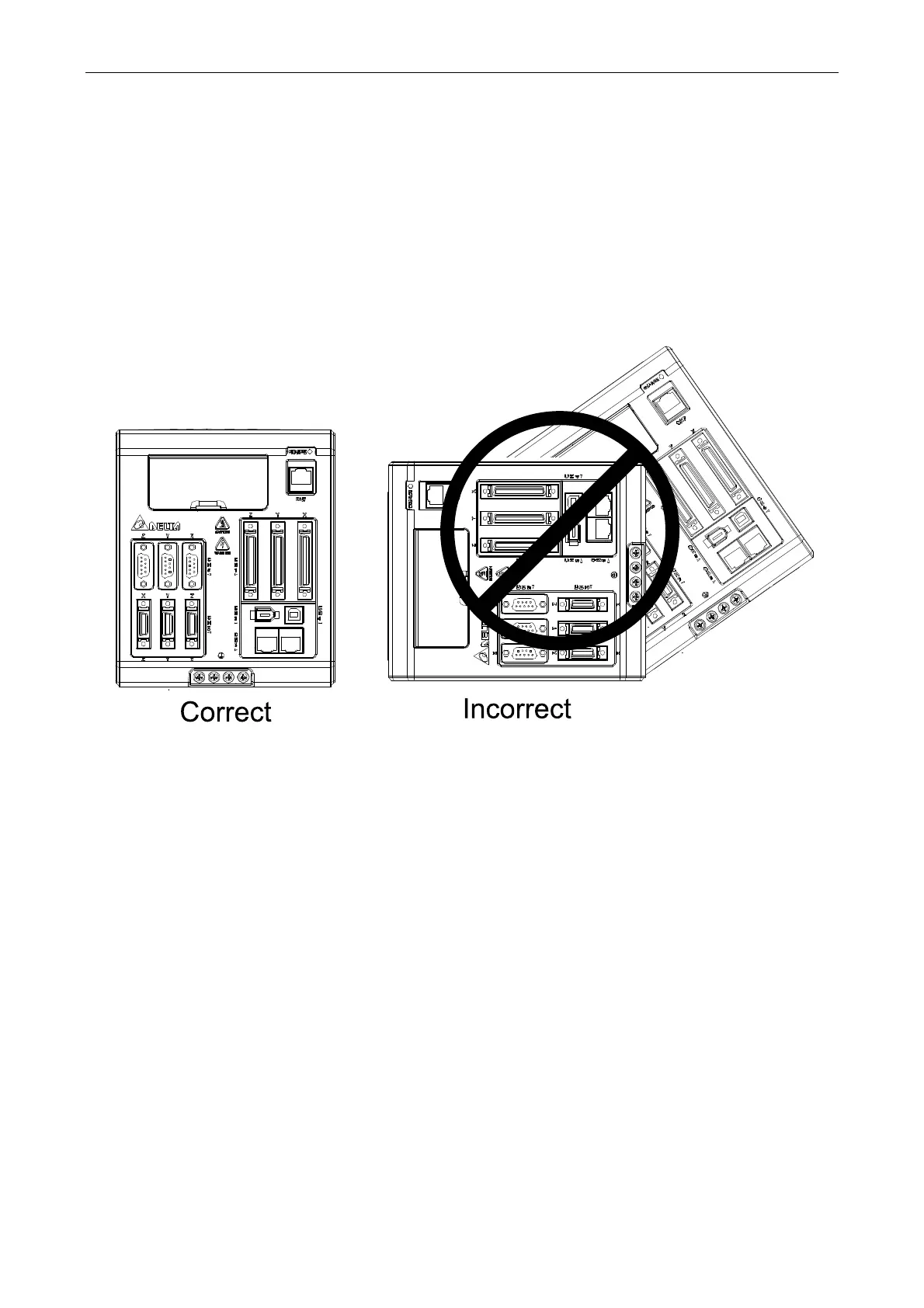

Follow the instructions for installation direction. Otherwise it is possible to cause
malfunction. In order to have well-cooling and circulation effect, the enough space between
adjacent objects and the baffle is needed. Or it might result in malfunction. When installing
AC servo drive, do not seal the suction hole and the vent hole. Do not place the drive in a
horizontal direction, or it might cause malfunction.
