Chapter 5 Trial Operation and Tuning ASDA-M
5-12 Revision December, 2014

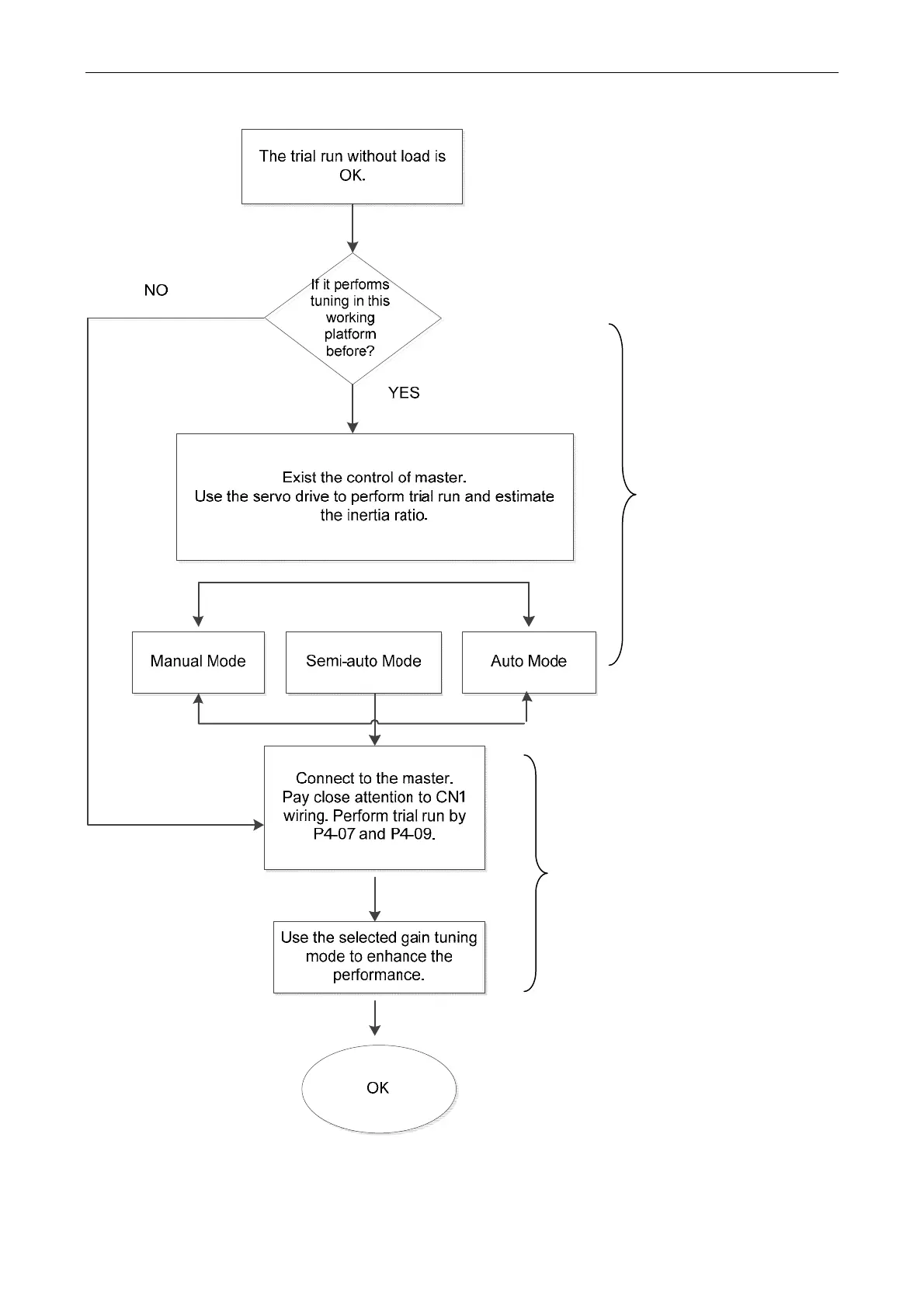

5.6.1 Flowchart of Tuning Procedure
If the measurement of
inertia ratio is incorrect, it
cannot obtain the best
performance of tuning.
1. Understand the required specification is
a must.
2. Resonance can be suppressed by
P2-23 and P2-24.
To Next Page
