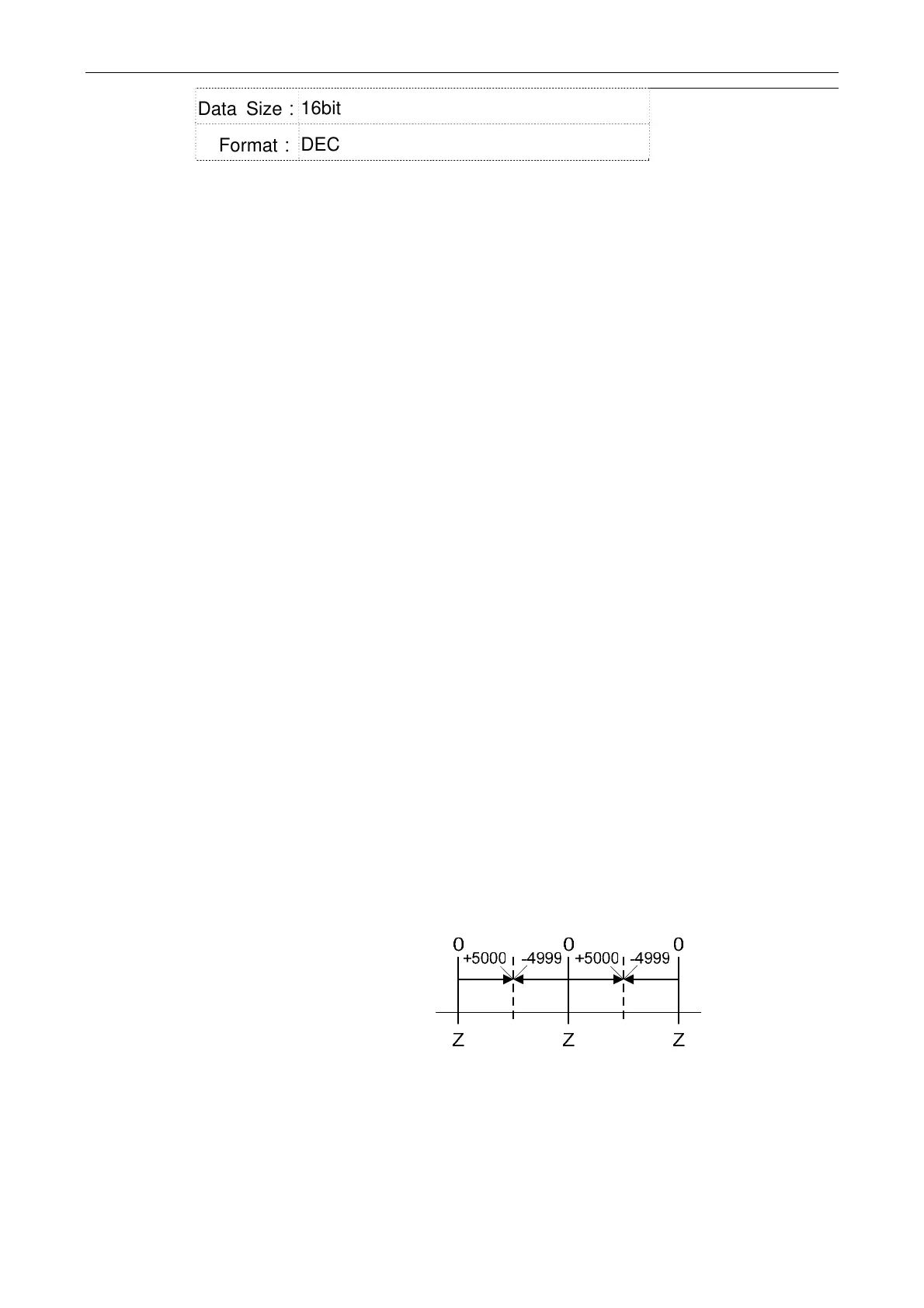

ASDA-M Chapter 8 Parameters
Revision December, 2014 8-17
Data Size
16bit
Format
DEC
Settings 00 Motor feedback pulse number (after the scaling of
electronic gear ratio) [PUU]
01Input pulse number of pulse command (after the scaling of
electronic gear ratio) [PUU]
02Deviation between control command pulse and feedback
pulse number[PUU]
03 The number of motor feedback pulse [Encoder unit,
1,280,000 Pulse/rev]
04Input pulse number of pulse command (before the scaling of
electronic gear ratio) [Encoder unit, 1,280,000 Pulse/rev]
05Deivation pulse number (before the scaling of electronic gear
ratio) [Encoder unit, 1,280,000 Pulse/rev]
06The frequency of pulse command input [Kpps]
07Motor speed [r/min]
08Speed command input [Volt]
09Speed command input [r/min]
10Torque command input [Volt]
11Torque command input [%]
12Average torque [%]
13Peak torque [%]
14Main circuit voltage (BUS voltage)[Volt]
15Load/motor inertia ratio [0.1times]
16IGBT temperature
17The frequency of resonance suppression
18The distance from the current position to Z. The range of the
value is between -5000 and +5000.
The interval of the two Z-phase pulse command if
10000 Pulse.
19Mapping Parameter #1P0-25
20Mapping Parameter #2P0-26
21Mapping Parameter #3P0-27
