Delta ASDA-M Series User Manual

Chapter 8 Parameters ASDA-M
8-46 Revision December, 2014

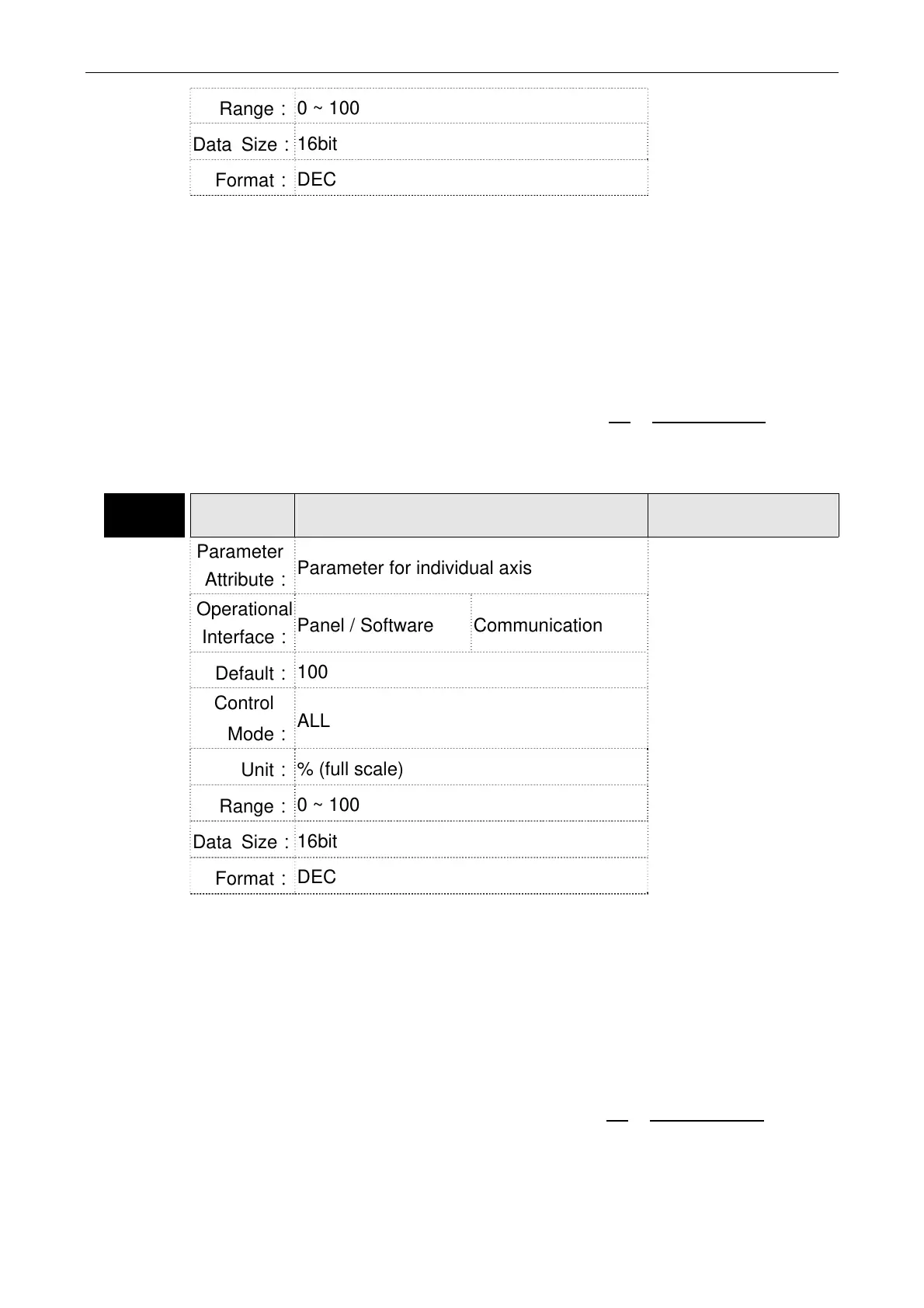

Range：
0 ~ 100
Data Size：
16bit
Format：
DEC
Settings：
Please refer to parameter P0-03 for the setting of analog output
selection.
For example:
P0-03 = 0x1101 (MON1 is the motor speed analog output of X
axis)
When the output voltage value of MON1 is V1:
Motor speed  Max. speed 
V1
8

XaxisP1  04
100
P1-05 MON2
MON2 Analog Monitor Output
Proportion
Address: 0108H
0109H
Parameter
Attribute：
Parameter for individual axis
Related Section:
Section 6.6.3
Operational
Interface：
Panel / Software Communication
Default：
100
Control
Mode：
ALL
Unit：
% (full scale)
Range：
0 ~ 100
Data Size：
16bit
Format：
DEC
Settings：
Please refer to parameter P0-03 for the setting of analog output
selection.
For example:
P0-03 = 0x 1110 (MON2 is the motor speed analog output of X
axis)
When the output voltage value of MON2 is V2:
Motor speed  Max. speed 
V2
8

XaxisP1  05
100
