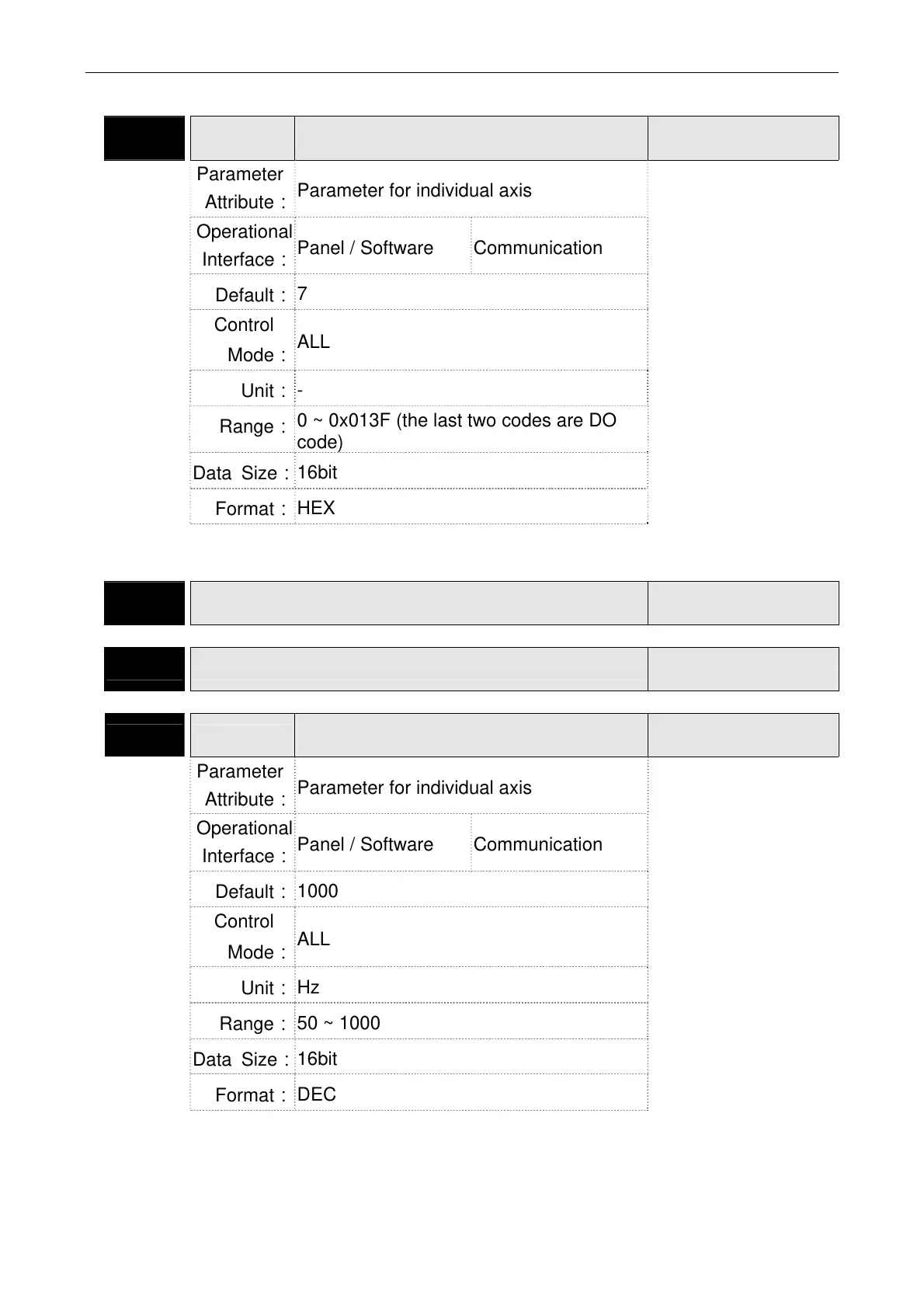

ASDA-M Chapter 8 Parameters
Revision December, 2014 8-91
P2-20 DO3 DO3 Functional Planning
Address: 0228H
0229H
Parameter
Attribute：
Parameter for individual axis
Related Section:
Table 8.2
Operational
Interface：
Panel / Software Communication
Default：
7
Control
Mode：
ALL
Unit：
-
Range：
0 ~ 0x013F (the last two codes are DO
code)
Data Size：
16bit
Format：
HEX
Settings：
Please refer to the description of P2-18
P2-21 Reserved
Address: 022AH
022BH
P2-22 Reserved
Address: 022CH
022DH
P2-23 NCF1
Resonance Suppression (Notch filter)
(1)
Address: 022EH
022FH
Parameter
Attribute：
Parameter for individual axis
Related Section:
Section 6.3.7
Operational
Interface：
Panel / Software Communication
Default：
1000
Control
Mode：
ALL
Unit：
Hz
Range：
50 ~ 1000
Data Size：
16bit
Format：
DEC
Settings：
The first setting value of resonance frequency. If P2-24 is set to 0,
this function is disabled. P2-43 and P2-44 are the second Notch
filter.
