Delta ASDA-M Series

ASDA-M Chapter 8 Parameters
Revision December, 2014 8-103
Data Size：
16bit
Format：
DEC
Settings：
The second setting value of resonance frequency. If P2-44 is set
to 0, this function is disabled. P2-23 and P2-24 are the first
Notch filter.

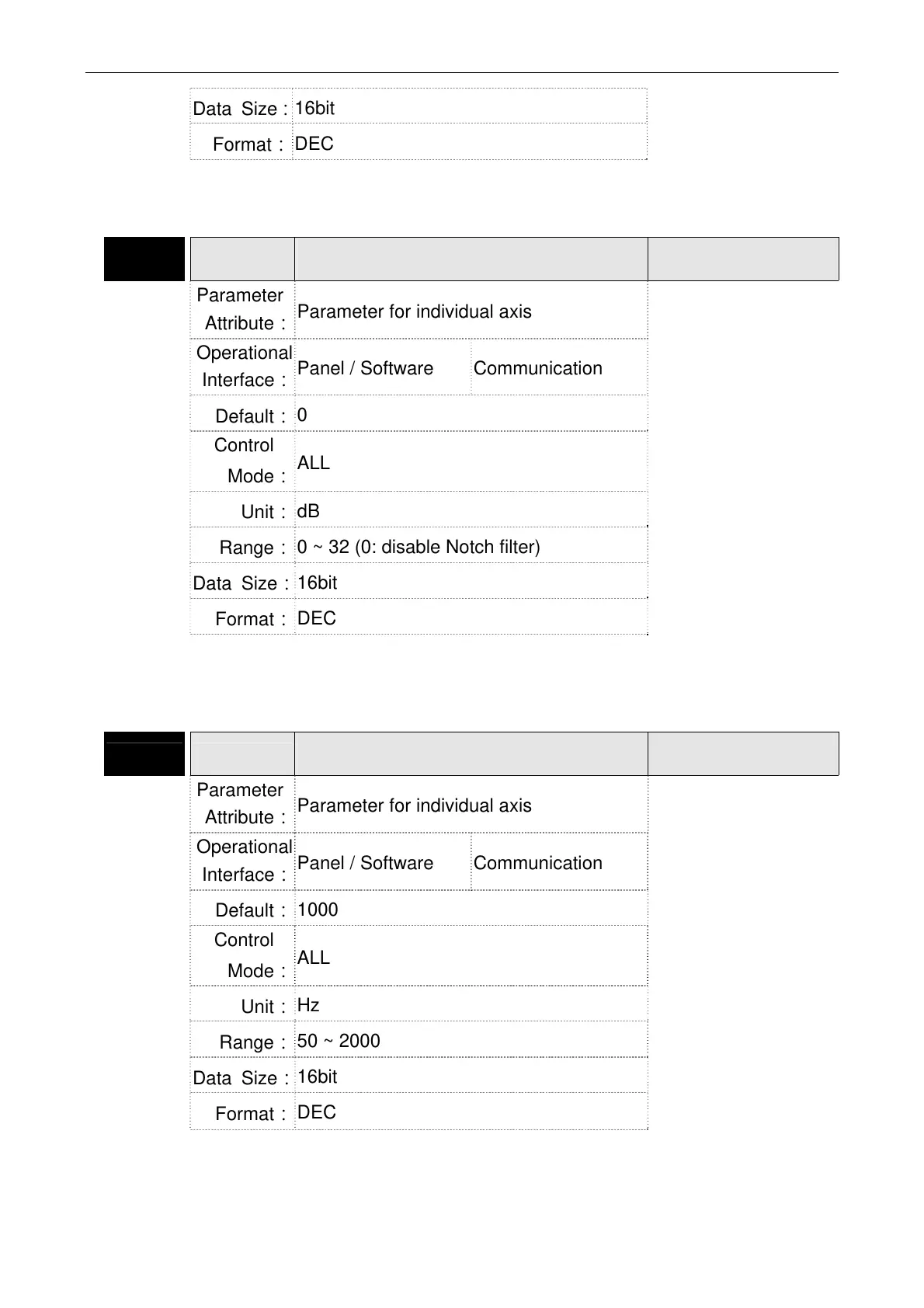

P2-44 DPH2
Resonance Suppression (Notch filter)
Attenuation Rate (2)
Address: 0258H
0259H
Parameter
Attribute：
Parameter for individual axis
Related Section:
Section 6.3.7
Operational
Interface：
Panel / Software Communication
Default：
0
Control
Mode：
ALL
Unit：
dB
Range：
0 ~ 32 (0: disable Notch filter)
Data Size：
16bit
Format：
DEC
Settings：
The second resonance suppression (notch filter) attenuation rate.
When this parameter is set to 0, the function of Notch filter is
disabled.
P2-45 NCF3
Resonance Suppression (Notch filter)
(3)
Address: 025AH
025BH
Parameter
Attribute：
Parameter for individual axis
Related Section:
Section 6.3.7
Operational
Interface：
Panel / Software Communication
Default：
1000
Control
Mode：
ALL
Unit：
Hz
Range：
50 ~ 2000
Data Size：
16bit
Format：
DEC
