Delta ASDA-M Series User Manual

ASDA-M Chapter 8 Parameters
Revision December, 2014 8-187

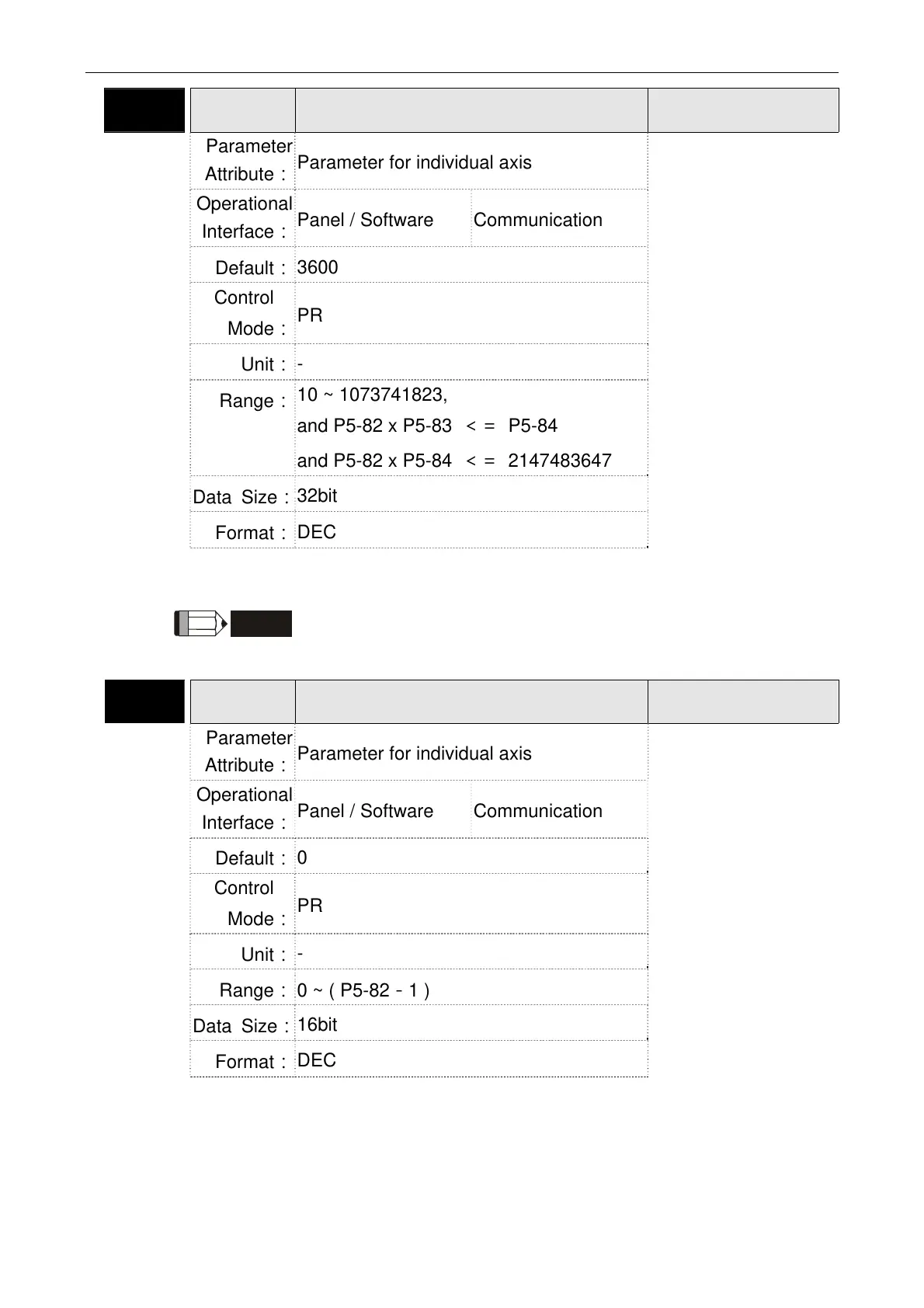

P5-84 ECMP E-CAM: Master Gear Ratio Setting P
Address: 05A8H
05A9H
Parameter
Attribute：
Parameter for individual axis
Related Section:
Section 7.11
Operational
Interface：
Panel / Software Communication
Default：
3600
Control
Mode：
PR
Unit：
-
Range：
10 ~ 1073741823,
and P5-82 x P5-83 ＜＝ P5-84
and P5-82 x P5-84 ＜＝ 2147483647
Data Size：
32bit
Format：
DEC
Settings：
When receiving pulse number P of the Master, E-Cam will rotate
M circle, which means the M cycle of the cam table.
NOTE
This parameter can be modified anytime, and has no limit that
mentioned above.
P5-85 ECME E-CAM: Number of Area
Address: 05AAH
05ABH
Parameter
Attribute：
Parameter for individual axis
Related Section:
Section 7.11
Operational
Interface：
Panel / Software Communication
Default：
0
Control
Mode：
PR
Unit：
-
Range： 0 ~ ( P5-82－1 )
Data Size：
16bit
Format：
DEC
Settings：
The area number of E-cam when E-cam engaged.
