Delta ASDA-M Series User Manual

ASDA-M Chapter 9 Communication
9-2 Revision December, 2014

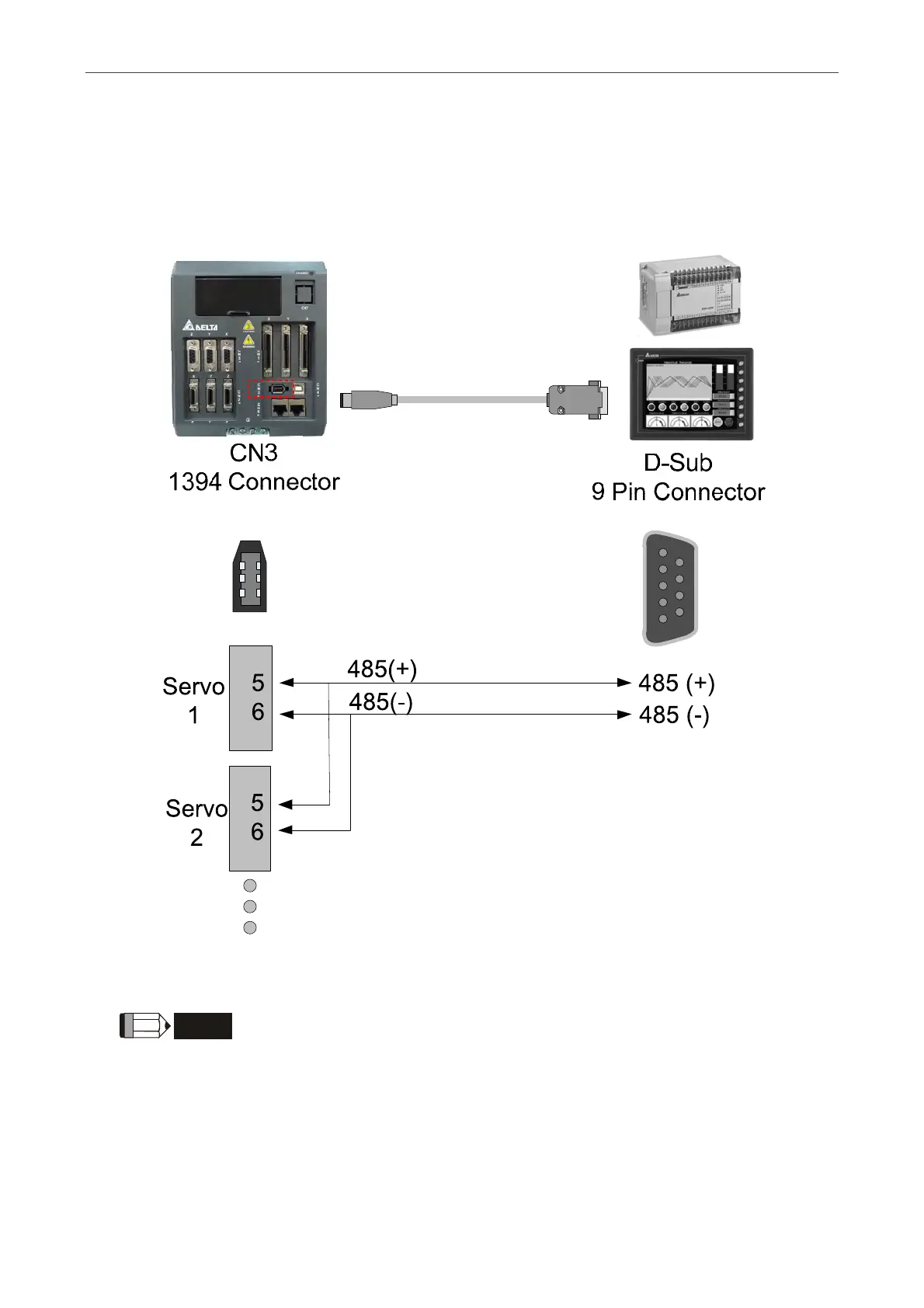

RS-485
 Configuration
NOTE
1) 100 meters of communication cable is suitable for less
interference environment. If the transmission speed is over
38400bps, the length of communication cable should not longer
than 15 meters so as to ensure the accuracy of transmission.
2) Numbers shown in the above diagram represent the pin number
of each connector.
3) Please use the power supply unit whose direct current is over 12
volt.
