ASDA Series Application Note Application Examples
March, 2015 3-47

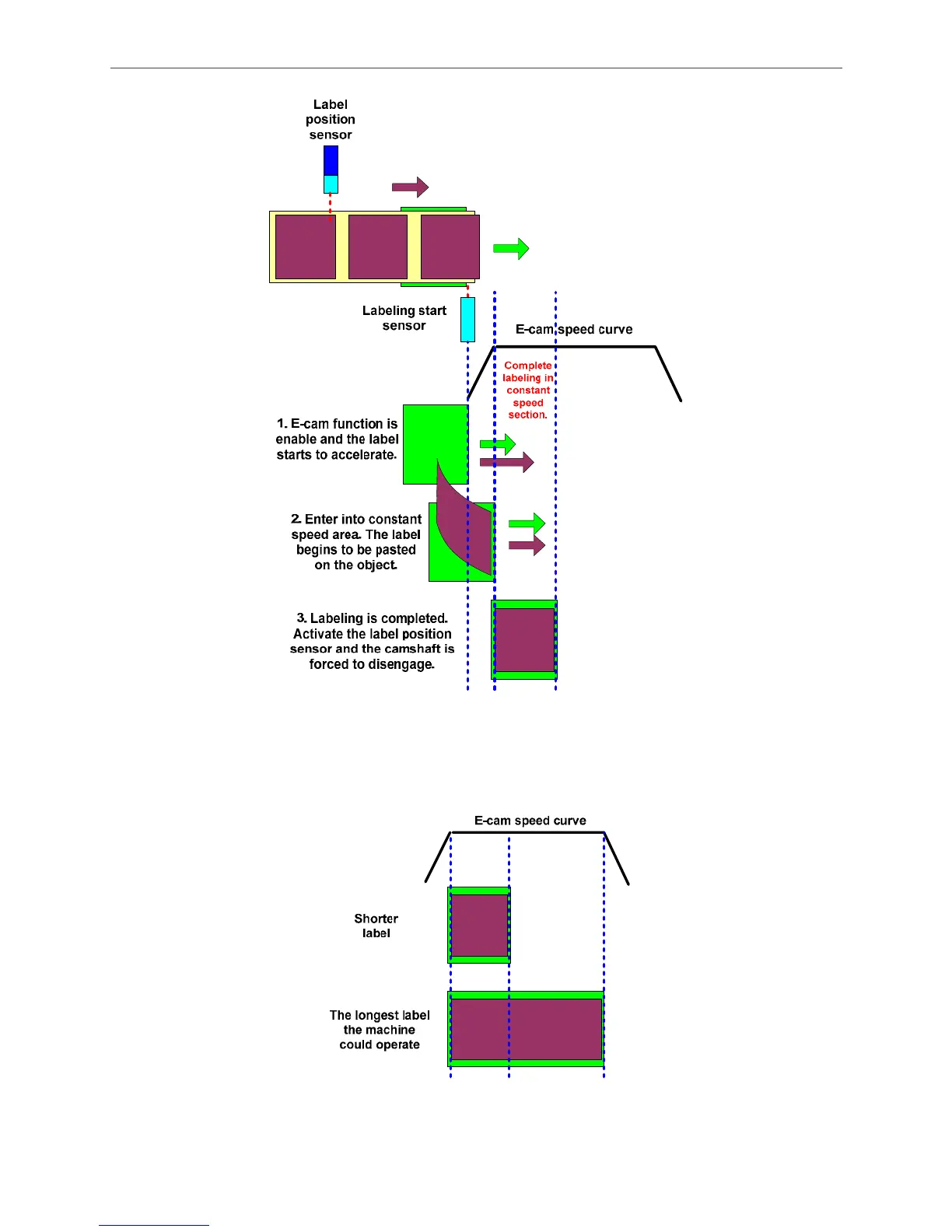

Figure 3.3.9 Labeling and E-cam curve
From Figure 3.3.9, a long constant speed section is needed in E-cam curve. Thus, the maximum
label length the machine may operate should be considered. See Figure 3.3.10.
Figure 3.3.10 labeling length and E-cam curve
