Delta ASDA Series - PR Program and Execution

Application Examples ASDA Series Application Note
3-44 March, 2015
3.3.3.3 PR Program and Execution

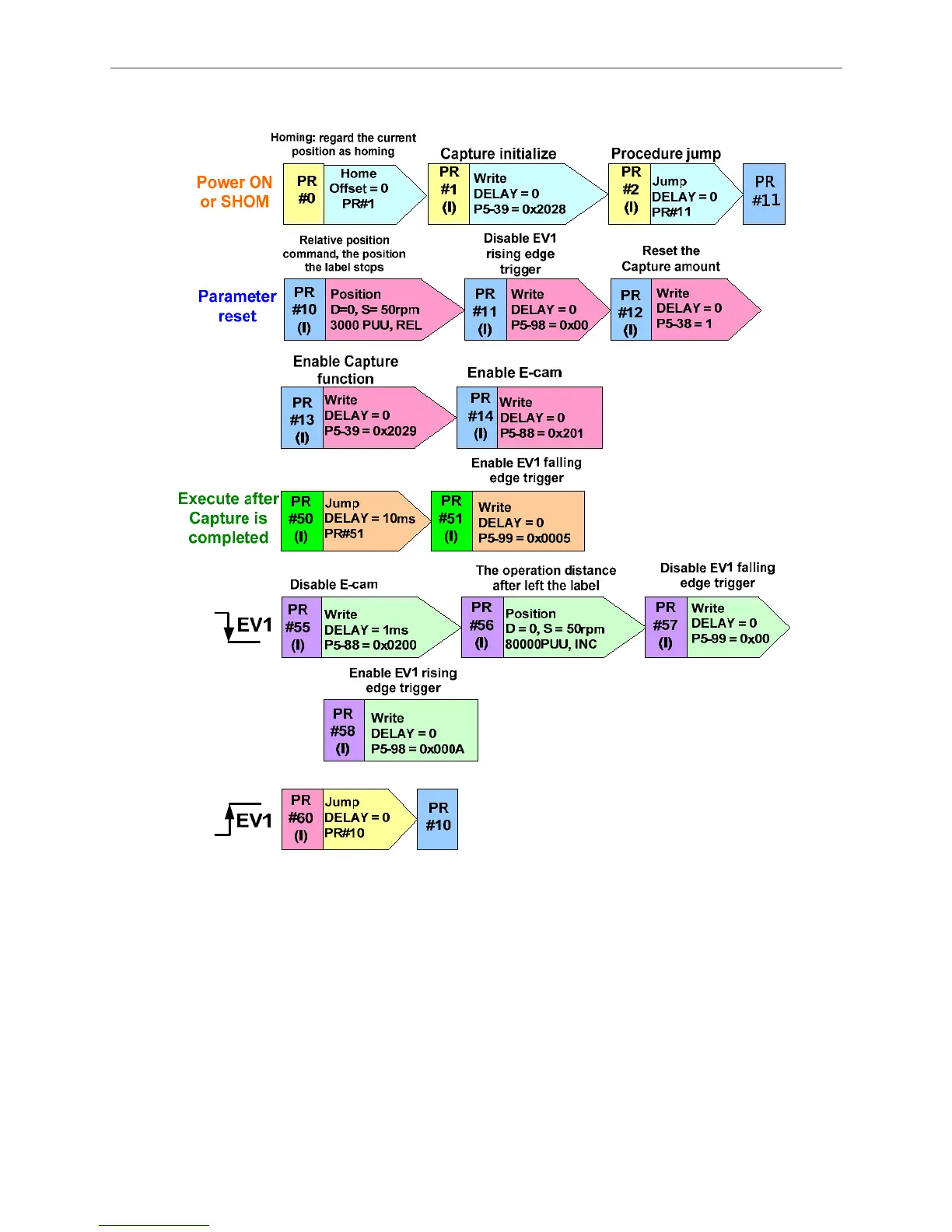

Figure 3.3.6 PR program and execution
PR#0: Homing. Due to the design of mechanical structure, when enabling the function, regard
the stop position as the homing position will do.
PR#1: Initialize Capture function. After Capture function is completed, call PR#50.
PR#2: Jump to the initialized program, PR#11.
PR#10: Relative position command controls the label stop position, see Figure 3.3.7. When the
camshaft returns to the original point, this program will not be executed, unless it is in
normal cycle.
