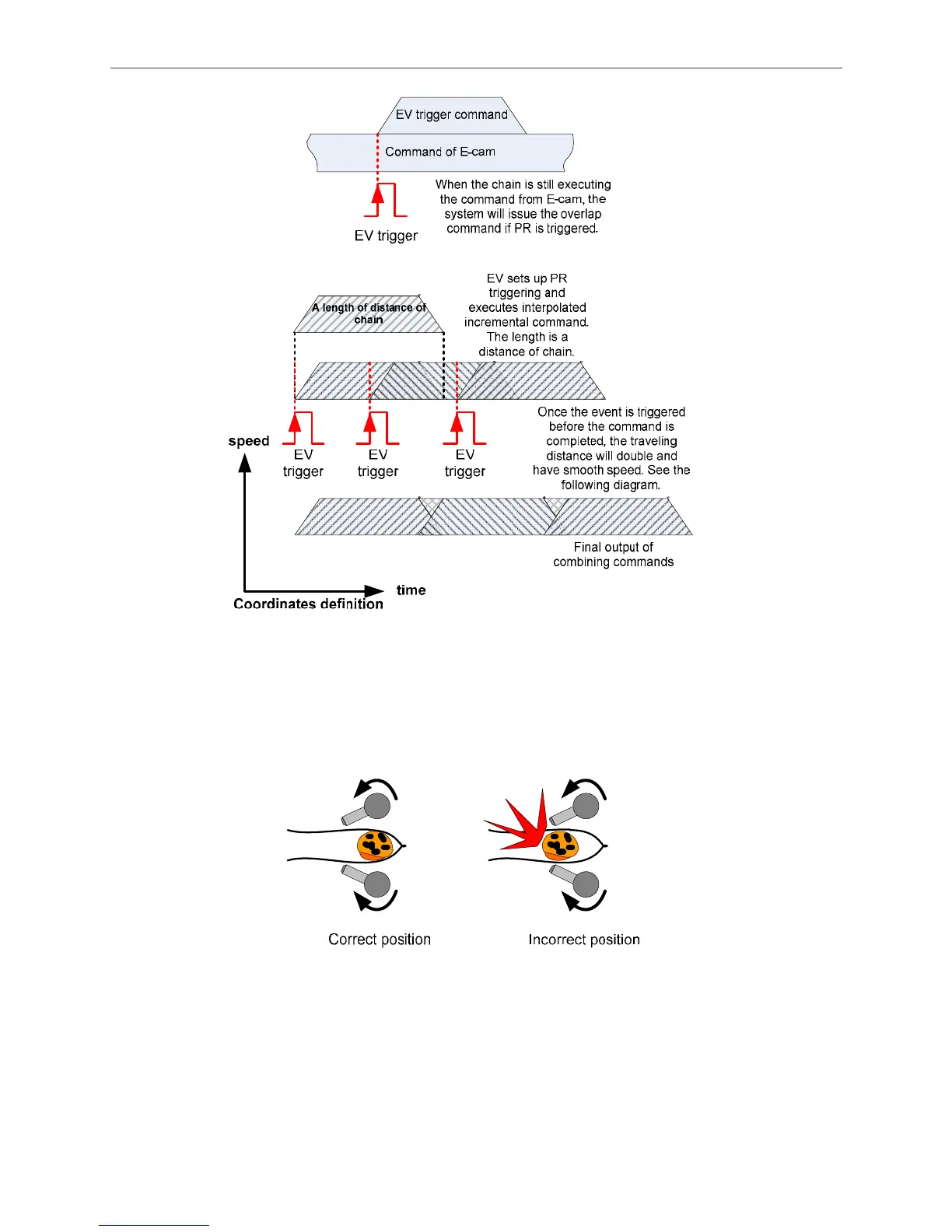

Figure 3.6.9 The combination of empty pack command
Cutting skip with incorrect object position
Before cutting, if the package is in wrong position, in order to avoid the wrong cutting and
damage the mechanism, proper defense mechanism is a must. See Figure 3.6.10.
Figure 3.6.10 Shift of package
Double-layer of protection is provided by ASDA-A2. If the wrong position of package is detected
before entering the cutting area, the disengaged condition could be changed to periodically
disengaging. (P5-88.U=C. If P5-88.U is set to 4 as the disengaged condition, when P5-92=0 and
the camshaft is in high speed operation, it will cause non-continuous speed at 360 degrees of the
