Delta ASDA Series User Manual

Application Examples ASDA Series Application Note
3-94 March, 2015

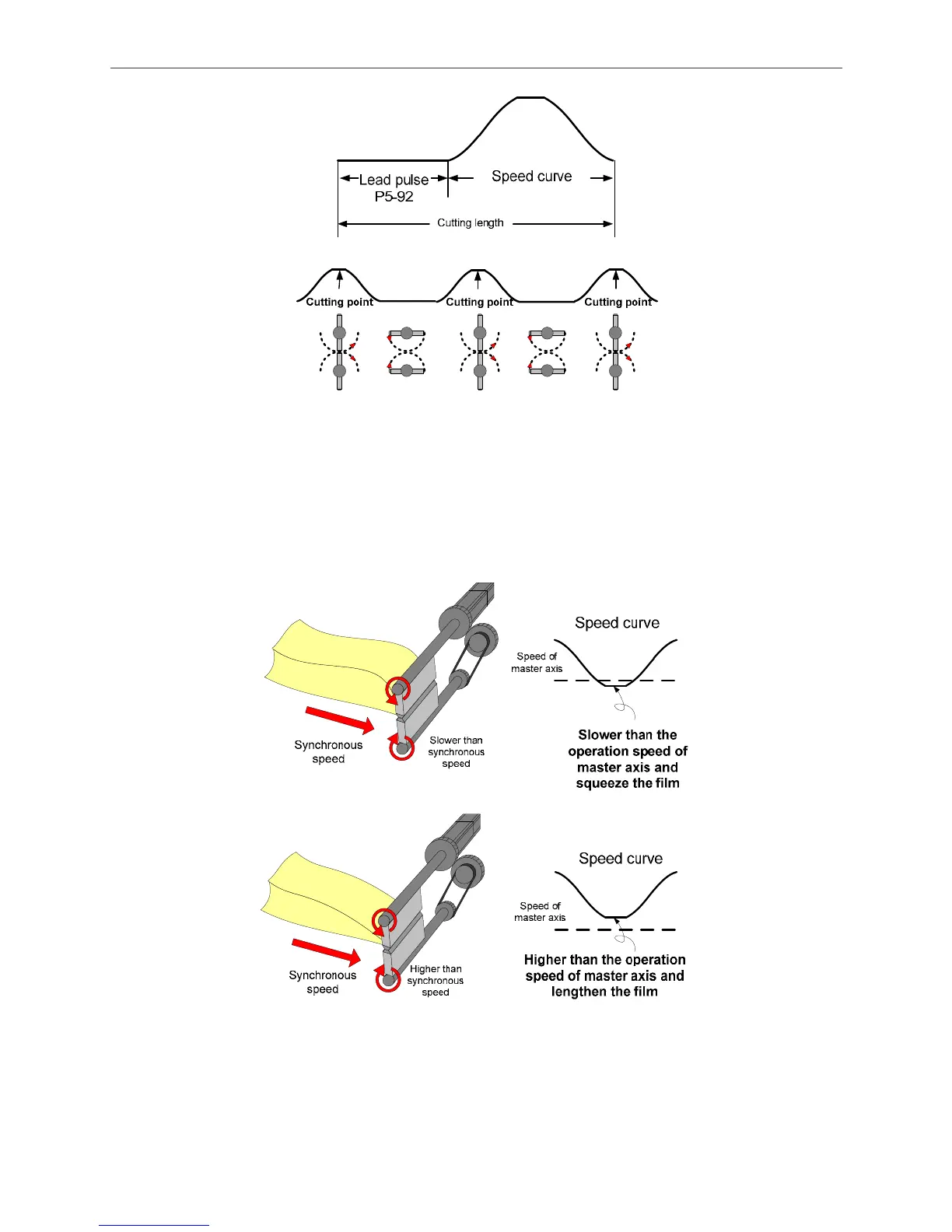

Figure 3.6.16 Use lead pulse to lengthen the cutting length
Cutting speed compensation
While cutting, the cutting speed will be faster or slower than the film feeding speed base on some
specific requirement. When the cutting speed is slower than the speed of synchronous zone, the
film will be squeezed. If the cutting is faster, then it will lengthen the film. It is easy to do speed
compensation by ASDA-A2. See Figure 3.6.17.
Figure 3.6.17 Compensation of synchronous speed

Delta ASDA Series Specifications

General

Control Modes	Position, Speed, Torque
Communication Interface	RS-485, CANopen, Modbus
Feedback	Incremental encoder, Absolute encoder
Protection	Overvoltage, Undervoltage, Overcurrent, Overtemperature
Power Supply	Single-phase or three-phase AC
Output Power	50W to 15kW (depending on the specific model within the series)
