Delta DPS Series User Manual

123
No. Icon/ Text
Button
Function
(Yes or
No)
Text/
Digital
Display
(Yes or
No)
Symbol
Display
(Yes or
No)
Description
17

Indicates bypass static switch status
(Green: ON/ Gray: Abnormal or OFF).
18

Indicates rectifier status (Green: Normal/
Gray: Waiting or OFF).
19
 
1. Indicates inverter status (Green:
Normal/ Gray: Waiting or OFF).
2. Inverter output screen shortcut button.
20
  
1. Indicates output status (Green:
Normal/ Gray: No Output).
2. Shows load capacity (%).
3. UPS output screen shortcut button.

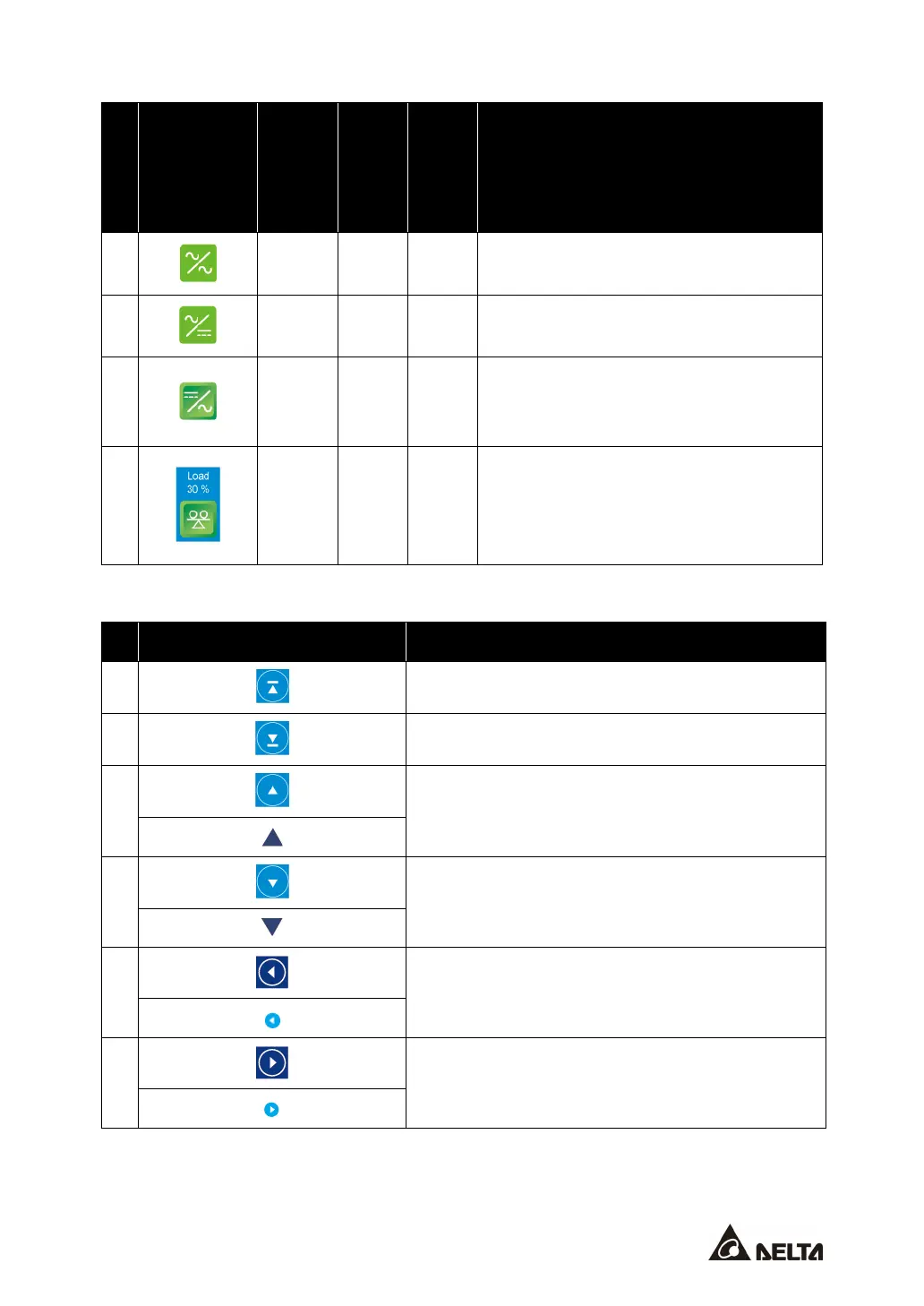

Other icons on the touch panel are shown in the table below.
No. Icon Function
1
Goes to the top page.
2
Goes to the last page.
3
Moves up.
4
Moves down.
5
Goes to the previous page.
6
Goes to the next page.

Delta DPS Series Specifications

General

Frequency	50/60 Hz
Battery Type	Sealed Lead-Acid (SLA)
Communication Interface	RS-232, USB, SNMP (Optional)
Output Voltage	220/230/240VAC
Topology	Double Conversion
Form Factor	Tower or Rackmount
Power Factor	0.9
Type	Online UPS
Protection Features	Short Circuit
