2 Functions of Devices in DVP-PLC
DVP-PLC Application Manual
2-119

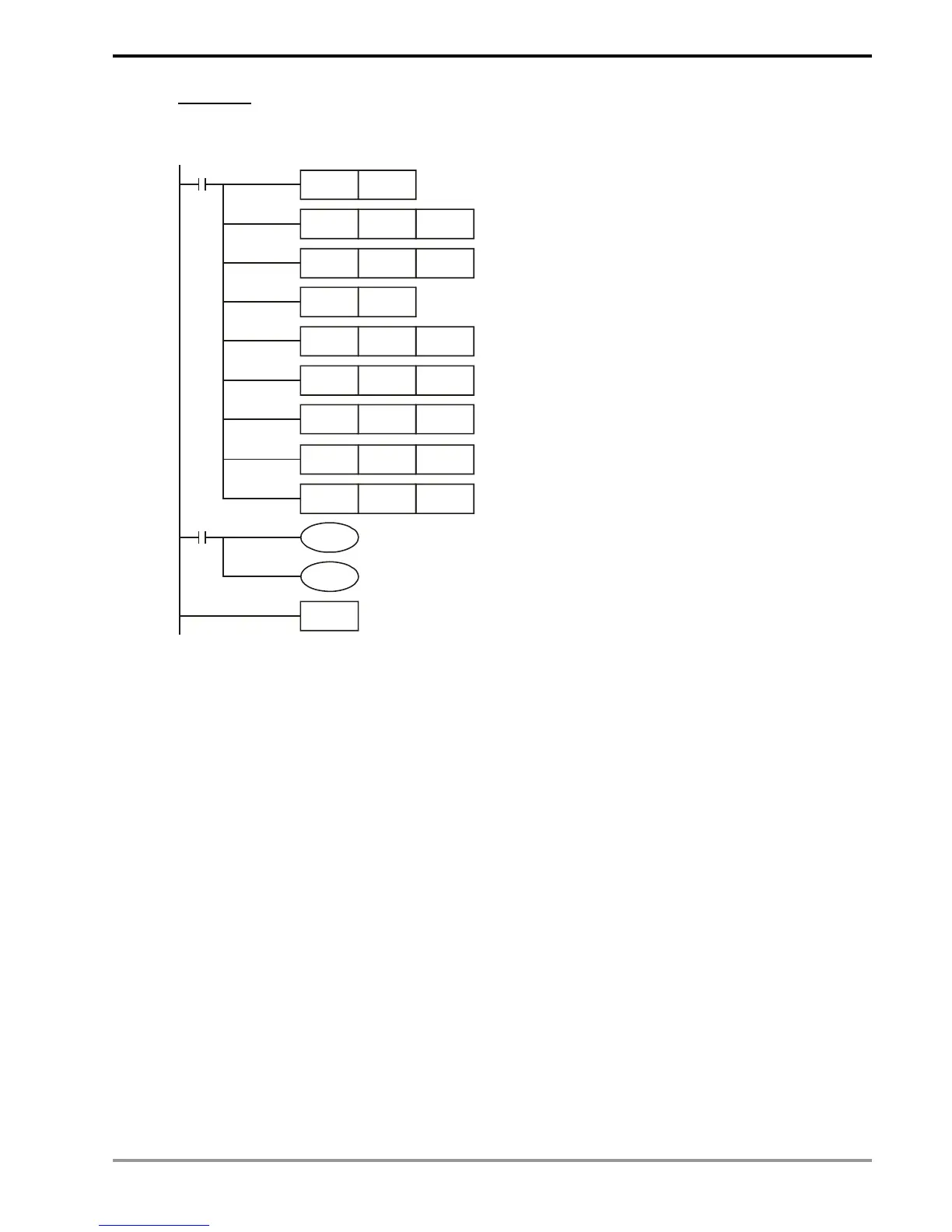

a) Example 1:
Enabling 32 slave units linkage and up to 100 data for exchange in EASY EASY PLC LINK by
M1353
M1002
SET M1353
MOV K17 D1121
H86 D1120
K2000
K3000
K300
K48
K48
M1351
END
MOV
SET M1120
MOV
MOV
MOV
MOV
MOV
D1480
D1496
D1129
D1434
D1450
M1350
X1
M1353 has to be set On before EASY EASY PLC LINK is enabled. When EASY EASY PLC LINK is
executed, On/Off of M1353 will not affect the execution.
Registers designated in D1480 ~ D1495, D1576~D1591 (starting register for data read from Slave ID#1 ~
16) and D1496 ~ D1511, D1592 ~ D1607 (starting register for data written into Slave ID#1 ~ 16) can only
be register D, and every special D will correspond to one Slave ID#, e.g. D1480 corresponds to ID1,
D1481 to ID2, and so on.
D1480 ~ D1495, D1576 ~ D1591, D1496 ~ D1511 and D1592 ~ D1607 have to be set before EASY EASY
PLC LINK is enabled. In the execution of EASY EASY PLC LINK, you can modify the contents in these
special Ds, but the modified results will take effect in the next EASY EASY PLC LINK polling.
If the ID# designated by D1480 ~ D1495, D1576 ~ D1591, D1496 ~ D1511 and D1592 ~ D1607 is smaller
than 0 or bigger than 9,900, PLC will automatically correct the ID# into 9,900.
If M1353 is not enabled during the execution of EASY PLC LINK, the range for D1434 ~ D1449, D1544 ~
D1559 (number of data read from Slave ID#) and D1450 ~ D1465, D1560 ~ D1575 (numbere of data
written into Slave ID#) will be 0 ~ 16. If the setting in the special D exceeds the range, PLC will correct it to
16. When M1353 is enabled, the range will be 0 ~ 100. If the setting in the special D exceeds the range,
PLC will correct it to 100.
