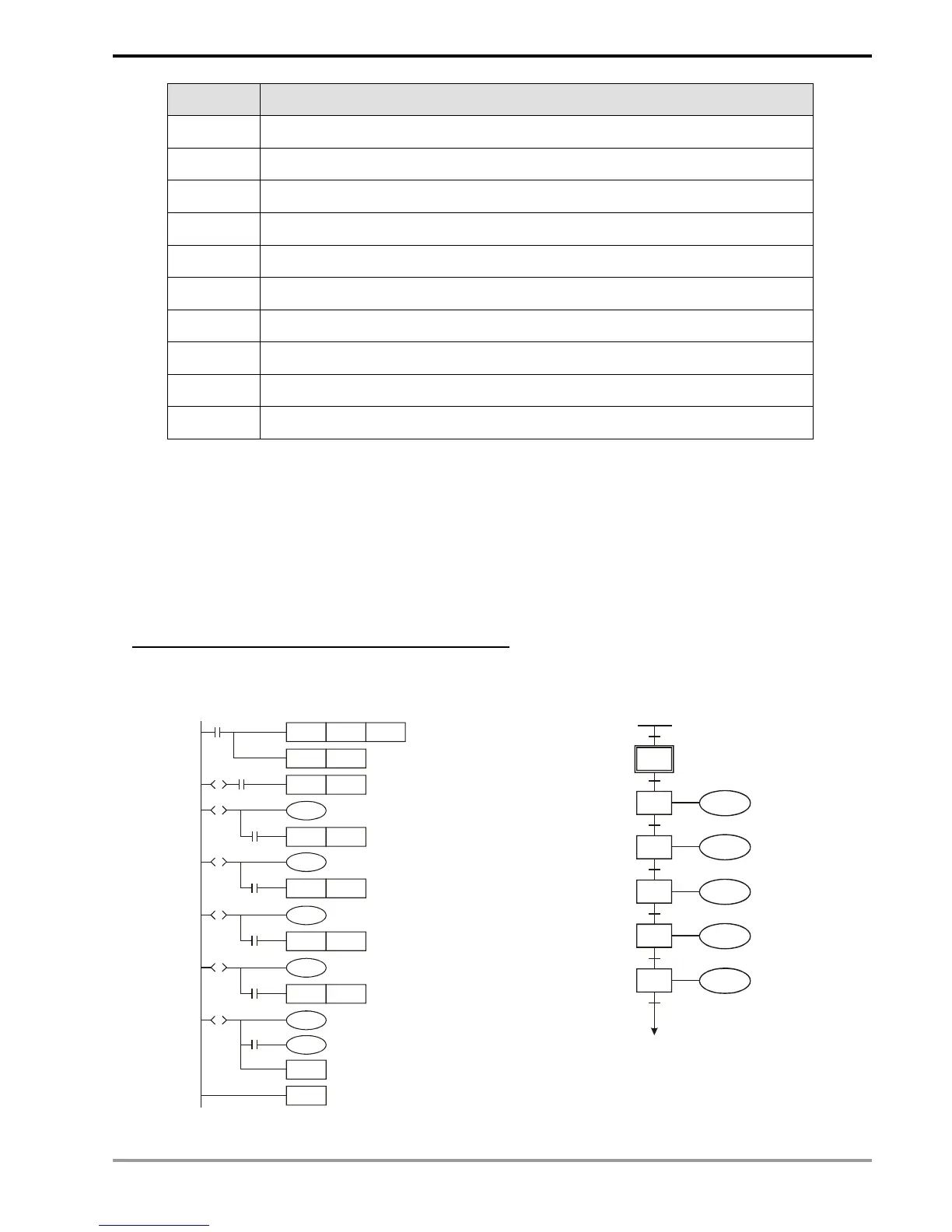

Delta DVP-PLC User Manual

4 Step Ladder Instructions
DVP-PLC Application Manual
4-9
Device No. Function
M1046 Setting STL status as On. On when any of the steps is On.
M1047 Enabling STL monitoring
D1040 On status of step No. 1
D1041 On status of step No. 2
D1042 On status of step No. 3
D1043 On status of step No. 4
D1044 On status of step No. 5
D1045 On status of step No. 6
D1046 On status of step No. 7
D1047 On status of step No. 8
4.5 Types of Sequences
Single Sequence: The basic type of sequences
The first step in a step ladder diagram is called the initial step, which can be S0 ~ S9. The steps following the
initial step are general steps, which can be S10 ~ S1023. If you are using IST instruction, S10 ~ S19 will become the
steps for zero return.
a) Single sequence without divergence and convergence
After a sequence is completed, the control power on the steps will be given to the initial step.
Step ladder diagram
M1002
ZRST S0 S127
SET S0
SET S20
Y0
SET S30
Y1
SET S40
Y4
S0
RET
END
X0S0
S
S20
S
X1
S30
S
X2
S60
S
X5
Y2
SET S50
S40
S
X3
Y3
SET S60
S50
S
X4
SFC:
S0
S20
S30
S40
S0
M1002
X0
X1
X2
X5
Y0
Y1
Y2
S50
X3
Y3
S60
X4
Y4
