6 Application Instructions API 00-49
DVP-PLC Application Manual
6-24
API Mnemonic Operands Function
15
BMOV P
Block Move
Controllers
ES/EX/SS SA/SX/SC EH/SV
Bit Devices Word Devices Program Steps Type
OP
X Y M S K H KnX KnY KnM KnS T C D E F
S
* * * * * * *
D
* * * * * *
n * * * * *
BMOV, BMOVP: 7 steps
PULSE 16-bit 32-bit
ES EX SS SA SX SC EH SV ES EX SS SA SX SC EH SV ES EX SS SA SX SC EH SV
Operands:
S: Start of source devices D: Start of destination devices n: Number of data to be moved
Explanations:
1. Range of n: 1 ~ 512
2. See the specifications of each model for their range of use.
3. The contents in n registers starting from the device designated by S will be moved to n registers starting from
the device designated by D. If n exceeds the actual number of available source devices, only the devices that
fall within the valid range will be used.

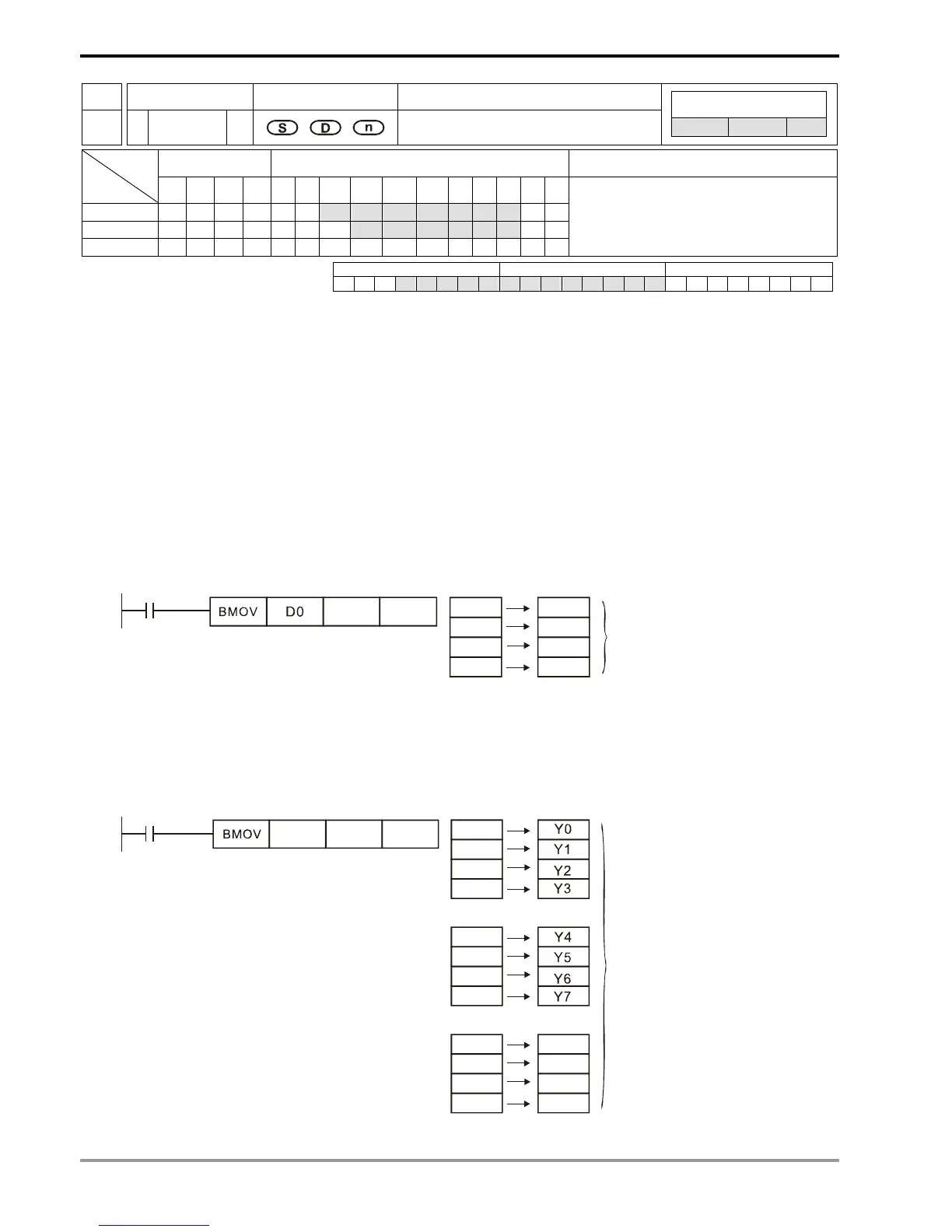

Program Example 1:
When X10 = On, the contents in registers D0 ~ D3 will be moved to the 4 registers D20 ~ D23.
X10
D20 K4
D0
D1
D2
D3
D20
D21
D22
D23
n=4
Program Example 2:
1. Assume the bit devices KnX, KnY, KnM and KnS are designated for moving, the number of digits of S and D has
to be the same, i.e. their n has to be the same.
2. ES/EX/SS do not support the use of KnX, KnY, KnM, KnS and E, F index register modification.
M1000
K1M0
K1Y0
K3
M0
M1
M2
M3
M4
M5
M6
M7
M8
M9
M10
n=3
M11
Y10
Y11
Y12
Y13
