6 Application Instructions API 00-49
DVP-PLC Application Manual
6-25

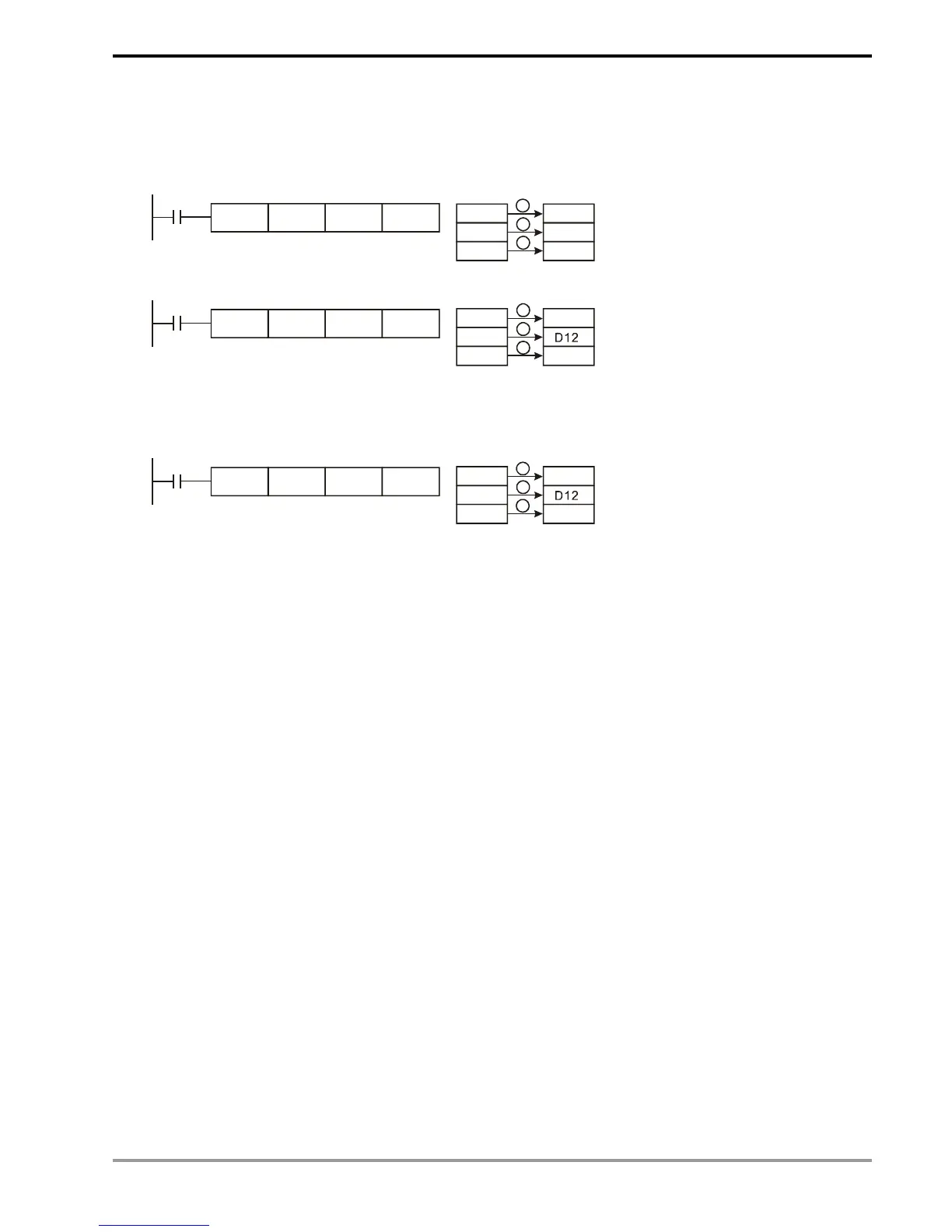

Program Example 3:
To avoid coincidence of the device numbers to be moved designated by the two operands and cause confusion,
please be aware of the arrangement on the designated device numbers.
1. When S > D, the instruction is processed following the order 123
X10
BMOV D20 D19 K3
D19
D20
D21
D20
D21
D22
2
1
3
2. In EH/EH2/SV, when S < D, the instruction is processed following the order 123
D11
D13
X11
BMOV D10 D11 K3
D10
D11
D12
1
3
2
3. In ESEX/SS/SA/SX/SC, when S < D, avoid the number difference of “1” and the instruction is processed
following the order 321. If the devices have the number difference of “1”, the contents in D11 ~ D13 will all
be the content in D10.
D11
D13
X11
BMOV D10 D11 K3
D10
D11
D12
1
3
2
