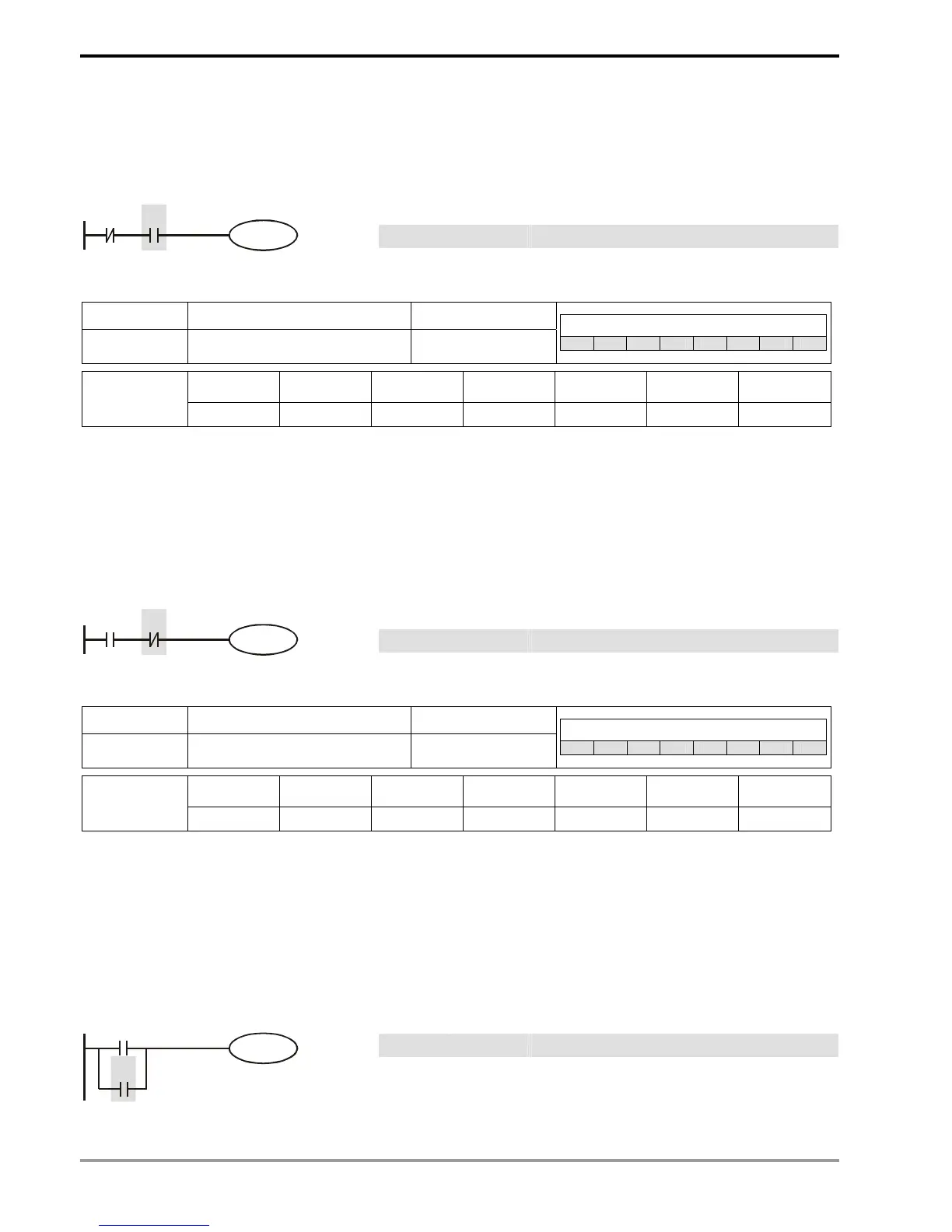

3 Basic Instructions
DVP-PLC Application Manual
3-4
series connection contacts and perform the “AND” operation with the logical operation result obtained. The final result
will be store in the accumulative register.
Program Example:
Ladder diagram: Instruction code: Operation:
LDI X1 Loading in contact B of X1
AND X0 Connecting to contact A of X0 in series
X0X1
Y1
OUT Y1 Driving Y1 coil
Mnemonic Function Program steps
ANI
Series connection- B contact 1
Controllers
ES EX SS SA SX SC EH SV
X0 ~ X377 Y0 ~ Y377 M0 ~ M4095 S0 ~ S1023 T0 ~ T255 C0 ~ C255 D0 ~ D9999
Operand
9 9 9 9 9 9
-
Explanations:
The ANI instruction is used in the series connection of B contact. The functions are to read out the status of present
designated series connection contacts and perform the “AND” operation with the logical operation result obtained.
The final result will be store in the accumulative register.
Program Example:
Ladder diagram: Instruction code: Operation:
LD X1 Loading in contact A of X1
ANI X0 Connecting to contact B of X0 in series
X0X1
Y1
OUT Y1 Driving Y1 coil
Mnemonic Function Program steps
OR
Parallel connection- A contact 1
Controllers
ES EX SS SA SX SC EH SV
X0 ~ X377 Y0 ~ Y377 M0 ~ M4095 S0 ~ S1023 T0 ~ T255 C0 ~ C255 D0 ~ D9999
Operand
9 9 9 9 9 9
-
Explanations:
The OR instruction is used in the parallel connection of A contact. The functions are to read out the status of present
designated parallel connection contacts and perform the “OR” operation with the logical operation result obtained.
The final result will be store in the accumulative register.
Program Example:
Ladder diagram: Instruction code: Operation:
LD X0 Loading in contact A of X0
OR X1 Connecting to contact A of X1 in parallel
X0
X1
Y1
OUT Y1 Driving Y1 coil
To Next Page
