Delta DVP-PLC User Manual

6 Application Instructions API 00-49
DVP-PLC Application Manual
6-31
10
1
10
0
10
2
6 4 2
X17
X0
8
8
8
10
3
6
8
Y37 Y20

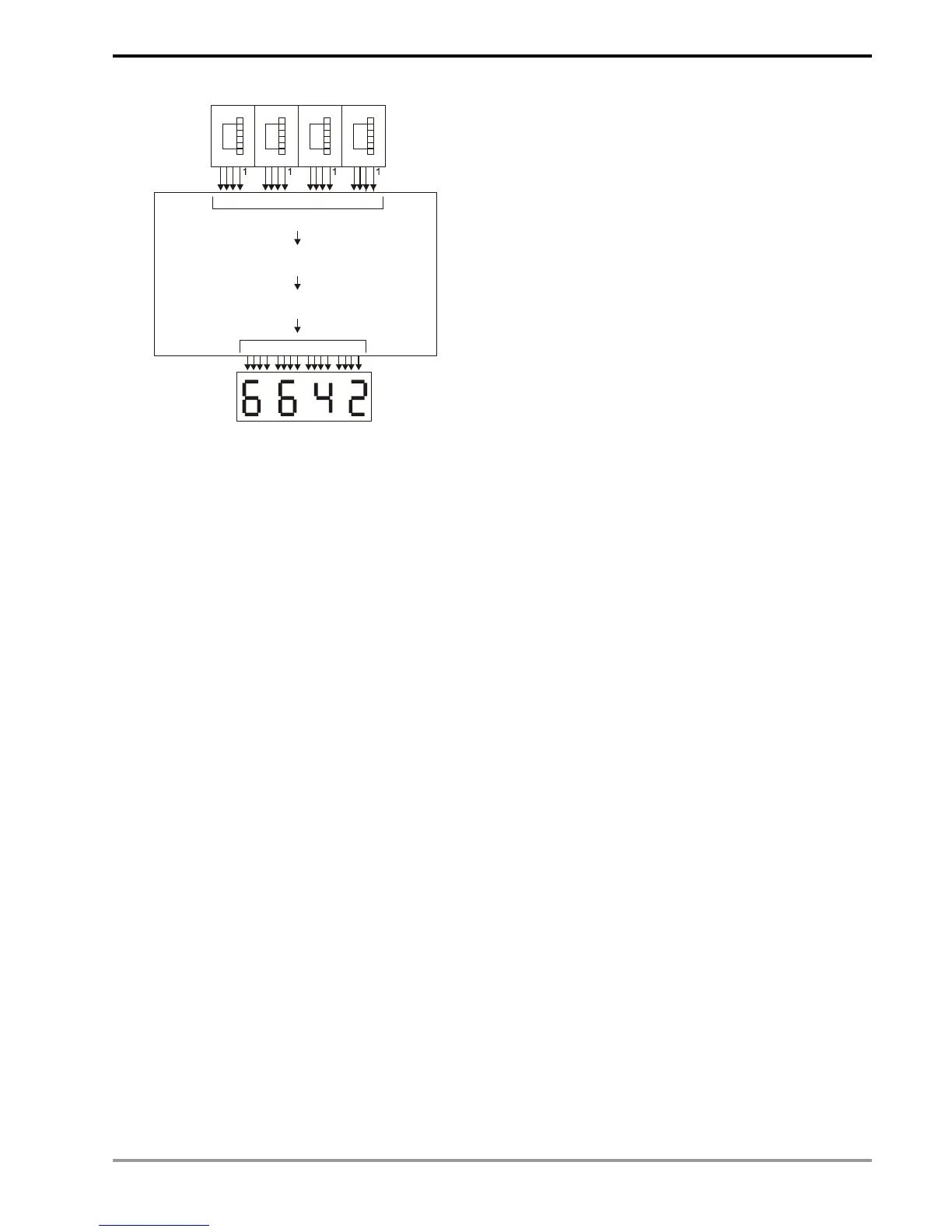

4-digit DIP switch in BCD format
4-digit BCD value
Using BIN instruction to store
the BIN value into D100
Using BCD instruction to convert the
content in D100 into a 4-digit BCD value.
4-digit 7-segment display in BCD format

Delta DVP-PLC Specifications

General

Manufacturer	Delta Electronics
Model	DVP-PLC
Category	Controller
Humidity	5% to 95% RH, non-condensing
Programming Language	Ladder Diagram (LD), Instruction List (IL), Sequential Function Chart (SFC)
CPU Type	Various, depending on the specific model within the DVP series (e.g., ES2, EX2, SX2, SA2, EH3, etc.)
Operating Temperature	Typically 0°C to 55°C (32°F to 131°F)
Storage Temperature	Typically -25°C to 70°C (-13°F to 158°F)
