Delta DVP-PLC User Manual

7 Application Instructions API 50-99
DVP-PLC APPLICATION MANUAL
7-22
D1151
0
1
2
0
3
4
0
5,000
10,000
15,000
M1153
0
100
200
300
400
500
(Hz)
Present value
in C251

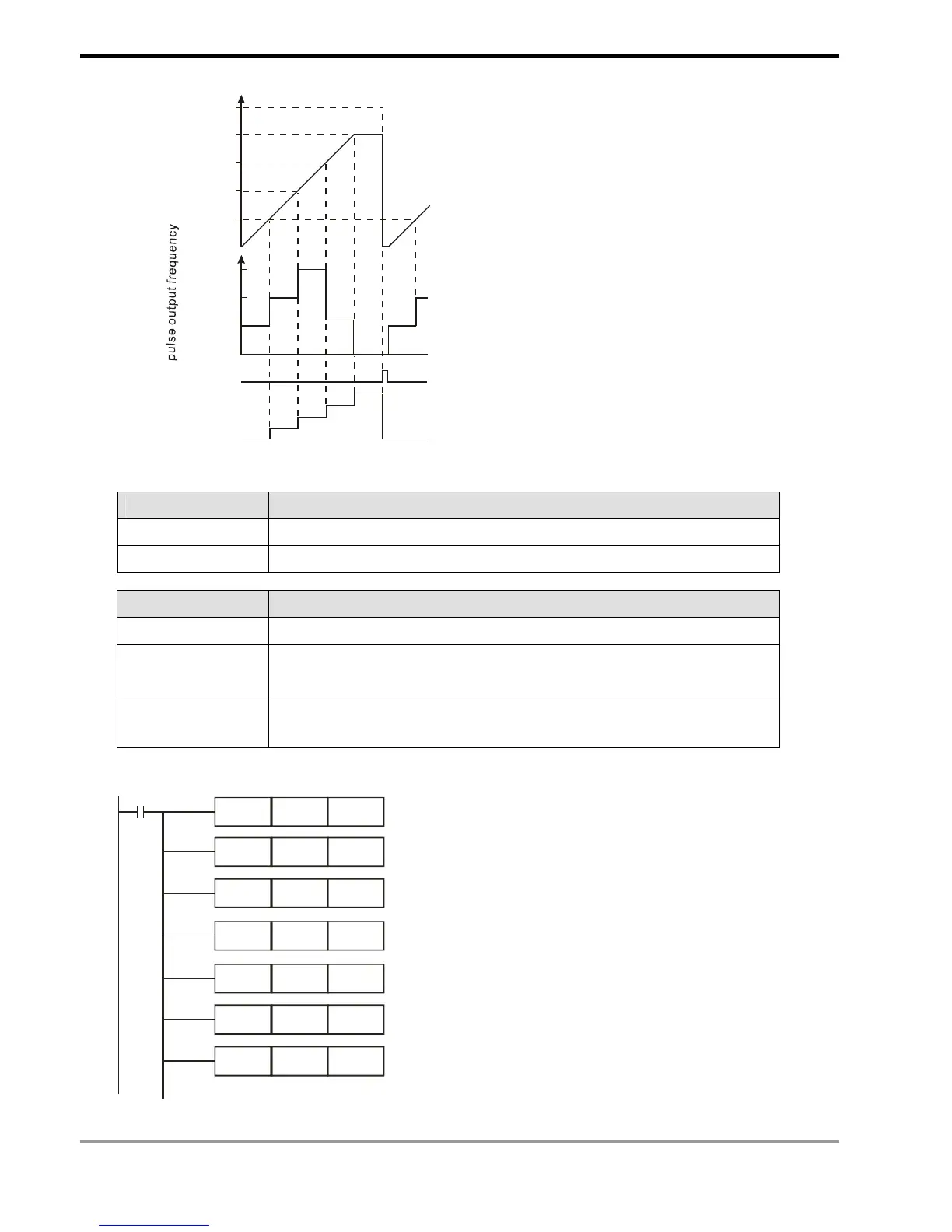

12. Special registers for flags and relevant settings:
Flag Function
M1152 DHSZ instruction in frequency control mode
M1153 The execution of DHSZ frequency control mode is completed.
Special D Function
D1151 Table counting register for DHSZ multiple set values comparison mode
D1152 (low word)
D1153 (high word)
In frequency control mode, DHSZ reads the upper and lower limits in the
table counting register D1153 and D1152.
D1336 (low word)
D1337 (high word)
Current number of pulses output by DPLSY instruction
13. The complete program:
X10
DMOVP K5000 D2
DMOVP K10000 D6
DMOVP K15000 D10
DMOVP K6000 D14
DMOVP
K0
D18
DMOVP K0 D0
DMOVP K100 D4
