Delta DVP-PLC User Manual

7 Application Instructions API 50-99
DVP-PLC APPLICATION MANUAL
7-71
1
2
4
8
10
3
10
2
10
1
10
0
Y20
Y21
Y22
Y23
Y27
Y26
Y25
Y24
Digit indication
LED
X21
X20
X22X23
Minus down
Move to left
Move to right

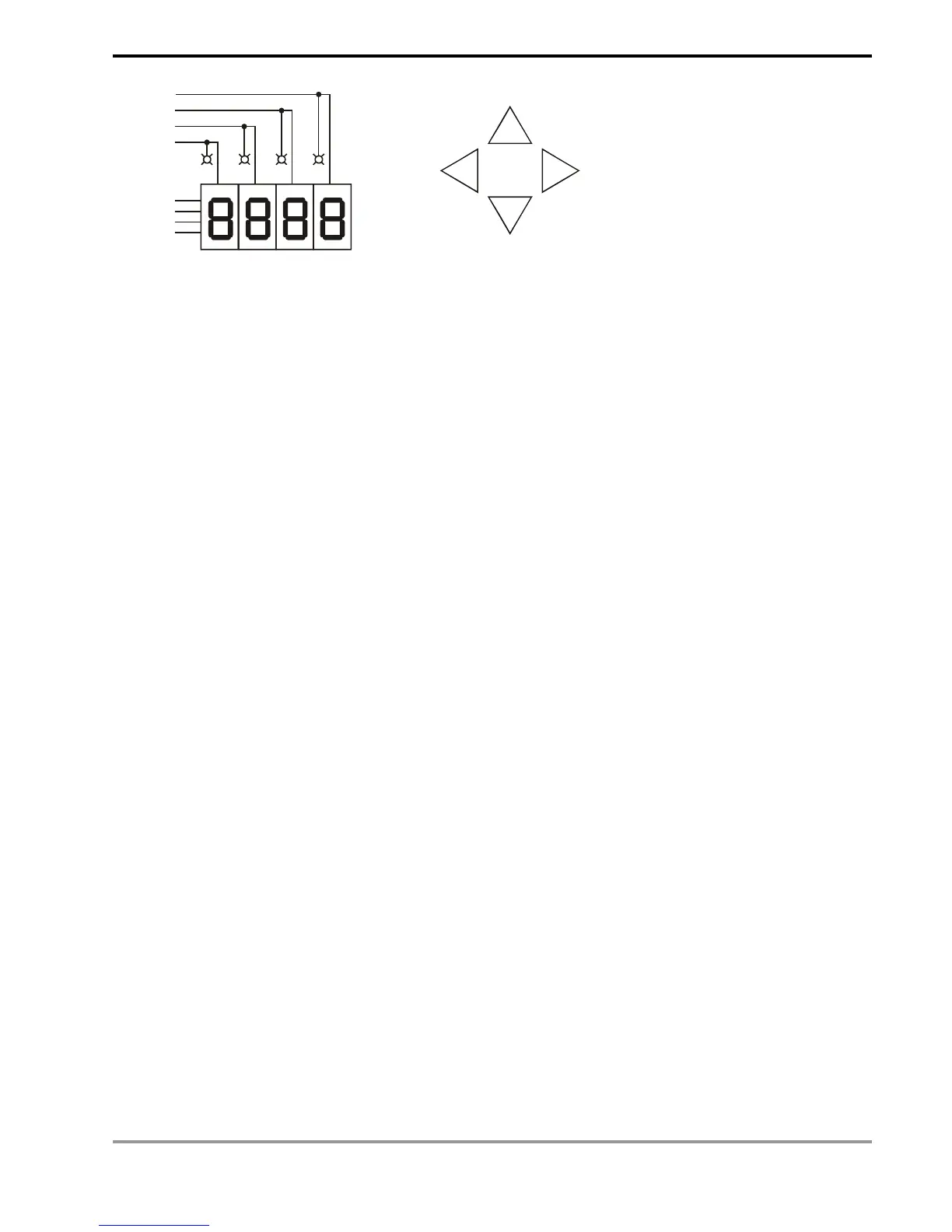

7-segment display for the 4-digit set value
Add up
The 4 switches are used for moving the digits
and increasing/decreasing set values.

Delta DVP-PLC Specifications

General

Manufacturer	Delta Electronics
Model	DVP-PLC
Category	Controller
Humidity	5% to 95% RH, non-condensing
Programming Language	Ladder Diagram (LD), Instruction List (IL), Sequential Function Chart (SFC)
CPU Type	Various, depending on the specific model within the DVP series (e.g., ES2, EX2, SX2, SA2, EH3, etc.)
Operating Temperature	Typically 0°C to 55°C (32°F to 131°F)
Storage Temperature	Typically -25°C to 70°C (-13°F to 158°F)
