9 Application Instructions API 150-199
DVP-PLC Application Manual
9-20
EH/EH2/SV series MPU, Y0: D1337, D1336; Y2: D1339, D1338, Y4: D1376, D1375; Y6: D1378, D1377. For
SC series MPU, Y10: D1348, D1349; Y11: D1350, D1351. In this way, you can keep track of the position of the
machine at any time. However, due to that the data will be lost when the power of the PLC is switched off, you
have to enter the zero point position of the machine when executing zero return for the first time.
Program Example:
When M10= On, Y0 output pulses start to operate zero return at the frequency of 20KHz. When the zero return meets
DOG X15 = On, Y0 output pulses will start to operate by creep speed 1KHz until X15 is Off.
M10
ZRN K20000 K1000
X15
Y0
Remarks:

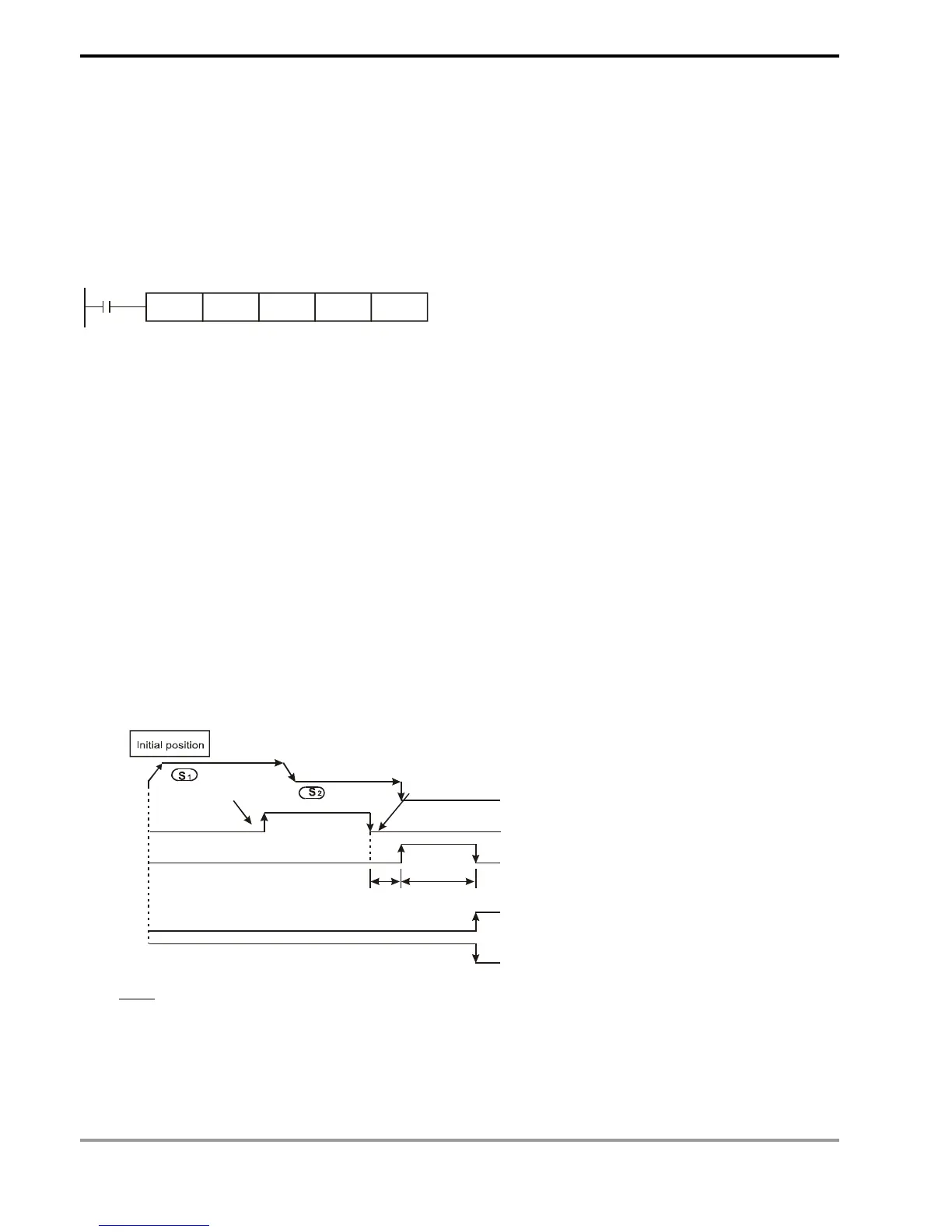

1. Timing chart of the reset signal output for EH/EH2/SV series MPU. (SC series MPU does not support this
function.)
a) When the reset signal flag M1346 = On, after zero return is completed, the PLC can send the reset signal to
the servo drive and the signal will last for approximately 20ms. After 20ms, the reset signal will return to Off
again.
b) Output devices for reset signals of EH series MPU:
CH0 (Y0, Y1) reset output device (Y4)
CH1 (Y2, Y3) reset output device (Y5)
c) Output devices for reset signals of EH2/SV series MPU:
CH0 (Y0, Y1) reset output device (Y10)
CH1 (Y2, Y3) reset output device (Y11)
CH2 (Y4, Y5) reset output device (Y12)
CH3 (Y6, Y7) reset output device (Y13)
Off
On
On
Off
DOG ON
Zero return speed
Scan in circle
Creep speed
Reset signal
Output near point signal (DOG)
Reset signal Y4 or Y5
M1336, M1337
Pulse output monitor
Inside 1 ms
Greater than 20ms
Program interrupt
Note:
The designated devices, X, Y, M, and S, other than the external input devices X10 ~ X17 will be affected
by the scan period, 2 times of the scan period at worst.
