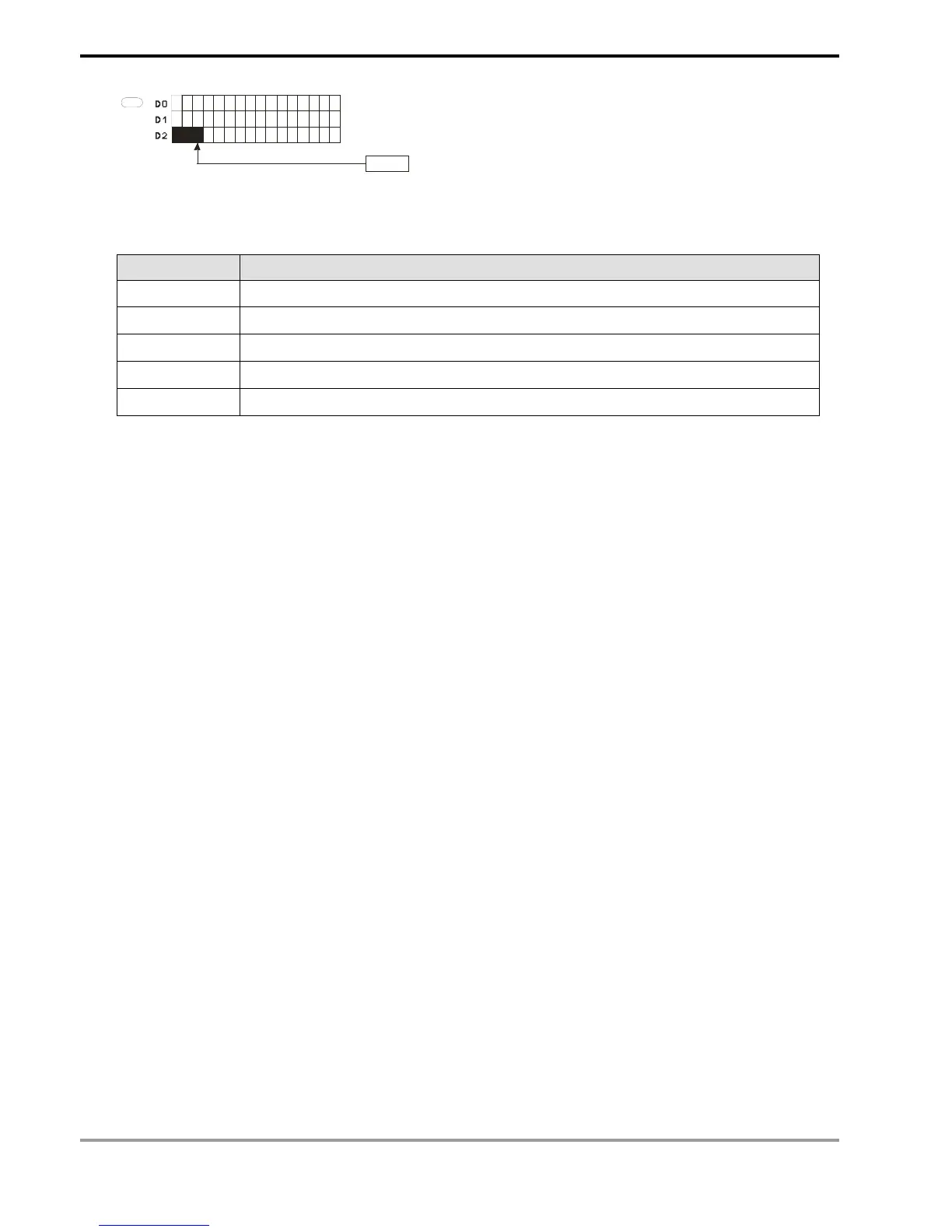

Delta DVP-PLC User Manual

9 Application Instructions API 150-199
DVP-PLC Application Manual
9-68
b0
D20
45
10101010101101
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1101010101010
b47
S
0
01
01
Pointer
Remarks:
Flag explanations:
Flags Function
M1088 Matrix search end flag. When the comparison reaches the last bit, M1089 = 1.
M1092 Matrix pointer error flag. When the pointer Pr exceeds its range, M1092 = 1.
M1093 Matrix pointer increasing flag. Adding 1 to the current value of the Pr.
M1094 Matrix pointer clear flag. Clearing the current value of the Pr to 0.
M1095 Matrix rotation/displacement/output carry flag.

Delta DVP-PLC Specifications

General

Manufacturer	Delta Electronics
Model	DVP-PLC
Category	Controller
Humidity	5% to 95% RH, non-condensing
Programming Language	Ladder Diagram (LD), Instruction List (IL), Sequential Function Chart (SFC)
CPU Type	Various, depending on the specific model within the DVP series (e.g., ES2, EX2, SX2, SA2, EH3, etc.)
Operating Temperature	Typically 0°C to 55°C (32°F to 131°F)
Storage Temperature	Typically -25°C to 70°C (-13°F to 158°F)
