Delta DVP-PLC User Manual

9 Application Instructions API 150-199
DVP-PLC Application Manual
9-74

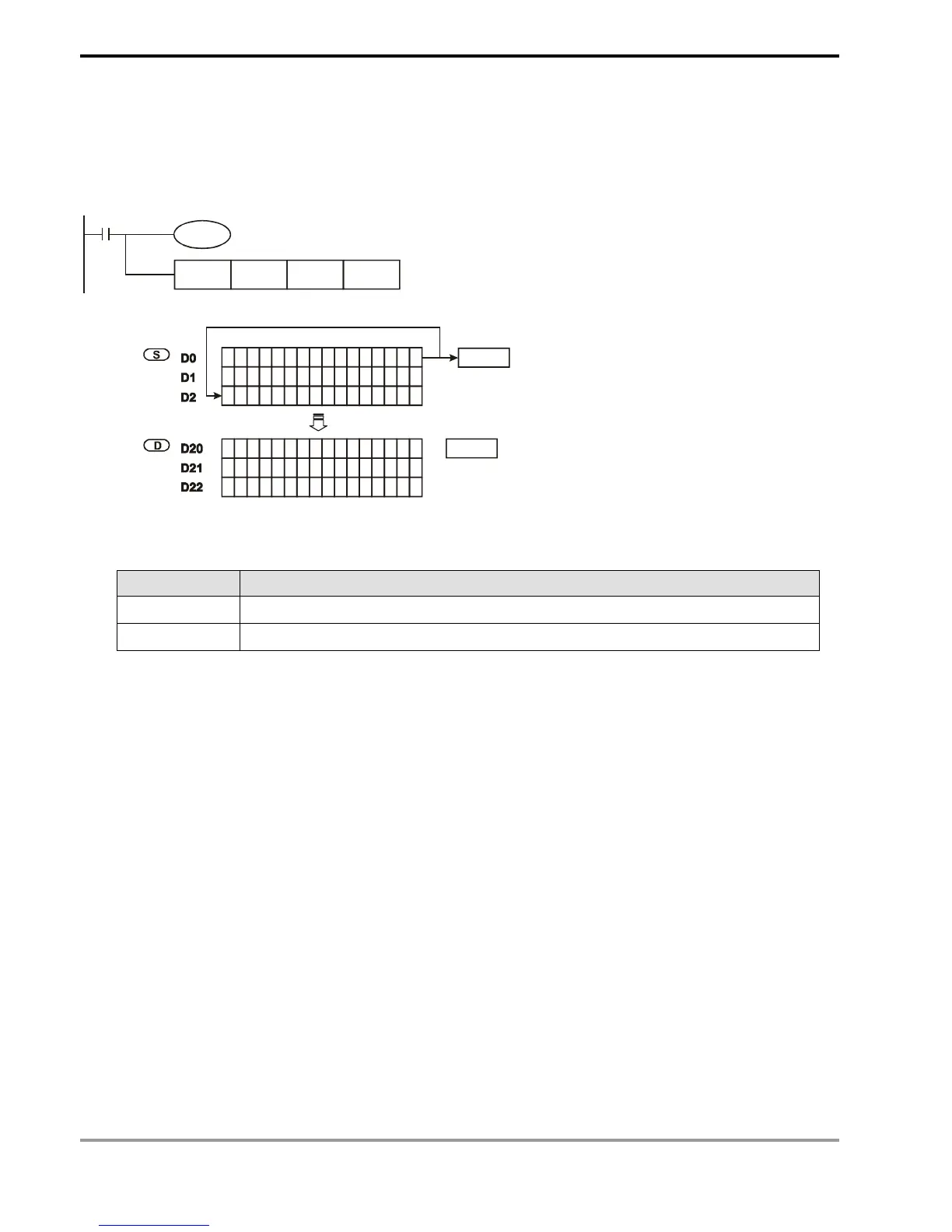

Program Example 2:
When X1 = On, M1097 = On, indicating a right matrix rotation is performed. The 16-bit registers D0 ~ D2 will perform
a right matrix rotation and the result will be stored in the matrix of the 16-bit registers D20 ~ D22. The carry flag
M1095 will be “0”.
X1
MBRP D0 D20 K3
M1097
Before
Execution
After right
rotation
M1097=0
1
b0
0101010101
0
101
1010101010101010
101101010101010
b15
0
0
10101010101
0
101
1010101010101010
1011010101010100
0
0
M1095
M1095
MBR
Remarks:
Flag explanations:
Flags Function
M1095 Matrix rotation/displacement/output carry flag.
M1097 Matrix rotation/displacement direction flag.

Delta DVP-PLC Specifications

General

Manufacturer	Delta Electronics
Model	DVP-PLC
Category	Controller
Humidity	5% to 95% RH, non-condensing
Programming Language	Ladder Diagram (LD), Instruction List (IL), Sequential Function Chart (SFC)
CPU Type	Various, depending on the specific model within the DVP series (e.g., ES2, EX2, SX2, SA2, EH3, etc.)
Operating Temperature	Typically 0°C to 55°C (32°F to 131°F)
Storage Temperature	Typically -25°C to 70°C (-13°F to 158°F)
